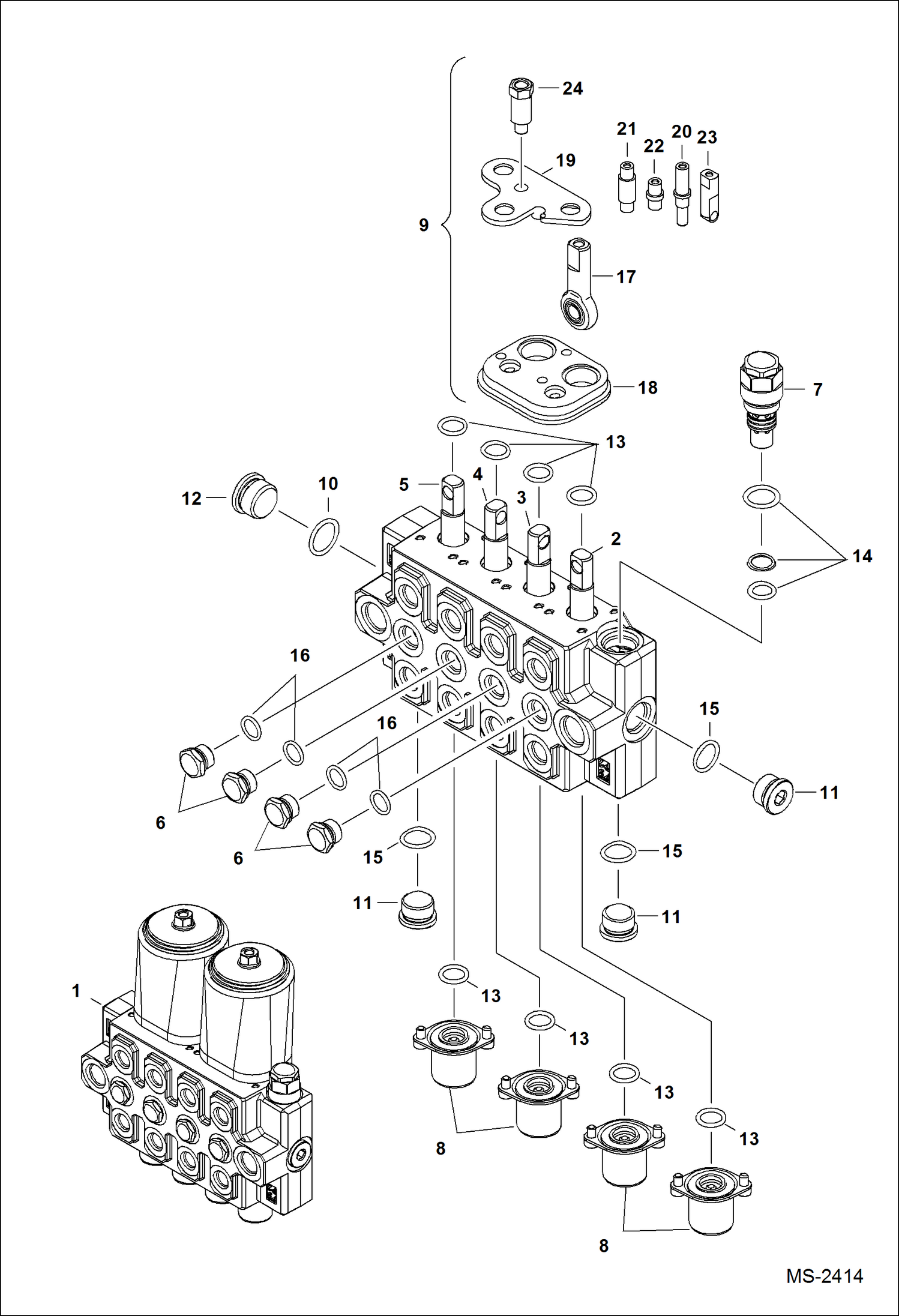

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (406 631010001 & Above) (506 631110001 & Above) 406/506 BACKHOE

1

7138760

VALVE ASSY Ref. 2-17 - Nimco

2

SPOOL NSS - Order Ref. 1 - Was 6693465 - A

3

SPOOL NSS - Order Ref. 1 - Was 6693466 - A

4

SPOOL NSS - boom - Order Ref. 1 - Was 6693467 - A

5

SPOOL NSS - swing - Order Ref. 1 - Was 6693468

6

6693469

CHECK VALVE load holding

7

6693470

RELIEF VALVE main relief

8

6693472

CONTROL

9

6693473

JOYSTICK R.H.

9

6693474

JOYSTICK L.H.

10

79K10

O RING 10

11

6693278

PLUG

12

6693276

PLUG

13

6693475

O-RING

14

6693292

SEAL KIT

15

79K8

O RING 10

16

79K6

O RING 10

17

6684296

SWIVEL

18

FLANGE NSS

19

PLATE MOUNTING NSS

20

PIN NSS

21

CONNECTOR NSS

22

CONNECTOR NSS

23

CONNECTOR NSS

24

MOUNT NSS
