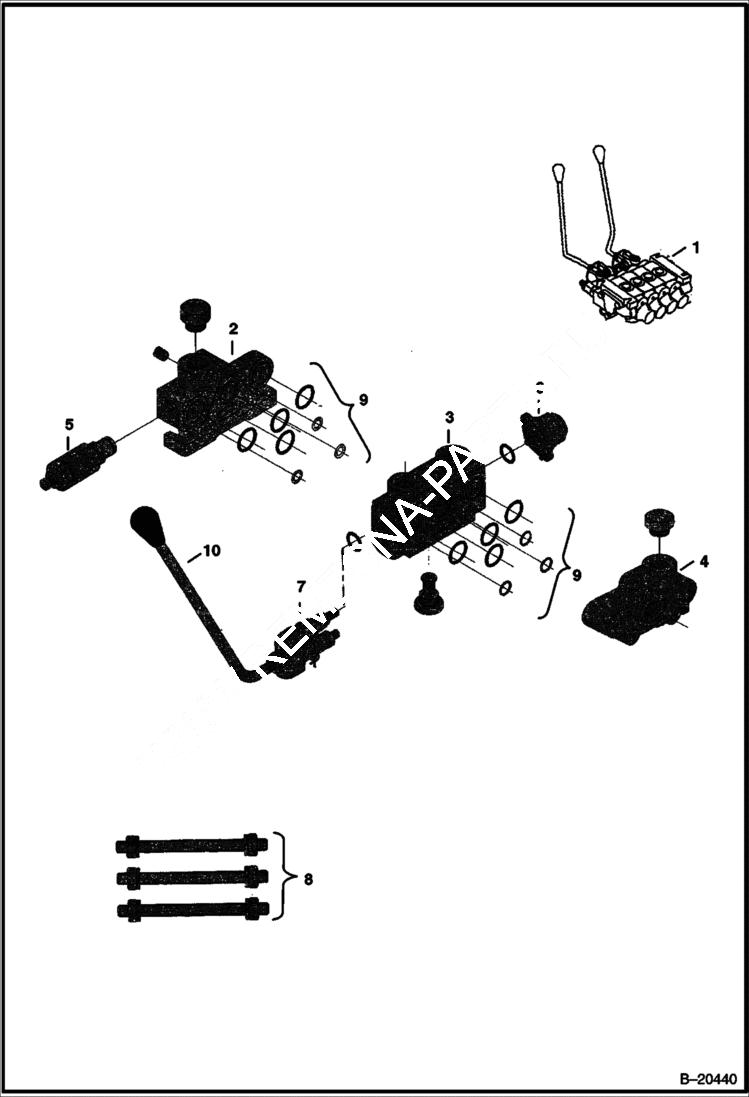

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (406 631000101 - 10000) (506 631100101 - 10000) 406/506 BACKHOE

1

VALVE ASSY See BTI390 NLA - Ref. 2-10 - Was 6678154 - A

2

INLET SECTION See BTI390 NLA - Was 6679584 - A

3

WORK SECTION See BTI390 NLA - Was 6679585 - A

4

OUTLET SECTION See BTI390 NLA - Was 6679589 - A

5

RELIEF VALVE See BTI390 NLA - Was 6679591 - A

6

KIT See BTI390 NLA - Spring centering - Was 6679587 - A

7

JOYSTICK ASSY See BTI390 NLA

8

TIE ROD See BTI390 NLA - set of 3 - Was 6679590 - A

9

SEAL KIT NLA - Was 6679586 - A

10

HANDLE ASSY See BTI390 NLA - RH handle W/rubber tip - Was 6679736 - A

10

HANDLE ASSY See BTI390 NLA - LH handle W/rubber tip - Was 6679737 - A
