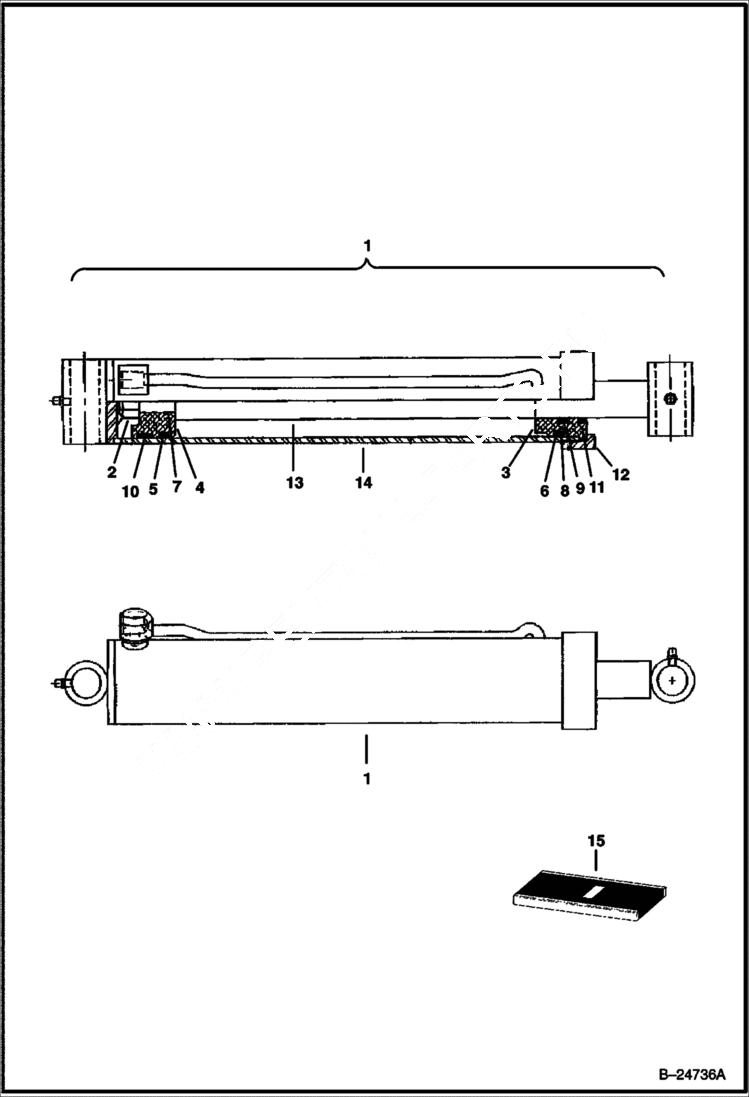

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (406 6310 & Above) (506 6311 & Above) 406/506 BACKHOE

1

6686071

CYLINDER ASSY W/Ref. 2-14

2

6673617

NUT Was 6684456 - A

3

6687031

HEAD

4

6687032

PISTON

5

SEAL NSS - Order Ref. 15

6

O-RING NSS - Order Ref. 15

7

O-RING NSS - Order Ref. 15

8

BACKUP RING NSS - Order Ref. 15

9

ROD SEAL NSS - Order Ref. 15

10

WEAR RING NSS - Order Ref. 15

11

DUST SEAL NSS - Order Ref. 15

12

6687033

COLLAR

13

6687037

SHAFT

14

6687038

BARREL

15

6687036

SEAL KIT W/Ref 5-11
