Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (406 6310 & Below) (506 6311 & Below) 406/506 BACKHOE

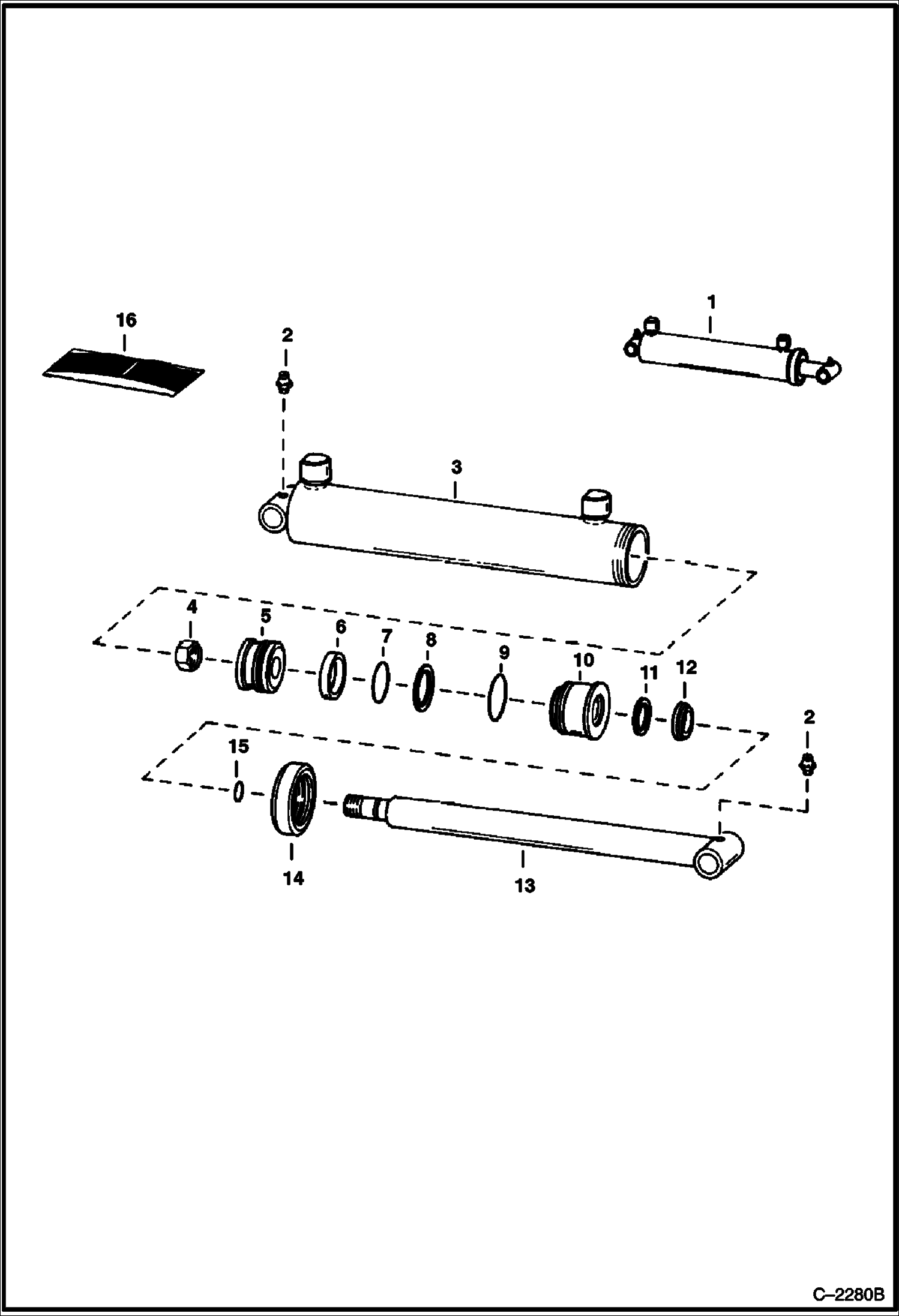

Схема запчастей Bobcat BACKHOE - BACKHOE (Bucket Cylinder) (406 6310 & Below) (506 6311 & Below) 406/506 BACKHOE

Артикул

Название

Примечание

Количество

1

6554904

CYLINDER

2

10H35

FITTING, GREASE 10

3

CASE NLA

4

NUT NLA - buy locally

5

6513454

PISTON

6

RING NSS - wear

7

SEAL NSS - piston

8

SEAL NSS - slipper

9

SEAL NSS - gland static

10

6513456

GLAND

11

SEAL NSS - rod

12

WIPER NSS - rod

13

6513459

ROD

14

6513461

COLLAR

15

SEAL NSS - rod static

16

6554899

SEAL KIT W/Ref. 6-9, 11, 12 & 15

Выбрано товаров: 16
