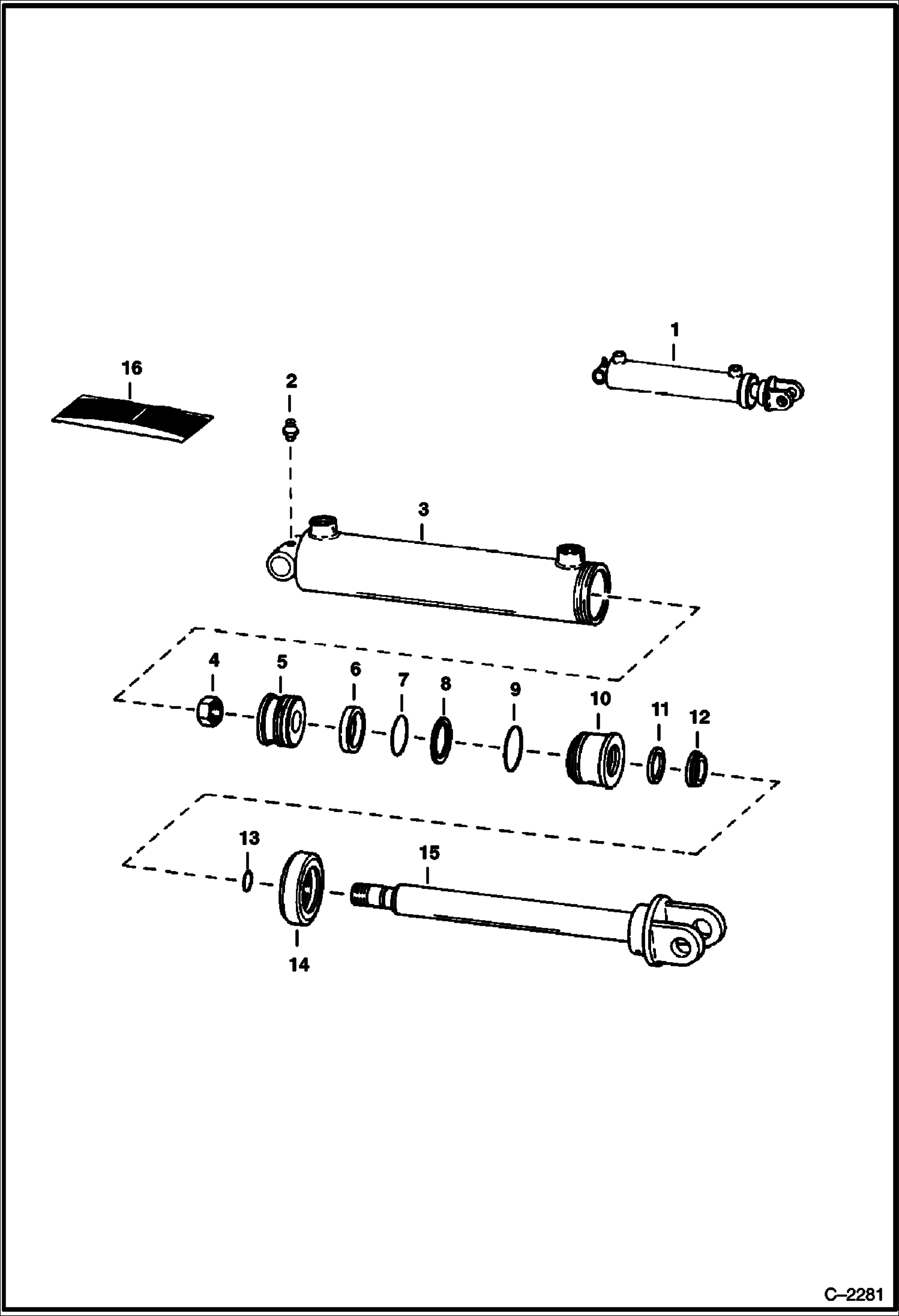

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (406 6310 & Below) (506 6311 & Below) 406/506 BACKHOE

1

6554890

CYLINDER

2

10H35

FITTING, GREASE 10

3

CASE NLA

4

NUT NLA - buy locally

5

PISTON NLA - Was 6513453 - A

6

RING NSS - wear

7

SEAL NSS - piston

8

SEAL NSS - slipper

9

SEAL NSS - gland static

10

6513455

GLAND

11

SEAL NSS - rod

12

WIPER NSS - rod

13

SEAL NSS - rod static

14

6513460

COLLAR

15

6513457

ROD

16

6641366

SEAL KIT W/Ref. 6-9 & 11-13
