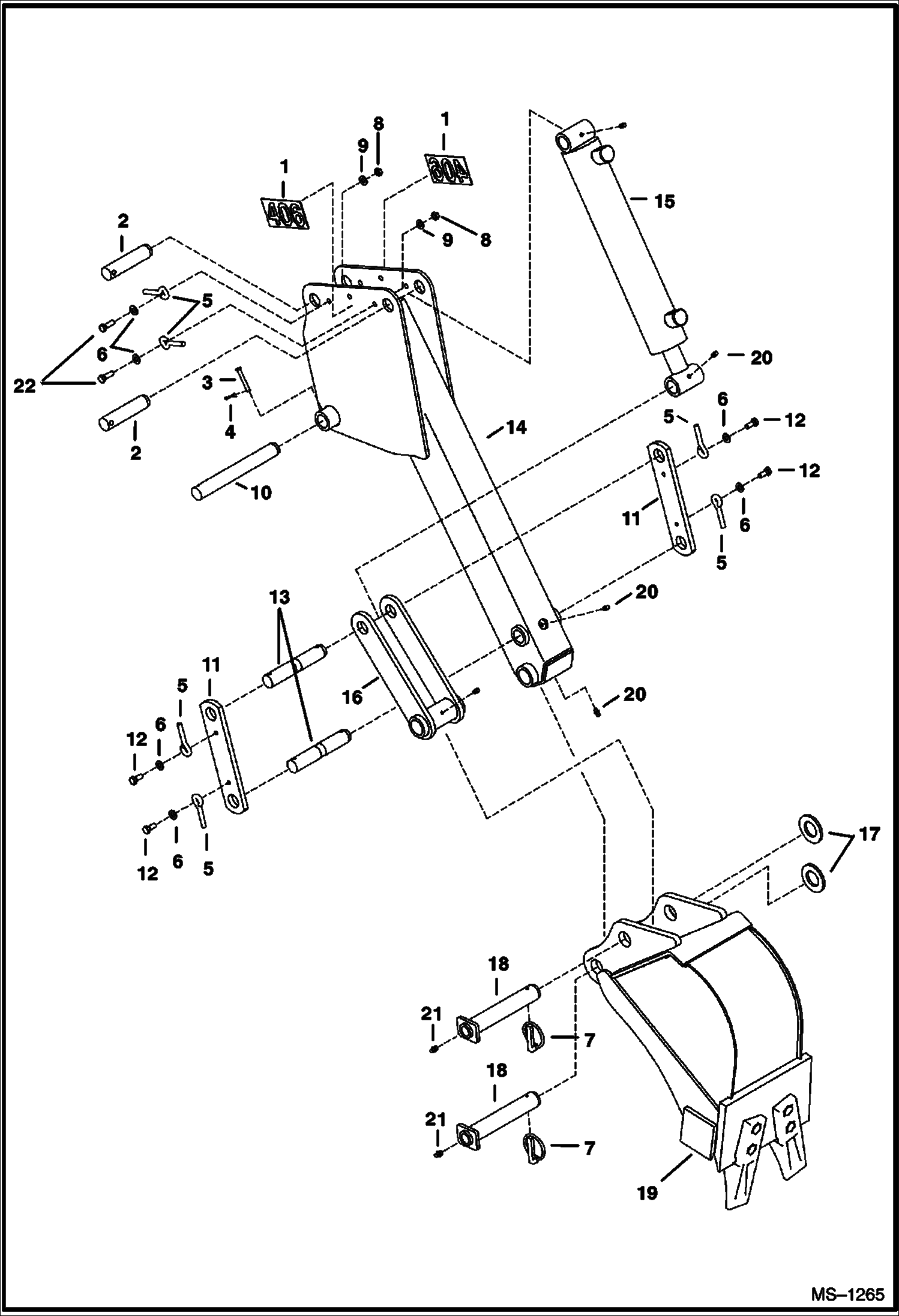

Запчасти Bobcat BACKHOE BACKHOE (Dipper Group) (406) (506) 406/506 BACKHOE

1

6906705

DECAL 406 (shown)

1

6906914

DECAL 506

2

6554902

PIN

3

6512353

CLEVIS PIN clevis

4

1F308

PIN, COTTER

5

6554414

PIN

6

25E15

WASHER

7

6560382

PIN, LOCK

8

61D5

NUT

9

4E5

WASHER

10

6594094

CLEVIS PIN

11

6554908

BAR

12

17C512

BOLT 5

13

6554906

PIN

14

6906590

DIPPER ASSY

15

CYLINDER See Illustration BACKHOE/ B24736A See Illustration BACKHOE/ C2280B bucket

16

6906698

LINKAGE

17

1EM270

WASHER

18

6539737

PIN, PIVOT

19

BUCKET See Illustration BACKHOE/ B20441

20

10H35

FITTING, GREASE 10

21

10H25

FITTING, GREASE 5

22

17C520

BOLT 5
