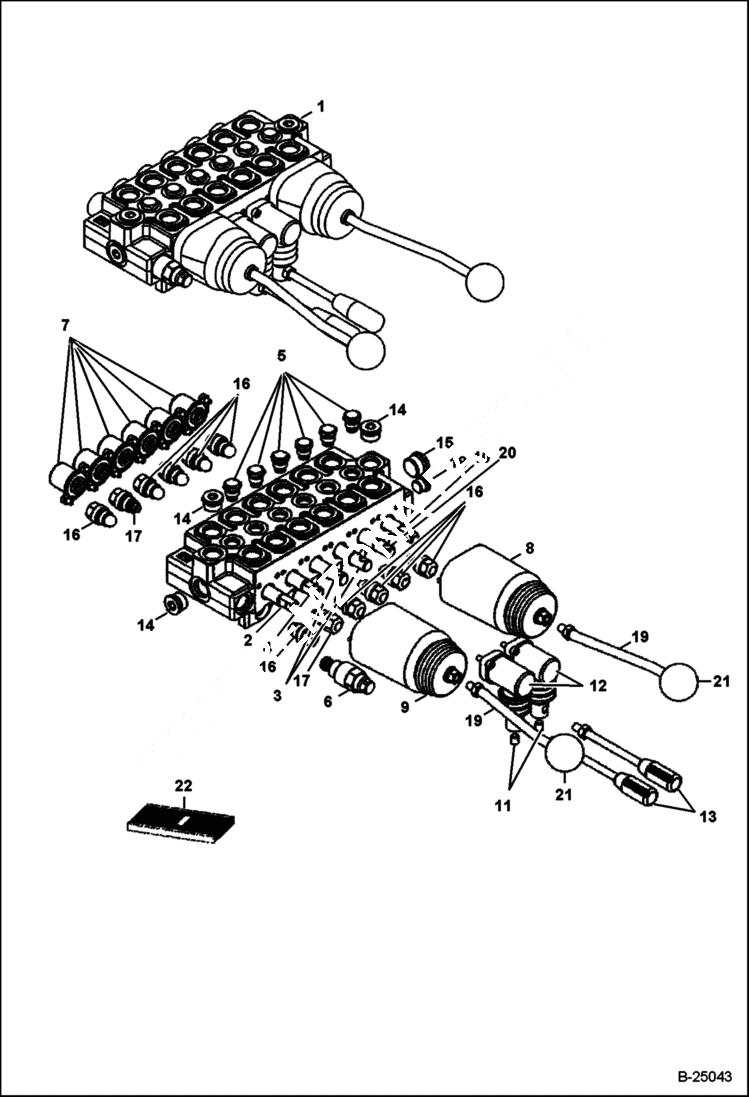

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (M06) M06 BACKHOE

1

6698069

VALVE W/Ref. 2-21 - Was 6686059 - A

2

SPOOL NSS - boom

3

SPOOL NSS - stabilizer

4

SPOOL NSS - swing

5

6688503

CHECK VALVE load holding

6

6688504

RELIEF VALVE main

7

6688505

BONNET spool control

8

6689669

JOYSTICK R.H. - Was 6688506 - D

8

7001422

BOOT, RUBBER

9

6689670

JOYSTICK L.H. - Was 6688507 - D

9

7001422

BOOT, RUBBER

10

SPOOL NSS - dipper

11

6688508

SET SCREW

12

6688509

LEVER control

13

6688510

LEVER

14

47K6

PLUG

15

47K7

PLUG

16

6688511

RELIEF VALVE port relief

17

6688512

RELIEF VALVE port relief anti-cav

18

47K5

PLUG

19

6688513

LEVER does not include Ref. 21 knob

20

SPOOL NSS - bucket

21

6690570

KNOB

22

6688638

SEAL KIT
