Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) (M06) M06 BACKHOE

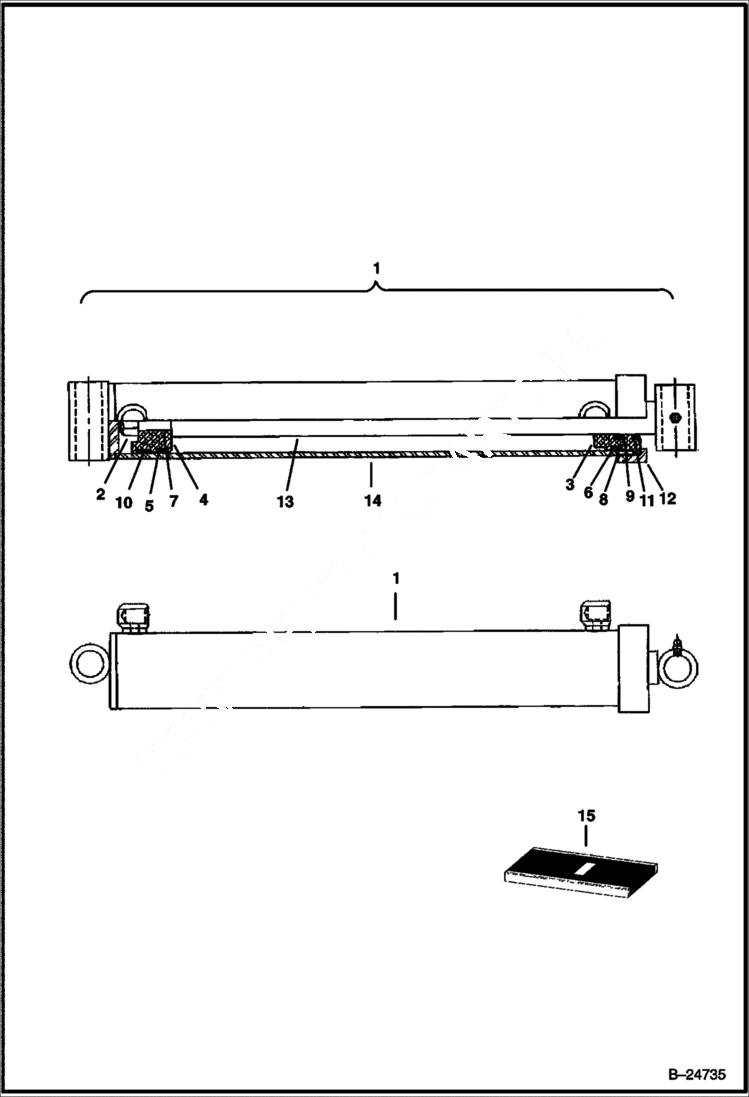

Схема запчастей Bobcat BACKHOE - BACKHOE (Boom Cylinder) (M06) M06 BACKHOE

Артикул

Название

Примечание

Количество

1

6686070

CYLINDER ASSY W/Ref. 2-14

2

6673617

NUT Was 6684456 - A

3

6687031

HEAD

4

6687032

PISTON

5

SEAL NSS - Order Ref. 15

6

O-RING NSS - Order Ref. 15

7

O-RING NSS - Order Ref. 15

8

BACKUP RING NSS - Order Ref. 15

9

ROD SEAL NSS - Order Ref. 15

10

WEAR RING NSS - Order Ref. 15

11

DUST SEAL NSS - Order Ref. 15

12

6687033

COLLAR

13

6687034

SHAFT

14

6687035

BARREL

15

6687036

SEAL KIT W/Ref. 5-11

Выбрано товаров: 15
