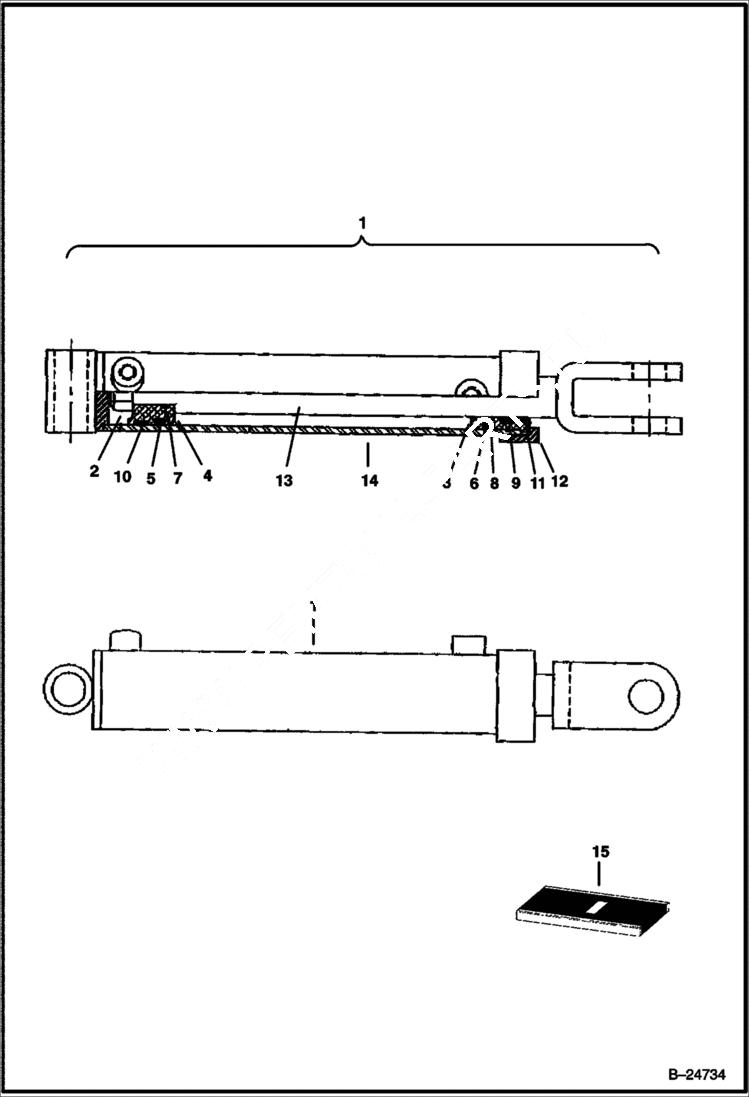

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (M06) M06 BACKHOE

1

6686069

CYLINDER ASSY W/Ref. 2-14

2

6673617

NUT Was 6684456 - A

3

6687025

HEAD

4

6687026

PISTON

5

SEAL NSS - Order Ref. 15

6

O-RING NSS - Order Ref. 15

7

O-RING NSS - Order Ref. 15

8

BACKUP RING NSS - Order Ref. 15

9

SEAL NSS - Order Ref. 15

10

WEAR RING NSS - Order Ref. 15

11

DUST SEAL NSS - Order Ref. 15

12

6687027

COLLAR

13

6687028

SHAFT

14

6687029

BARREL

15

6687030

SEAL KIT W/Ref. 5-11
