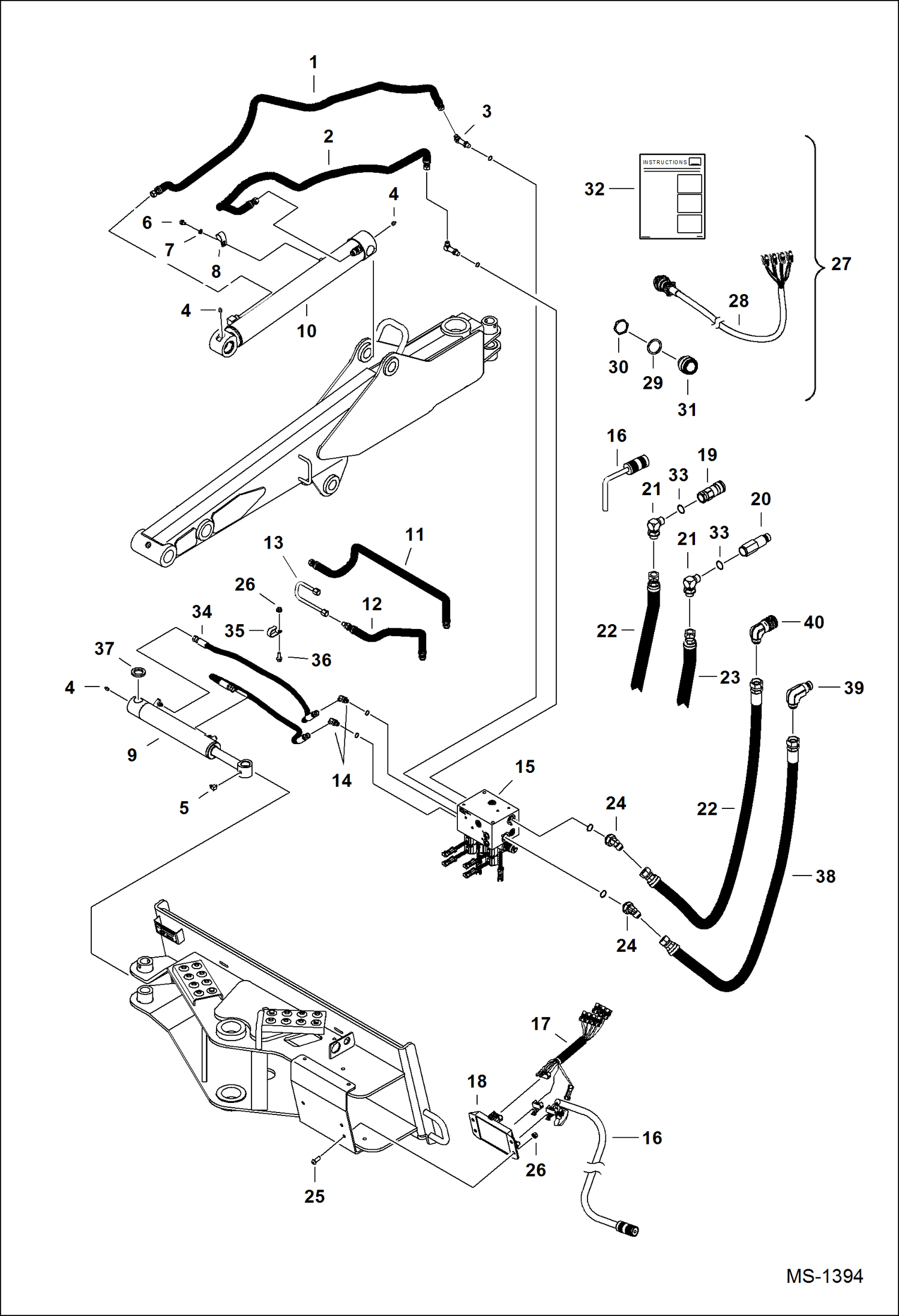

Запчасти Bobcat BACKHOE BOB-TACH MOUNTED BACKHOE (Hydraulic & Electrical) BOBTACH BACKHOE

1

6906935

HOSE

2

6906936

HOSE

3

6812815

FITTING Was 6715188 - A

4

10H25

FITTING, GREASE 5

5

12H15

FITTING, GREASE 5 Was 12H000025B - B

6

35C508

BOLT

7

4E5

WASHER

8

30H46

CLIP

9

CYLINDER See Illustration BOB-TACH MOUNTED BACKHOE/ PE3041 See Illustration BOB-TACH MOUNTED BACKHOE/ B18269 SWING

10

CYLINDER See Illustration BOB-TACH MOUNTED BACKHOE/ B14389 BUCKET

11

6906934

HOSE Use on earlier models

12

6906933

HOSE Use on earlier models

13

6906907

TUBE Use on earlier models

14

FITTING NLA - Was 18KN00005B - A

14

18KB0606

FITTING, HYD ELBOW

15

VALVE See Illustration BOB-TACH MOUNTED BACKHOE/ MS1381

16

6725385

HARNESS 7-pin - to loader

17

6906939

HARNESS controller to valve

18

6678675

CONTROLLER, ACD

19

6672960

COUPLER, FF FEMALE straight

20

6674688

COUPLER, FF MALE straight

21

ELBOW NLA - tapered boss face - Was 17KN00008B - A

21

17KB1212

FITTING, HYD ELBOW flat boss face - Use with straight couplers

22

6906938

HOSE 1346 mm (53'') long - .875'' thread & 1.063'' thread - Use with straight couplers

23

6958998

HOSE 1422 mm (56'') long - .87'' thread & 1.063'' thread - Use with straight coupler or 90 degree coupler - Was 6906937 - A

24

ELBOW NLA - tapered boss face - Was 18KN00007B - A

24

18KB1010

FITTING, HYD ELBOW flat boss face - Was 19KB1010 - B,D

25

25G616

SCREW

26

55D6

NUT

27

6725383

KIT 14-pin harness conversion - converts 7-pin Bob-Tach backhoe to be used with 14-pin loader - Ref. 28-32

28

6719697

HARNESS 14-pin conversion

29

6664037

WASHER

30

6664036

NUT

31

6673680

RECEPTACLE, TWIST-LOC

32

6901005

INSTRUCTIONS

33

79K12

O RING 10

34

7134170

HOSE

35

31H38

CLAMP

36

35C616

BOLT 5

37

7134561

WASHER

38

7169775

HOSE, HYD 1295 mm (51'') long - .875 thread & 1.063 thread - Use 90 degree couplers

39

7168432

COUPLER, FF MALE 90 degree

40

7168433

COUPLER, FF FEMALE 90 degree
