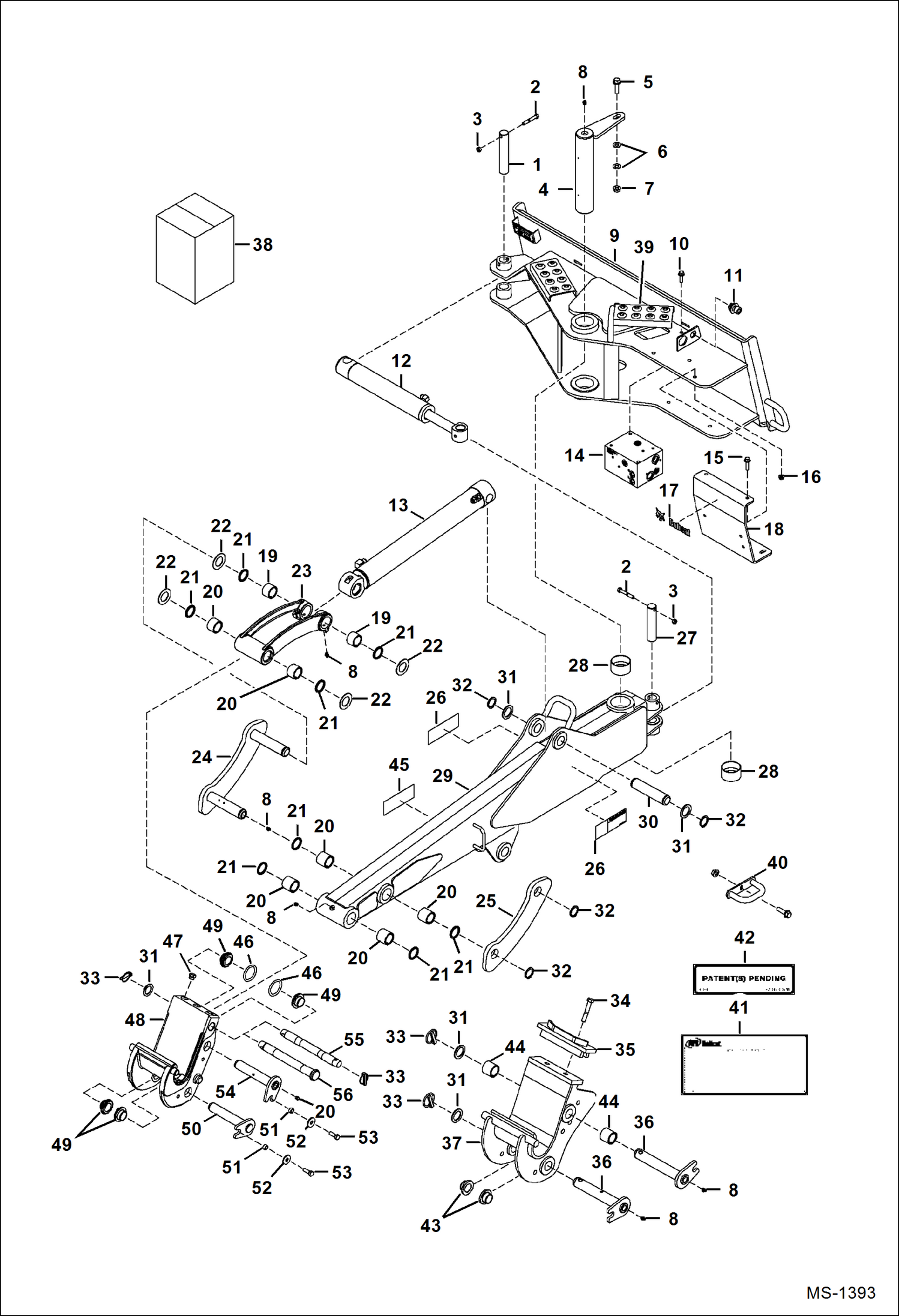

Запчасти Bobcat BACKHOE BOB-TACH MOUNTED BACKHOE (Frame & Boom) BOBTACH BACKHOE

1

6906604

PIN

2

17C640

BOLT 5

3

59D6

NUT

4

6906760

PIN

5

35C828

BOLT

6

25E21

WASHER 5

7

55D8

NUT

8

10H25

FITTING, GREASE 5

9

6906742

BOBTACH

10

35C620

BOLT 5

11

6675128

CAP

12

CYLINDER See Illustration BOB-TACH MOUNTED BACKHOE/ B18269 SWING

13

CYLINDER See Illustration BOB-TACH MOUNTED BACKHOE/ B14389 BUCKET

14

VALVE See Illustration BOB-TACH MOUNTED BACKHOE/ MS1381

15

35C624

BOLT

16

55D6

NUT

17

7109473

DECAL, LOGO BOBCAT AND HEAD Was 6727324 - B

18

6906901

GUARD

19

6803309

BUSHING, PRESS FIT

20

6803213

BUSHING, PRESS FIT

21

6652915

SEAL, OIL

22

6535313

SHIM

23

6805374

LINK W/Ref. 8 & 19-21

24

7173235

LINK, GUIDE W/A Was 7127600 - A

25

7173234

LINK, GUIDE Was 7129624 - A

26

6958217

DECAL warning

27

6906765

PIN

28

6906750

BUSHING

29

6906736

BOOM W/Ref. 20 & 28

30

6595660

PIN

31

6534111

WASHER

32

6534154

RING

33

6560382

PIN, LOCK

34

BOLT NLA - Was 35C000848B - A

35

6804485

PLATE

36

6806971

PIN, PIVOT X-CHANGE

37

6812423

X-CHANGE X-Change

38

6958159AR

TRANSLATION KIT

38

6958159BR

TRANSLATION KIT

38

6958234AR

DECAL KIT

38

6958234BR

DECAL KIT

38

6958234JP

DECAL KIT

39

6905990

STEP

40

6706160

GUIDE

41

DECAL NLA - patent - Was 6557224 - C

42

DECAL PATENT PEND NLA - Was 6810666 - C

43

6813304

BUSHING

44

6802889

BUSHING

45

6803760

DECAL X-Change

46

6811260

O-RING

47

24K6

FITTING

48

6815102

X-CHANGE

49

7102891

BUSHING

50

7130245

PIN

51

6503451

SPACER

52

17EM120

WASHER

53

1CM1235

BOLT

54

7130247

PIN

55

7137214

PIN doesn't use Ref. 31

56

PIN NLA - Use W/Ref. 31 - Order 7137214 pin & (2) of 6560382 lock rings - Was 6734239 - A
