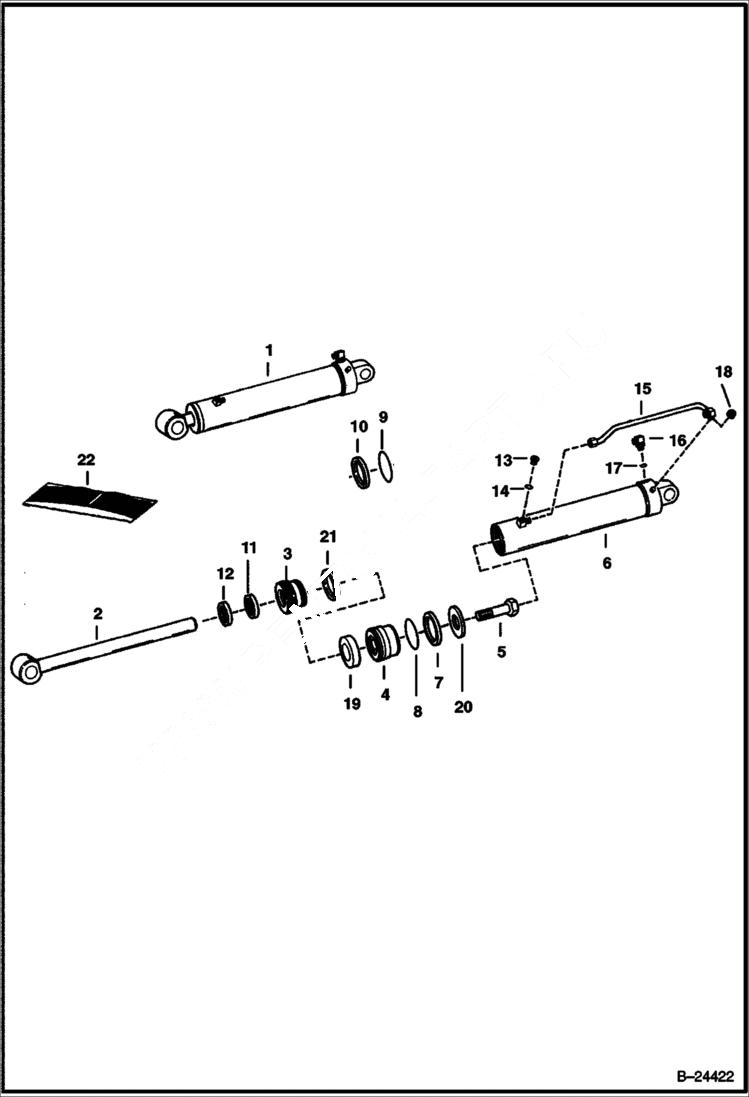

Запчасти Bobcat BACKHOE CYLINDER DIPPER 937S 937S BACKHOE

1

6529696

CYLINDER W/Ref. 2-20

2

6529698

ROD

3

6593285

HEAD

4

6529703

PISTON

5

18C2044

BOLT

6

6594123

CASE

7

6593381

SEAL Was NSS - D

8

25K30308

O RING 10 Was NSS - D

9

58K340

O RING 10 Was NSS - D

10

73K340

BKUP RING Back-Up - Was NSS - D

11

6667328

SEAL Was 6538277 - A

12

6686998

WIPER, ROD CYL Was 1657090B - A

13

47K5

PLUG

14

79K6

O RING 10

15

6594193

TUBE

16

17K7

ELBOW

17

79K10

O RING 10

18

57D5

NUT

19

6529595

SPACER

20

28E20

WASHER

21

7008352

SEAL, QUAD

22

7196480

KIT, SEAL Ref. 7, 8, 11, 12 & 21 - Was 7137574 - A
