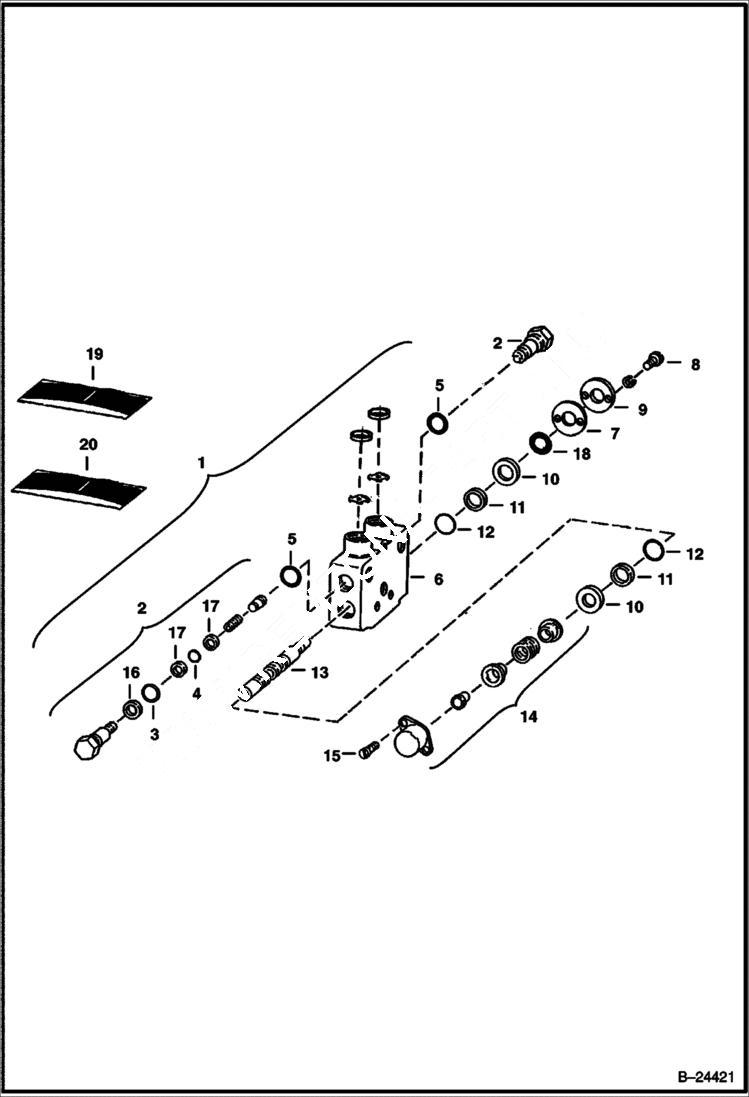

Запчасти Bobcat BACKHOE SECTION SWING 937S 937S BACKHOE

1

SECTION NLA - W/Ref. 2-18 - Was 6647684 - A

2

6647699

VALVE Relief & anti-cav. - Assy. W/Ref. 3, 4, 16 & 17

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

O-RING NSS - Order Ref. 19

5

O-RING NSS - Order Ref. 19

6

BODY NSS - Order Ref. 1

7

6647688

PLATE

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER

11

WASHER NSS - Back-up - Order Ref. 20

12

O-RING NSS - Order Ref. 20

13

SPOOL NSS - Order Ref. 1

14

6647691

BONNET Assembly - W/Ref. 15

15

6647692

SCREW

16

WASHER NSS - Back-up - Order Ref. 19

17

WASHER NSS - Back-up - Order Ref. 19

18

6647695

WIPER

19

6647693

SEAL KIT Ref. 3-5, 16 & 17 - For Ref. 2

20

6647694

SEAL KIT Ref. 11 & 12
