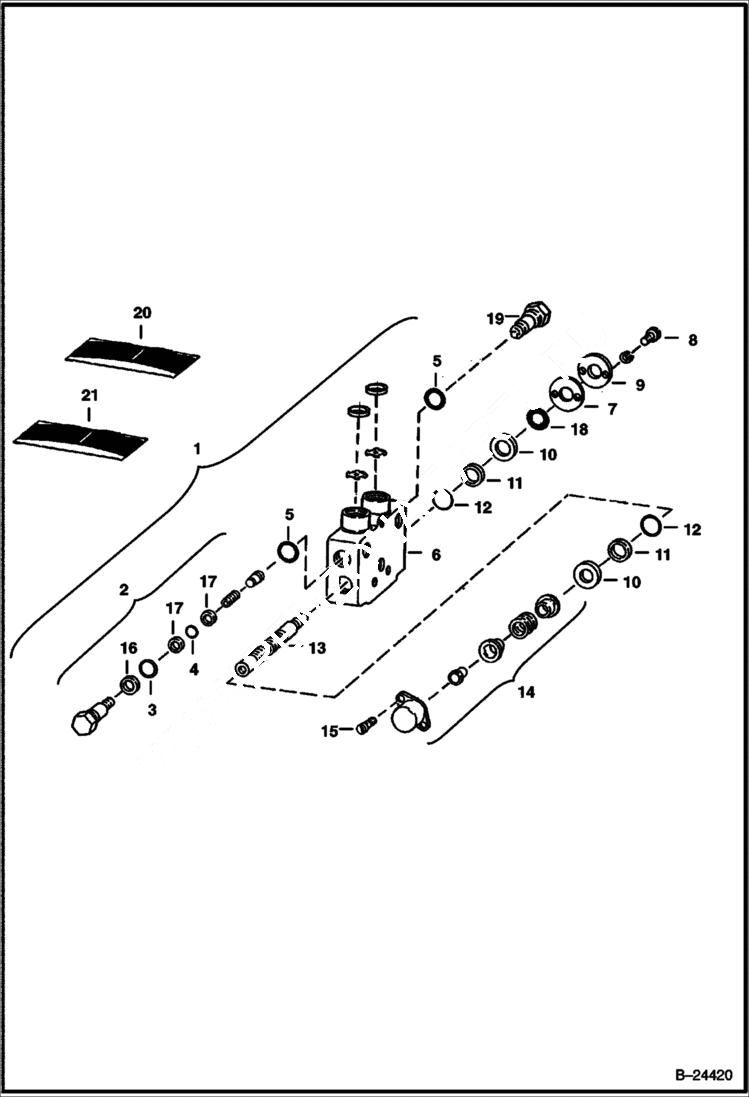

Запчасти Bobcat BACKHOE SECTION BUCKET 937S 937S BACKHOE

1

6647677

SECTION W/Ref. 2-19

2

6647696

VALVE Assy. - W/Ref. 3, 4, 16 & 17

3

O-RING NSS - Order Ref. 20

4

O-RING NSS - Order Ref. 20

5

O-RING NSS - Order Ref. 20

6

BODY NSS - Order Ref. 1

7

6647688

PLATE

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER

11

WASHER NSS - Back-Up - Order Ref. 21

12

O-RING NSS - Order Ref. 21

13

SPOOL NSS - Order Ref. 1

14

6647691

BONNET Assembly - W/Ref. 15

15

6647692

SCREW

16

WASHER NSS - Back-Up - Order Ref. 20

17

WASHER NSS - Back-Up - Order Ref. 20

18

6647695

WIPER

19

6647700

RELIEF VALVE

20

6647693

SEAL KIT W/Ref. 3-5, 16 & 17 - For Ref. 2 & 19

21

6647694

SEAL KIT W/Ref. 11 & 12
