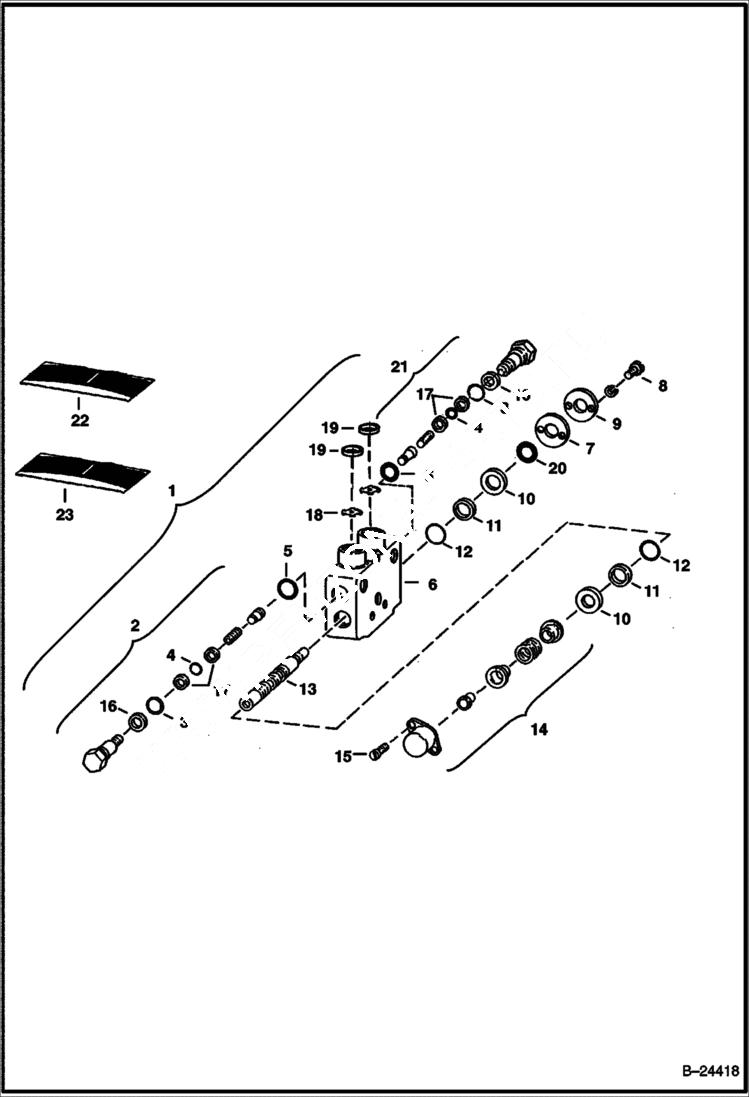

Запчасти Bobcat BACKHOE BOOM SECTION 937S Backhoe 937S BACKHOE

1

6647685

SECTION W/Ref. 2-21

2

6647687

RELIEF VALVE Assy. - W/Ref. 3, 4, 16 & 17

3

O-RING NSS - Order Ref. 22

4

O-RING NSS - Order Ref. 22

5

O-RING NSS - Order Ref. 22

6

BODY NSS - Order Ref. 1

7

6647688

PLATE

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER

11

WASHER NSS - Back-Up - Order Ref. 23

12

O-RING NSS - Order Ref. 23

13

SPOOL NSS - Order Ref. 1

14

6647691

BONNET Assembly - W/Ref. 15

15

6647692

SCREW

16

WASHER NSS - Back-Up - Order Ref. 22

17

WASHER NSS - Back-Up - Order Ref. 22

18

6647683

ORIFICE .203'' (5,15 mm)

19

6598690

SPRING

20

6647695

WIPER

21

6647696

VALVE Relief & Anti-Cav. - W/Ref. 3-5, 6 & 17

22

6647693

SEAL KIT Ref. 3-5, 16 & 17 - For Ref. 2 & 22

23

6647694

SEAL KIT W/Ref. 11 & 12
