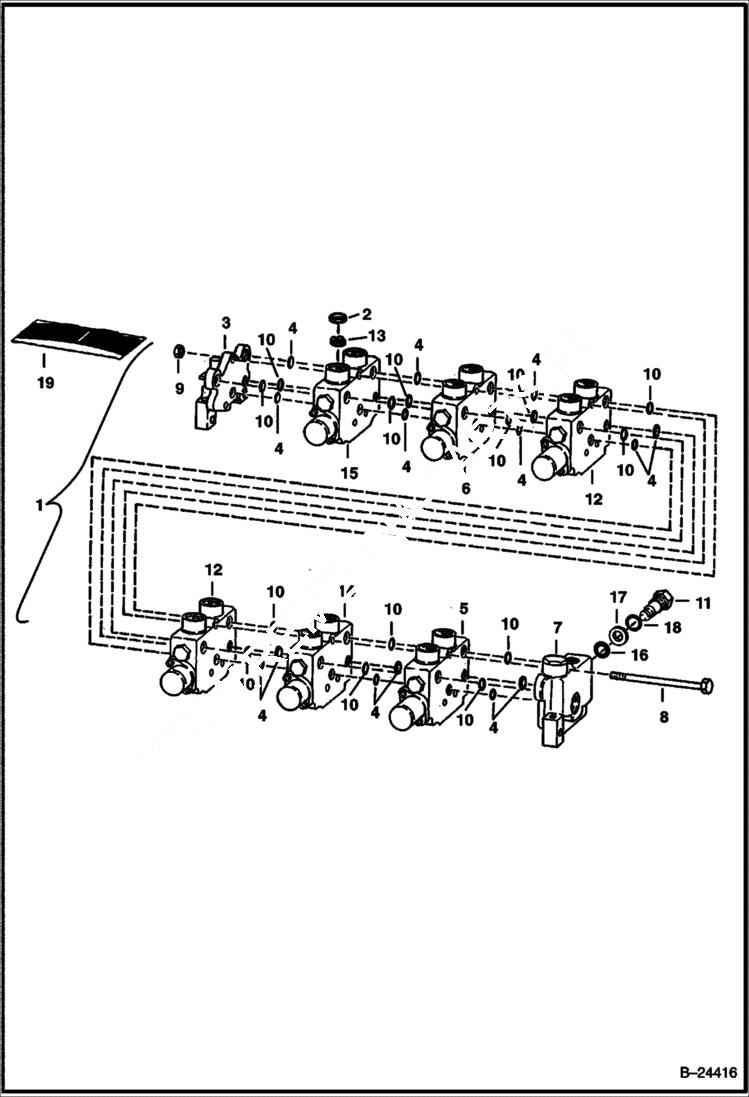

Запчасти Bobcat BACKHOE VALVE CONTROL 937S 937S BACKHOE

1

6652369

VALVE See Illustration MAIN FRAME - SOLENOID, HARNESS/ D1901 W/Ref. 2-18,

2

6598690

SPRING

3

6647674

END COVER

4

6647702

O-RING Was 6647675 - A

5

SECTION See Illustration SECTION DIPPER/ B24419 DIPPER

6

SECTION See Illustration SECTION BUCKET/ B24420 BUCKET

7

6647678

END COVER

8

6647679

KIT Bolts & nuts

9

NUT NSS - Order Ref. 8

10

6647680

O-RING

11

6647681

PLUG W/Ref. 17-19

12

SECTION See Illustration SECTION STABILIZER/ B24417 STABILIZER

13

6647683

ORIFICE .203'' (5,15 mm)

14

SECTION See Illustration SECTION SWING/ B24421 SWING

15

SECTION See Illustration BOOM SECTION/ B24418 BOOM

16

O-RING NSS - Order Ref. 19

17

WASHER NSS - Back-up - Order Ref. 19

18

O-RING NSS - Order Ref. 19

19

6647686

SEAL KIT W/Ref. 16-18
