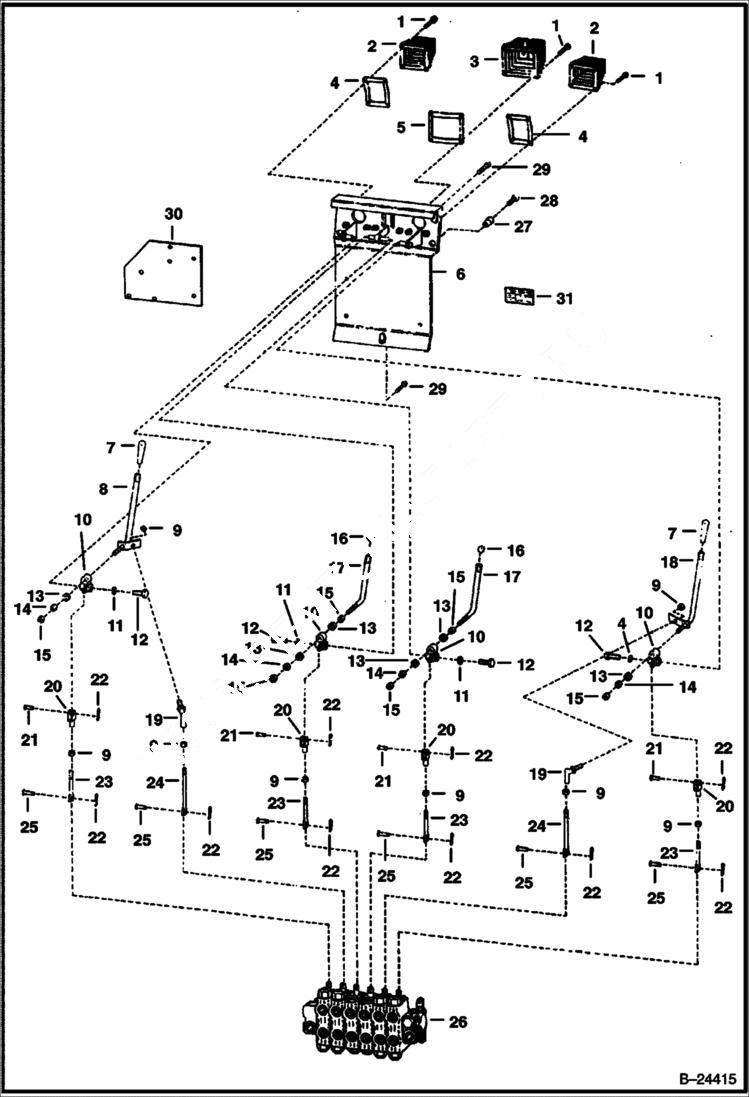

Запчасти Bobcat BACKHOE CONTROLS 937S 937S BACKHOE

1

24G1012

BOLT

2

BOOT NLA - Was 6585347 - A

3

6583700

BOOT

4

6585301

RETAINER

5

6583698

RETAINER

6

6586182

MOUNT

7

6510093

HANDLE GRIP

8

6586177

LEVER

9

8D6

NUT 5

10

6586081

PIVOT

11

25E16

WSHR

12

17C510

BOLT

13

25E21

WASHER 5

14

61D8

NUT 5

15

85D8

NUT, 5

16

6515888

KNOB

17

6584674

LEVER

18

6586174

LEVER

19

6599744

BALL JOINT

20

6564644

CLEVIS

21

227395

CLEVIS PIN

22

1F208

PIN

23

6586179

VALVE LINK

24

6586178

VALVE LINK

25

4F4051

PIN

26

VALVE See Illustration VALVE CONTROL/ B24416 Ref. 1

27

6586181

MOUNT

28

25G510

BOLT

29

17C612

BOLT 5

30

6532185

MOUNT

31

6532697

DECAL ISO Controls
