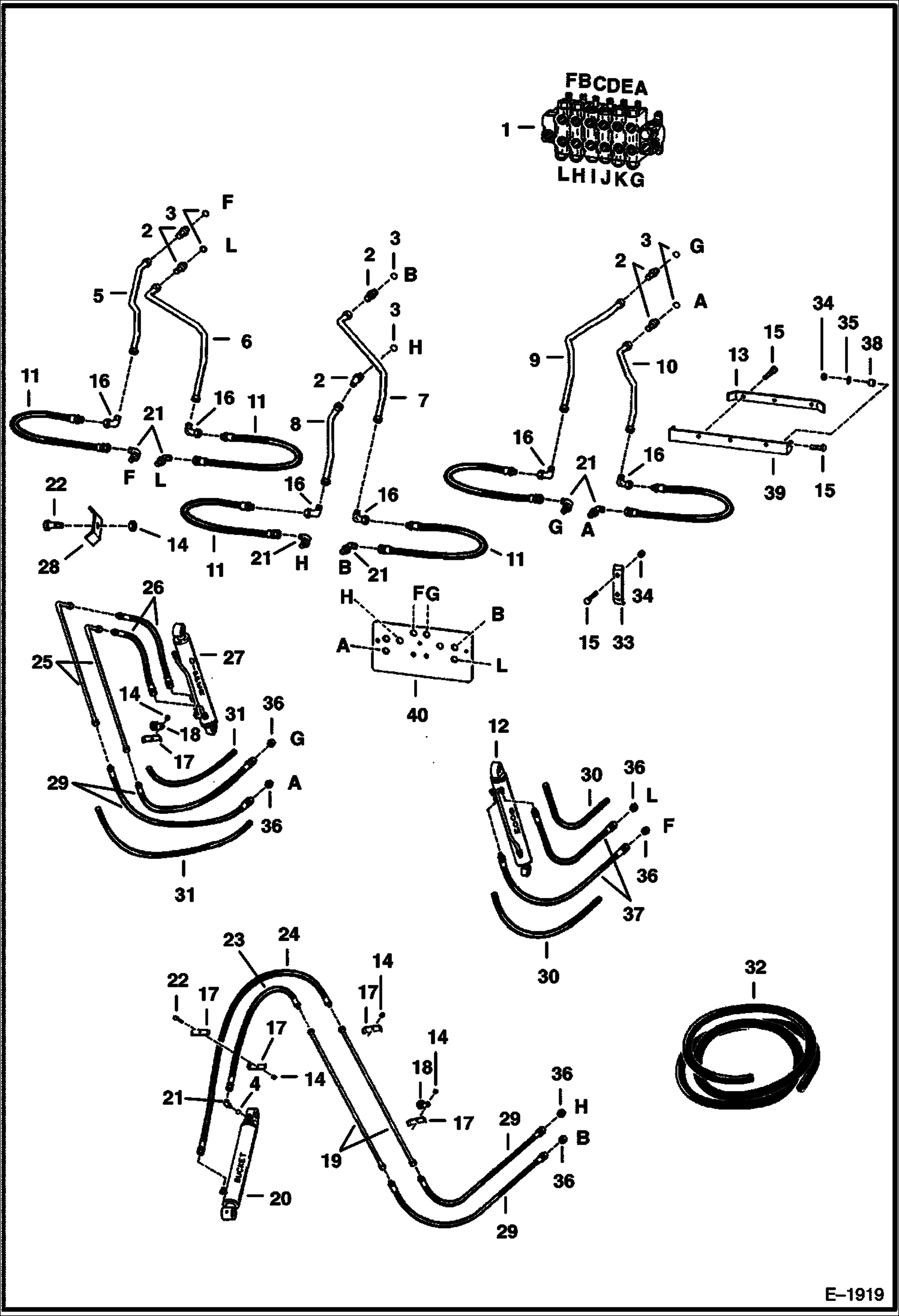

Запчасти Bobcat BACKHOE HYDRAULIC CIRCUITRY - BOOM 937S 937S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24416 Ref. 1

2

15K7

FITTING W/Ref. 3

3

79K10

O RING 10

4

17K7

ELBOW W/Ref. 3

5

6531377

TUBE

6

6531372

TUBE

7

6531376

TUBE

8

6531378

TUBE

9

6531379

TUBE

10

6531375

TUBE

11

6531889

HOSE

12

CYLINDER See Illustration CYLINDER BOOM/ C3043 BOOM

13

6532236

CLAMP

14

81D6

NUT

15

17C624

BOLT 5

16

11K7

ADAPTER

17

6502426

CLAMP

18

30H50

CLIP

19

6593871

TUBE

20

CYLINDER See Illustration CYLINDER BUCKET/ C2892 BUCKET

21

88F7

ELBOW W/Ref. 3

22

17C628

BOLT

23

6532260

HOSE

24

6532261

HOSE

25

6593870

TUBE

26

6532259

HOSE

27

CYLINDER See Illustration CYLINDER DIPPER/ B24422 DIPPER

28

6562266

CLAMP

29

6532220

HOSE

30

SHIELD NLA - 35'' long - Order Ref. 41

31

SHIELD NLA - 32'' long - Order Ref. 41

32

6650108

HOSE COVER Bulk - Sold Per Foot

33

6531577

CLAMP

34

85D6

NUT, 5

35

25E17

WASHER 5

36

86F7

LOCK NUT

37

6531890

HOSE

38

6531091

BUSHING

39

6531296

BRACKET

40

6531763

MOUNT
