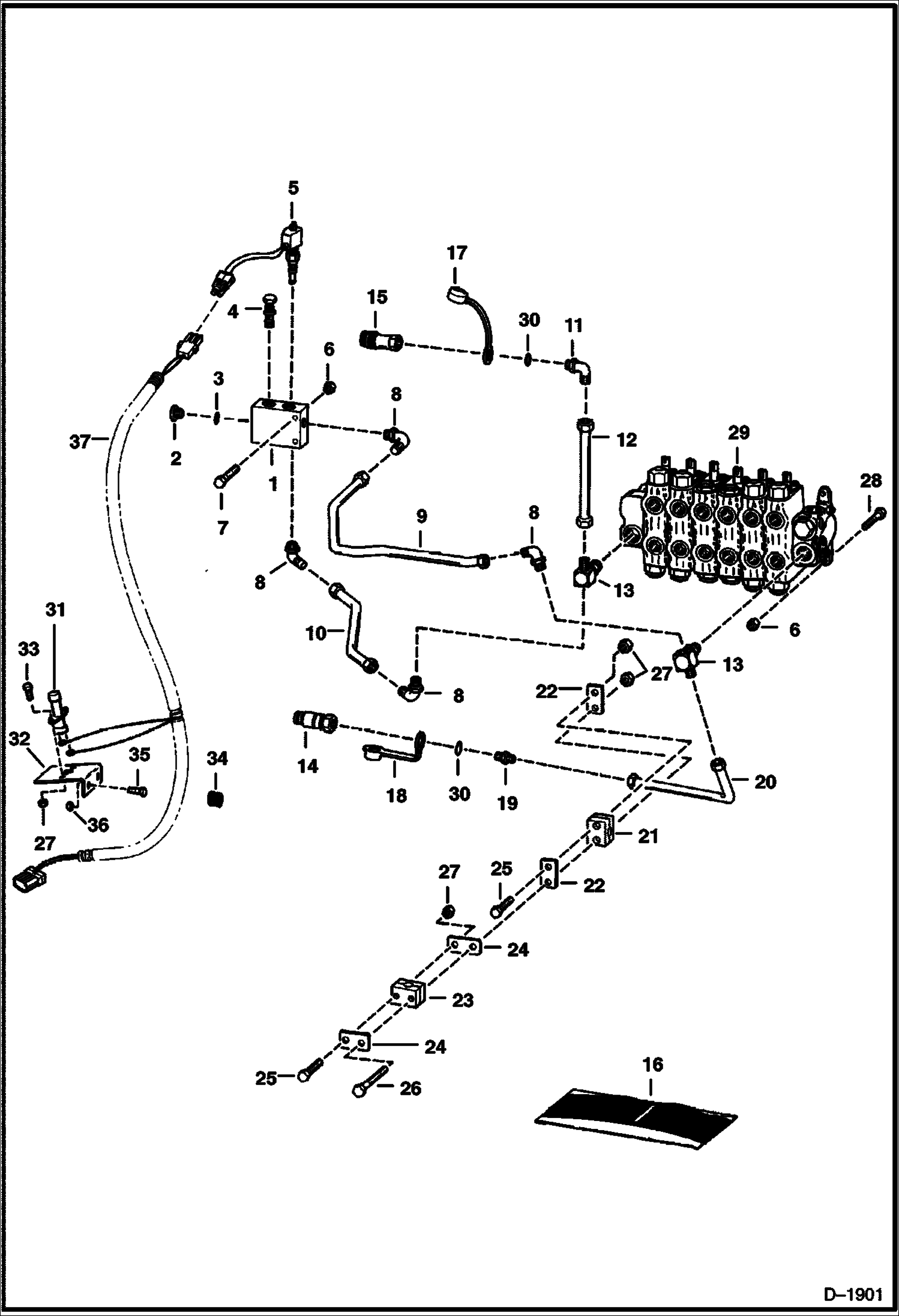

Запчасти Bobcat BACKHOE MAIN FRAME - SOLENOID, HARNESS 937S 937S BACKHOE

1

6531749

PORT BLOCK

2

47K3

PLUG W/Ref. 3

3

79K4

O RING 10

4

6649943

CHECK VALVE

5

6646572

SOLENOID

6

85D5

NUT 5

7

17C532

BOLT 5

8

17K3

ELBOW

9

6532225

TUBE

10

6532224

TUBE

11

17K8

FITTING

12

6532131

TUBE

13

6532235

ELBOW

14

6641358

COUPLER Male

15

6641359

COUPLER Female

16

6648561

SEAL KIT For Ref. 14 & 15

17

6645232

DUST COVER

18

6645231

DUST COVER

19

15K8

FITTING W/Ref. 18

20

6532130

TUBE

21

6647629

CLAMP

22

6647631

CLAMP

23

6647628

CLAMP

24

6647630

CLAMP

25

17C432

BOLT

26

17C456

BOLT

27

61D4

NUT 5

28

17C544

BOLT

29

VALVE See Illustration VALVE CONTROL/ B24416 Ref. 1

30

79K12

O RING 10

31

2533656

SWITCH

32

6532215

BRACKET

33

17C412

BOLT 5

34

6557493

GROMMET

35

17C616

BOLT 5

36

85D6

NUT, 5

37

6532189

HARNESS
