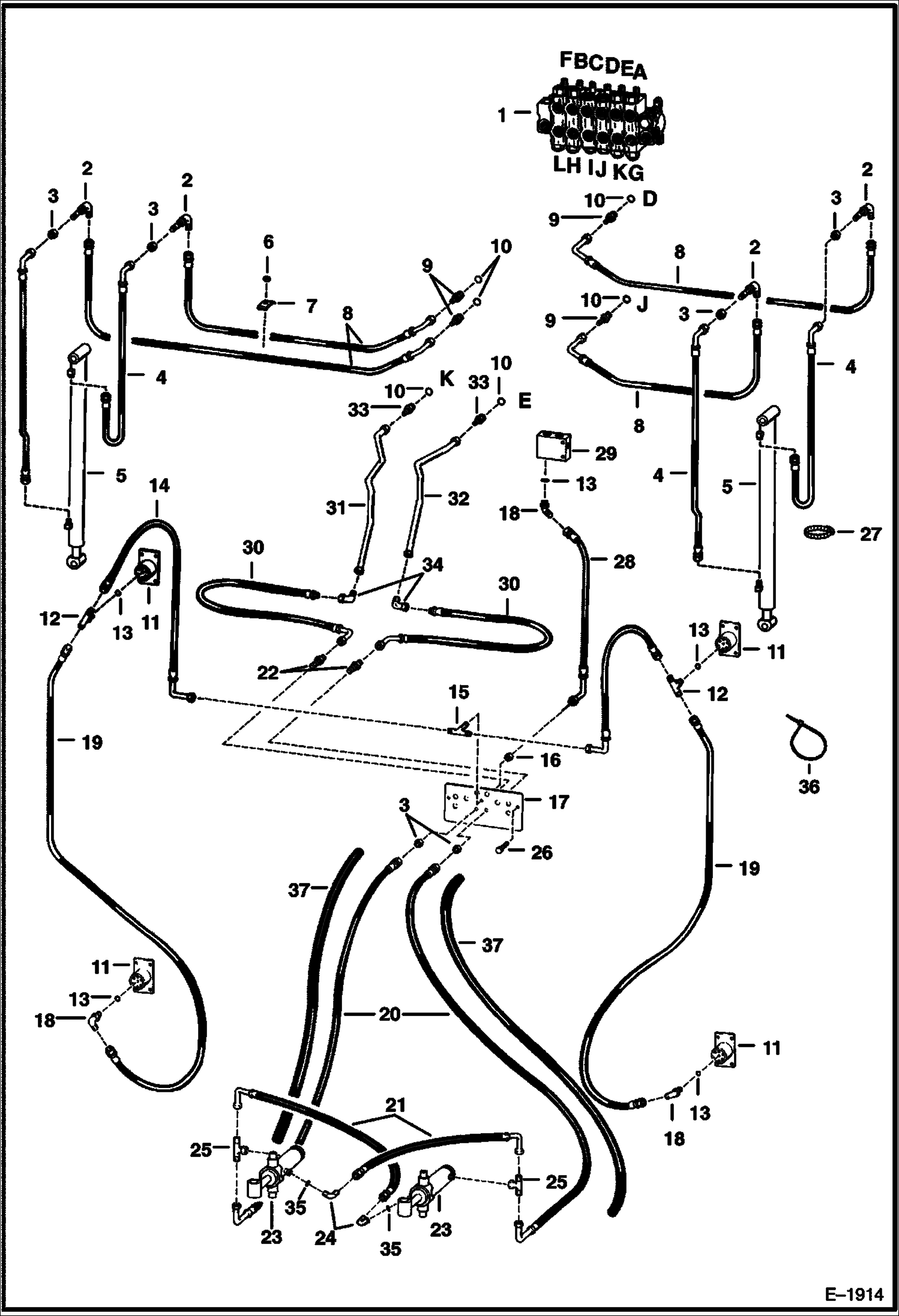

Запчасти Bobcat BACKHOE HYDRAULICS MAIN FRAME 937S 937S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24416 Ref. 1

2

88F5

ELBOW

3

86F5

NUT

4

6532126

HOSE

5

CYLINDER See Illustration CYLINDER STABILIZER/ C3094 STABILIZER

6

85D6

NUT, 5

7

6502426

CLAMP

8

6531888

HOSE

9

731795

CONNECTR W/Ref. 10

10

79K10

O RING 10

11

CYLINDER See Illustration CYLINDER LOCK/ C3099 LOCK

12

19K3

FITTING W/Ref. 13

13

79K4

O RING 10

14

6532219

HOSE

15

90F3

TEE

16

86F3

LOCKNUT

17

6531763

MOUNT

18

17K3

ELBOW W/Ref. 13

19

6530858

HOSE

20

6531893

HOSE

21

6533363

HOSE

22

45K5

FITTING

23

CYLINDER See Illustration CYLINDER SWING/ C3095 SWING

24

17K5

ELBOW W/Ref. 35

25

14K5

TEE

25

17KB0606

FITTING Was 17KN00005B - A

25

99K6

O RING boss end - Was 98K6 - A

25

96K6

O-RING Fare End

26

17C616

BOLT 5

27

42H40

HOSECLAM5

28

6532218

HOSE

29

6531749

PORT BLOCK

30

6531891

HOSE

31

6531374

TUBE

32

6531373

TUBE

33

731794

CONNECTR W/Ref. 10

34

11K6

UNION

35

79K6

O RING 10

36

6610510

TIE Was 1715312B - A

37

6649389

HOSE COVER Bulk - Sold Per Foot
