Запчасти Bobcat BACKHOE CYLINDER STABILIZER 933S 933S BACKHOE

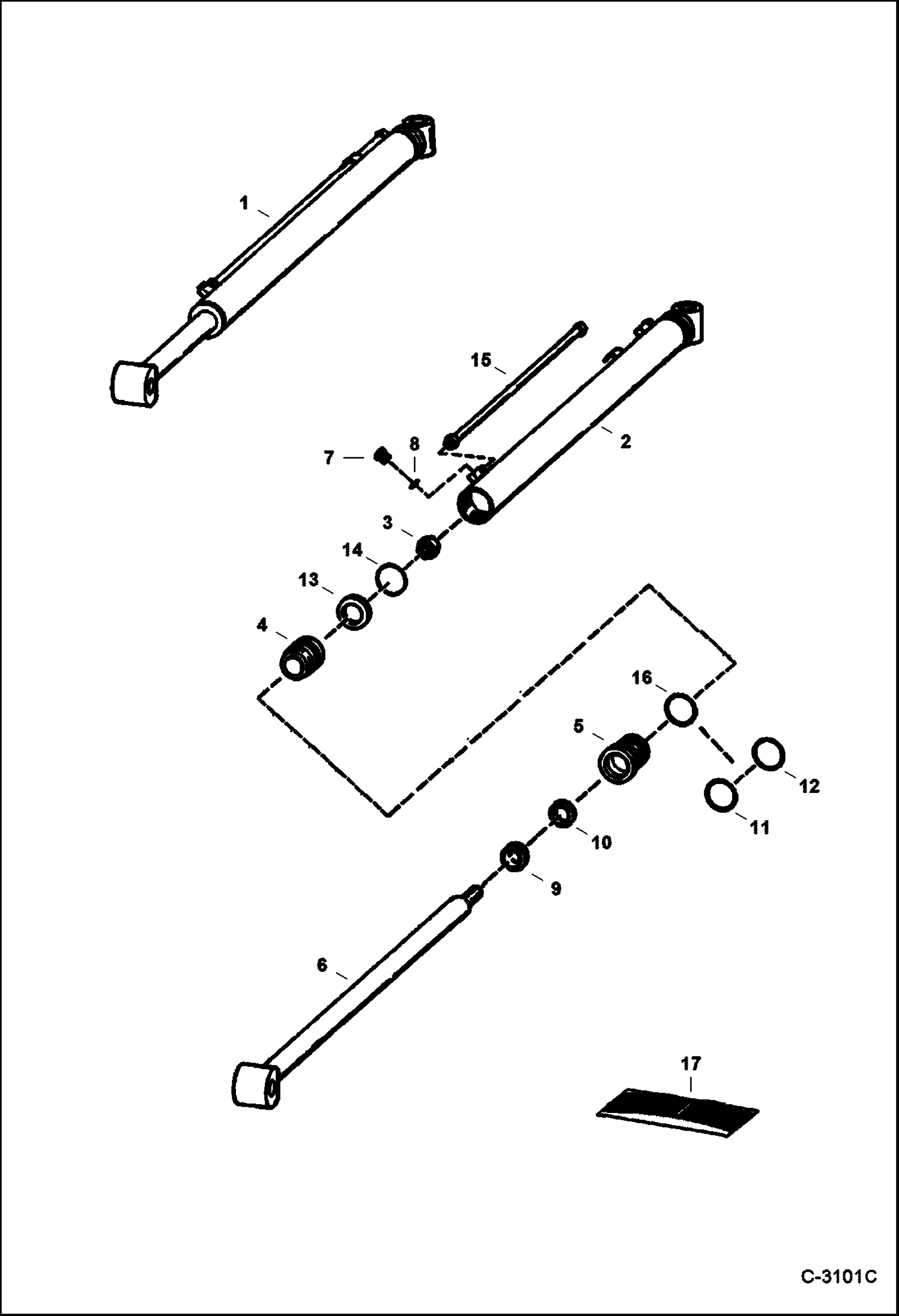

Схема запчастей Bobcat BACKHOE - CYLINDER STABILIZER 933S 933S BACKHOE

Артикул

Название

Примечание

Количество

1

6532229

CYLINDER W/Ref. 2-15

2

6532312

CASE

3

92D12

NUT Was 86D000012B - A

4

6558196

PISTON

5

6504933

HEAD

6

6532231

ROD

7

47K2

PLUG W/Ref. 8

8

79K3

O RING 10

9

1657083

WIPER ROD Was NSS - D

10

6667323

SEAL Was 6704243 - A

11

73K224

RING Was 80K000224B - A

12

54K40124

O-RING Was 25K040124B - A

13

6516231

SEAL Was NSS - D

14

54K30118

O-RING Was 25K030118B - A

15

6532311

TUBE

16

7008781

SEAL, QUAD

17

7137771

SEAL KIT Ref. 3, 9, 13, 14, & 16 - Was 6803472 - A

Выбрано товаров: 17
