Запчасти Bobcat BACKHOE CYLINDER SWING - TEXAS HYDRAULIC 933S 933S BACKHOE

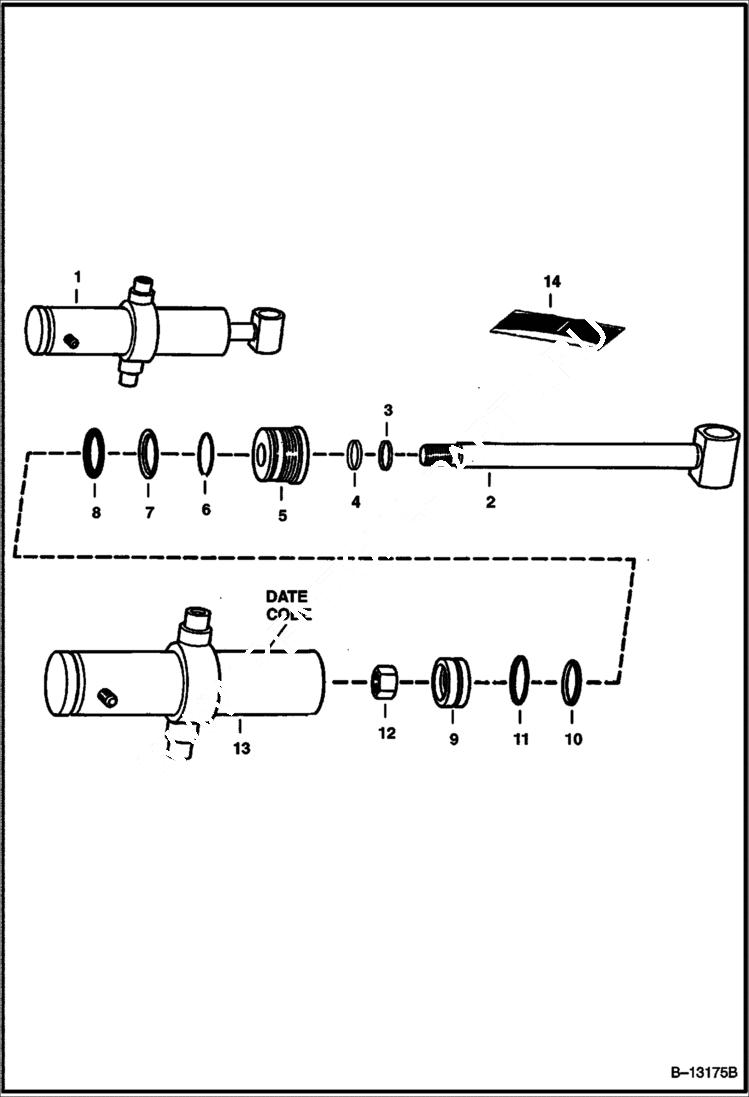

Схема запчастей Bobcat BACKHOE - CYLINDER SWING - TEXAS HYDRAULIC 933S 933S BACKHOE

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration CYLINDER SWING/ B24327E NLA - W/REF. 2-13 - ORDER 6589651 - WAS 6652837 - A

2

6653693

ROD

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

6667326

SEAL Order Ref. 14 - Was NSS - D

5

6653695

HEAD

6

58K234

O RING 10 Was 54K40300 - B

7

73K232

RING, BACK-UP Back-up - Order Ref. 14 - Was NSS - D

8

25K40224

O RING 10 Was 54K40224 - B

9

6653694

PISTON

10

25K30218

O RING 10 Was 54K30218 - B

11

947088

RING, BACK-UP Order Ref. 14 - Was NSS - D

12

92D14

NUT Was 86D000014B - A

13

6653692

CASE

14

7135549

SEAL KIT Ref. 3, 4, 6-8 & 10-12 - Was 6803323 - A

Выбрано товаров: 14
