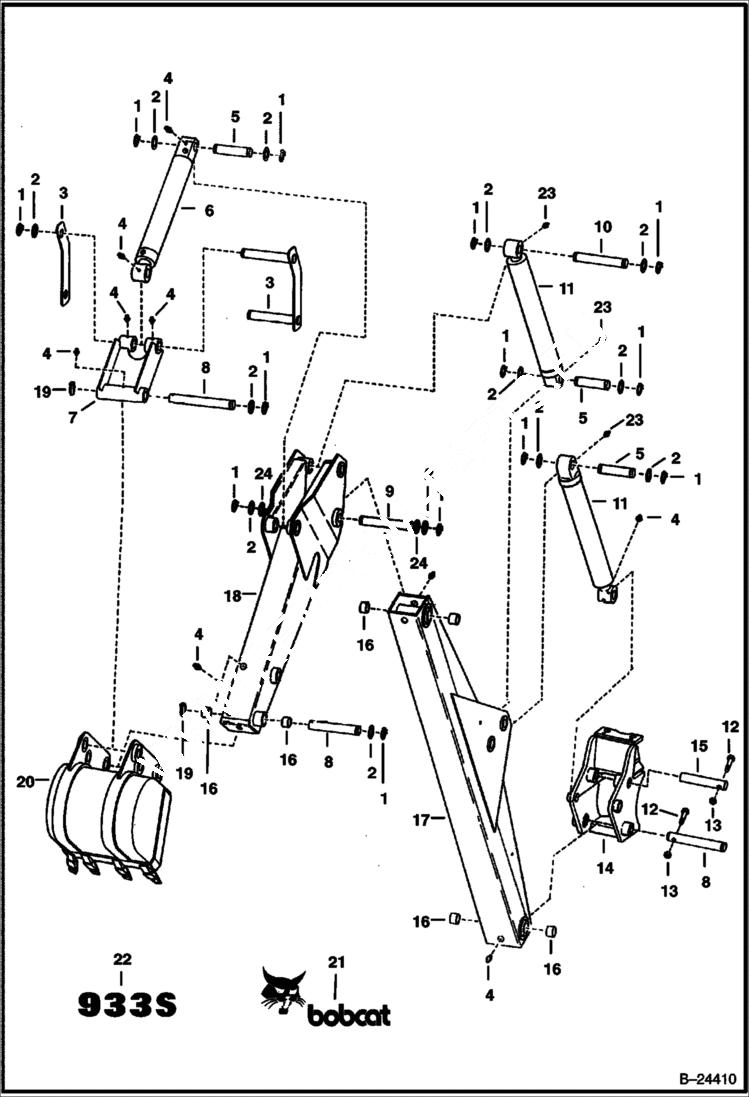

Запчасти Bobcat BACKHOE BOOM & DIPPERSTICK 933S 933S BACKHOE

1

6538285

LOCK RING retainer - Was 1305943B - A

2

6584872

WASHER 1/8'' Thick

3

6560390

LINK W/Pins

3

6560391

LINK

4

10H25

FITTING, GREASE 5

5

6560350

PIN

6

CYLINDER See Illustration CYLINDER BUCKET/ D1579A BUCKET

7

6592874

LINK

8

6560401

PIN, PIVOT BUCKET

9

6560349

PIN

10

6560352

PIN

11

CYLINDER See Illustration CYLINDER BOOM & DIPPERSTICK/ D1594 BOOM & DIPPERSTICK

12

17C656

BOLT

13

85D6

NUT, 5

14

FRAME See Illustration SLIDE - SWING FRAME/ B24409 SWING - REF. 7

15

6560351

PIN

16

6560334

BUSHING

17

6560726

BOOM W/Ref. 16

18

DIPPERSTICK NLA - W/Ref. 16 - Was 6560384 - A

19

6560382

PIN, LOCK Ring Lock

20

BUCKET See Illustration BUCKETS - BACKHOE/ B24413

21

6808545

DECAL Bobcat - R.H. - Was 6557412 - A

21

6808546

DECAL Bobcat - L.H. - Was 6557413 - A

22

6533175

DECAL 933S

23

12H15

FITTING, GREASE 5

24

6584873

WASHER 1/16'' Thick
