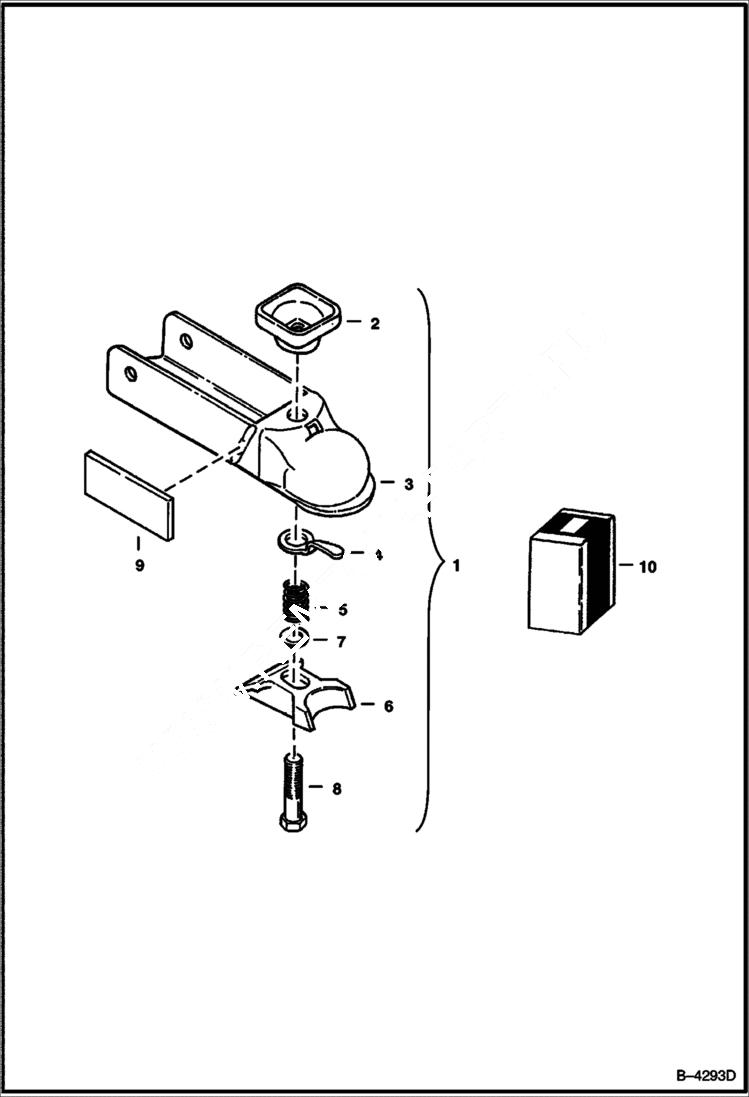

Запчасти Bobcat BACKHOE COUPLER ASSEMBLY 928S 928S BACKHOE

1

6562600

COUPLER W/Ref. 2-8

2

WHEEL NSS - Order Ref. 10

3

HOUSING NSS - Order Ref. 1

4

LATCH NSS - Order Ref. 10 - Was 6598297 - A

5

SPRING NSS - Order Ref. 10

6

CLAMP NSS - Order Ref. 10

7

25E25

WASHER 10

8

17C1044

BOLT

9

6592196

BRACKET See BTI200

10

6598834

KIT Repair - W/Ref. 2, 4, 5, 6, 7 & 8
