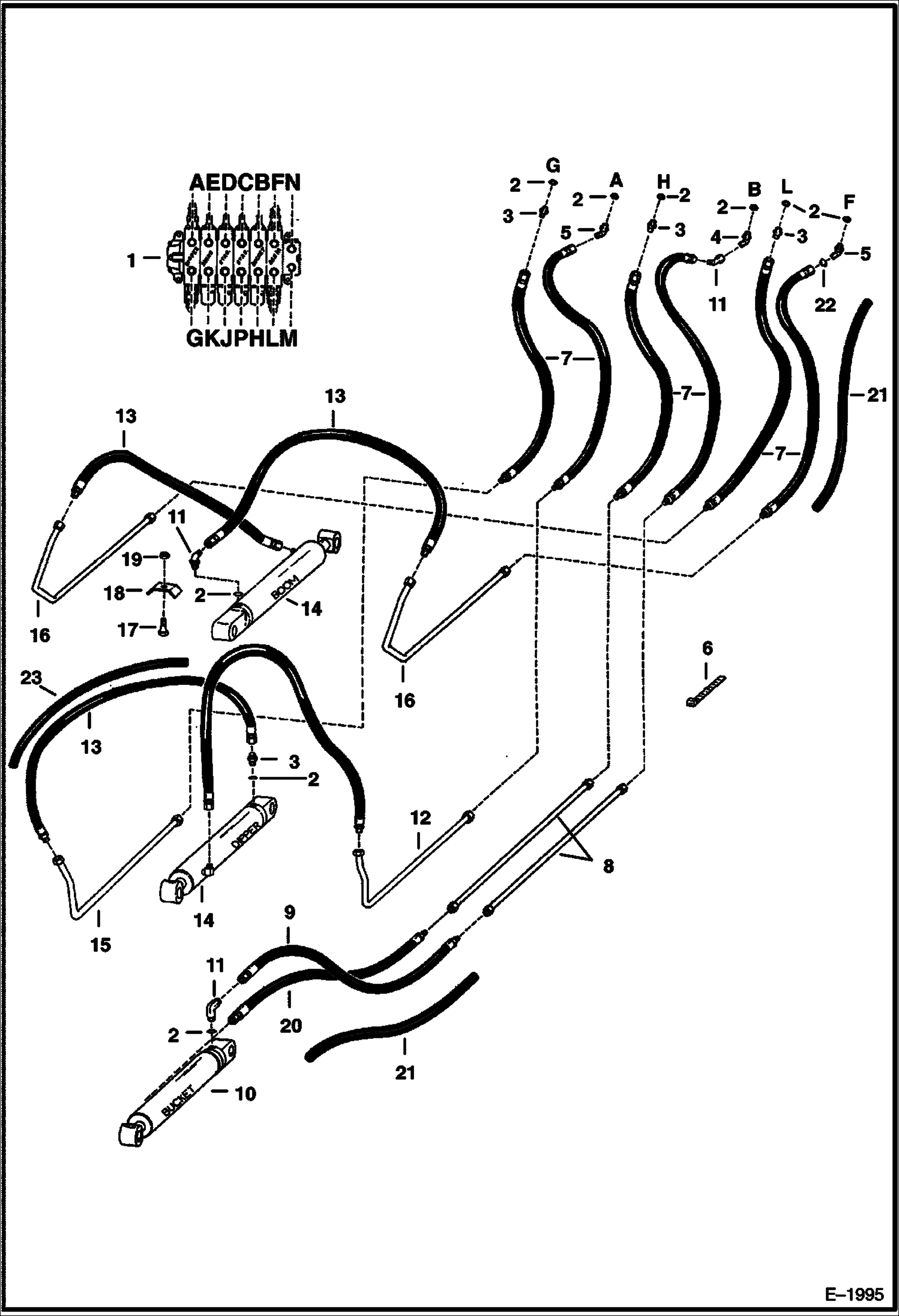

Запчасти Bobcat BACKHOE HYDRAULIC CIRCUITRY - BOOM 928S 928S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24318E

2

79K8

O RING 10

3

15K6

ADAPTER W/Ref. 2

4

12K6

UNION

5

18K6

FITTING W/Ref. 2

6

6610510

TIE Was 1715312B - A

7

6533050

HOSE

8

6560720

TUBE

9

6533043

HOSE

10

CYLINDER See Illustration CYLINDER BUCKET/ D1579 BUCKET

11

17K6

ELBOW W/Ref. 2

12

6563503

TUBE

13

6533046

HOSE

14

CYLINDER See Illustration CYLINDER BOOM & DIPPERSTICK/ B24408 BOOM, DIPPERSTICK

15

6563502

TUBE

16

6563504

TUBE

17

84G3728

BOLT

18

6502426

CLAMP

19

85D6

NUT, 5

20

6533044

HOSE

21

6649389

HOSE COVER 1'' (25,4 mm) Bulk - Sold Per Foot

22

6592852

ORIFICE .191 - .183 (4,85 - 4,65mm)

23

6650108

HOSE COVER 1.25'' (31,75 mm) Sold Per Foot
