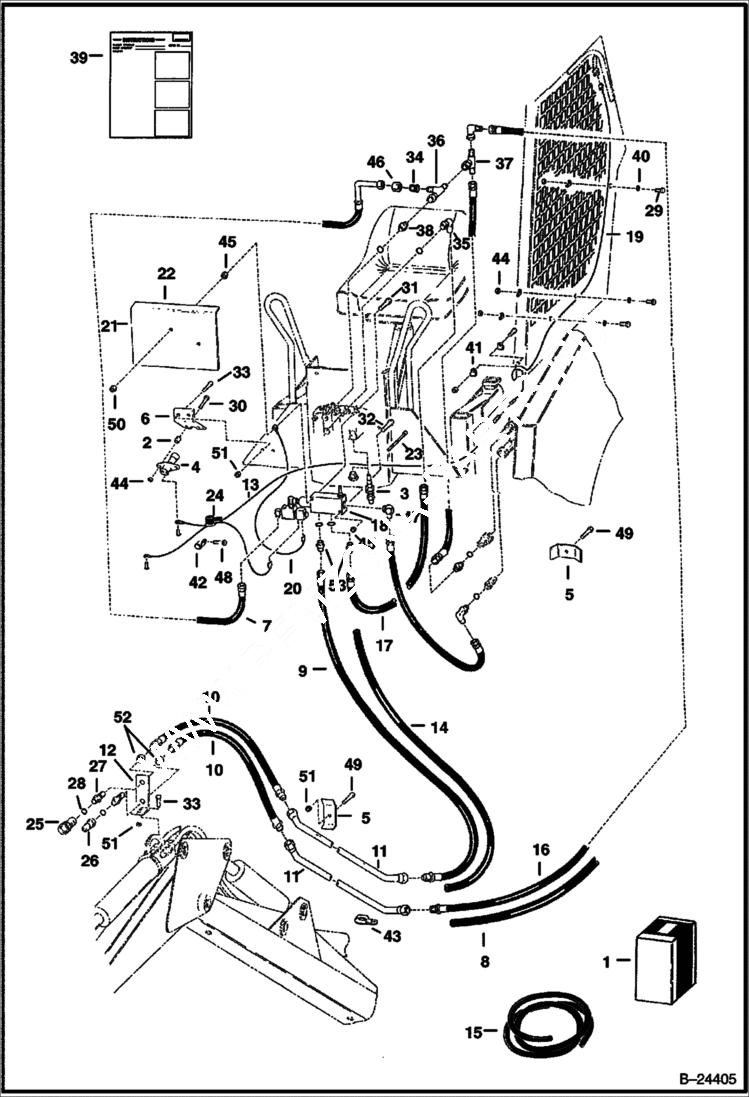

Запчасти Bobcat BACKHOE AUXILIARY HYDRAULICS KIT 923S 923S BACKHOE

1

KIT SALES - Auxiliary - W/Ref. 2 - 53 - Sales 6712078

2

791979

SPACER

3

6646680

RELIEF VALVE

4

2533656

SWITCH

5

6502426

CLAMP

6

6534960

BRACKET

7

6535882

HOSE

8

6536883

HOSE

9

6535884

HOSE

10

6535885

HOSE

11

6535886

TUBELINE

12

6535887

BRACKET

13

6535888

HARNESS

14

COVER HOSE NSS - 85'' (2159mm) Long - Order Ref. 15

15

6656155

HOSE COVER bulk - sold per foot

16

HOSE COVER NSS - 69'' (1765mm) Long - Order Ref. 15

17

6575845

HOSE

18

6593217

VALVE See Illustration VALVE FLOW DIVIDER/ B13650B ASSEMBLY-PARTS

19

6593223

HARNESS A-Breaker

20

6593226

HARNESS B-Breaker

21

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6714353 - A

22

6593220

COVER

23

6610510

TIE

24

6632453

BOOT

25

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

26

6674688

COUPLER, FF MALE straight - Was 6667808 - A

27

6711625

FITTING W/Ref. 28

28

79K12

O RING 10

29

17C412

BOLT 5

30

17C424

BOLT

31

17C540

BOLT

32

17C548

BOLT

33

17C616

BOLT 5

34

9K5

ADAPTER

35

11K7

ADAPTER

36

13K7

FITTING

37

14K7

TEE

38

15K7

FITTING

39

6720319

INSTRUCTION Mounting

40

25E13

WASHER 5

41

30H21

CLAMP 10

42

30H31

CLAMP 10

43

31H38

CLAMP

44

61D4

NUT 5

45

61D5

NUT

46

80F7

NUT

47

83F7

ELBOW Pipe Threads

47

17KB1008

FITTING, HYD ELBOW O-Ring boss threads

48

84G3716

SCREW 5

49

84G3724

BOLT

50

85D5

NUT 5

51

85D6

NUT, 5

52

86F7

LOCK NUT

53

89F7

ADAPTOR Pipe Threads

53

15KB1008

FITTING, HYD CONNECTOR O-Ring boss threads
