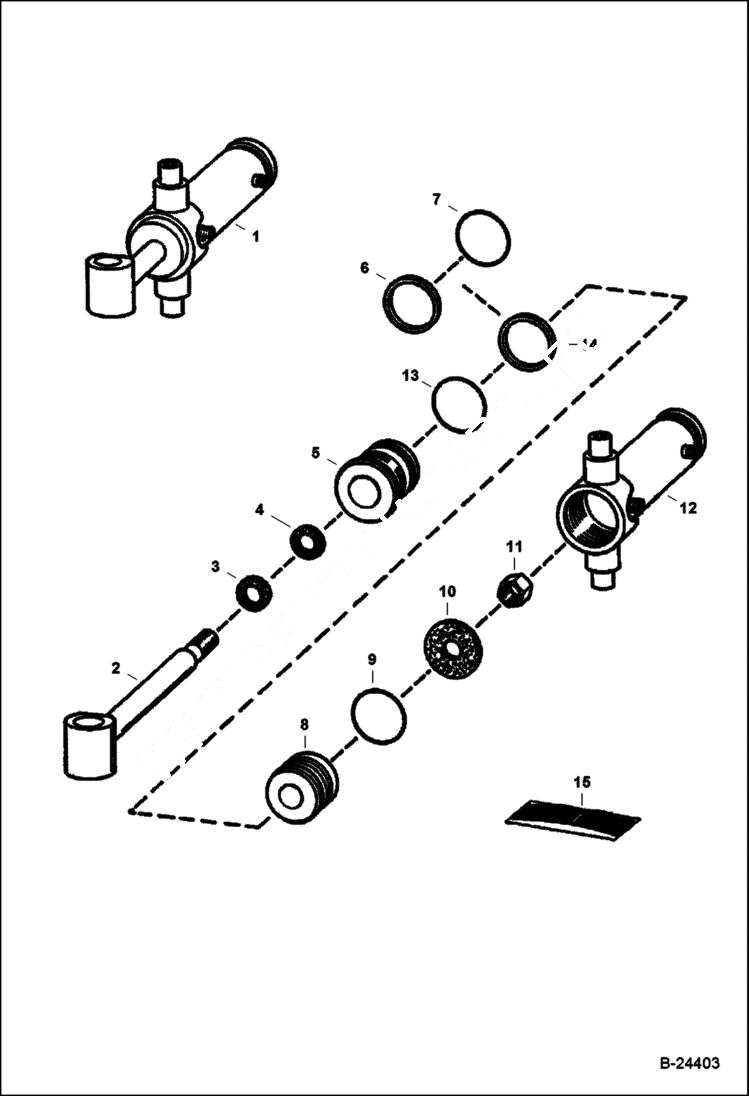

Запчасти Bobcat BACKHOE CYLINDER SWING 923S & 923SA 923S BACKHOE

1

6538576

CYLINDER W/Ref. 2-13

2

6538585

ROD

3

6665208

SEAL Wiper - Was NSS - D

4

6665184

SEAL Was NSS - D

5

6538582

HEAD Was 6628031 - B

6

73K228

BACK-UP RING Back-Up - Was 80K000228B - A

7

25K40208

O RING 10 Was NSS - D

8

6538590

PISTON

9

25K30202

O RING 10 Was NSS - D

10

1522534

SEAL Was NSS - D

11

92D12

NUT Was 88D000012B - B

12

6538589

CASE

13

82K230

O-RING Was NSS - D

14

7008778

SEAL, QUAD

15

6588858

SEAL KIT W/Ref. 3, 4, 9-11, 13, & 14 - Was 6661043 - A
