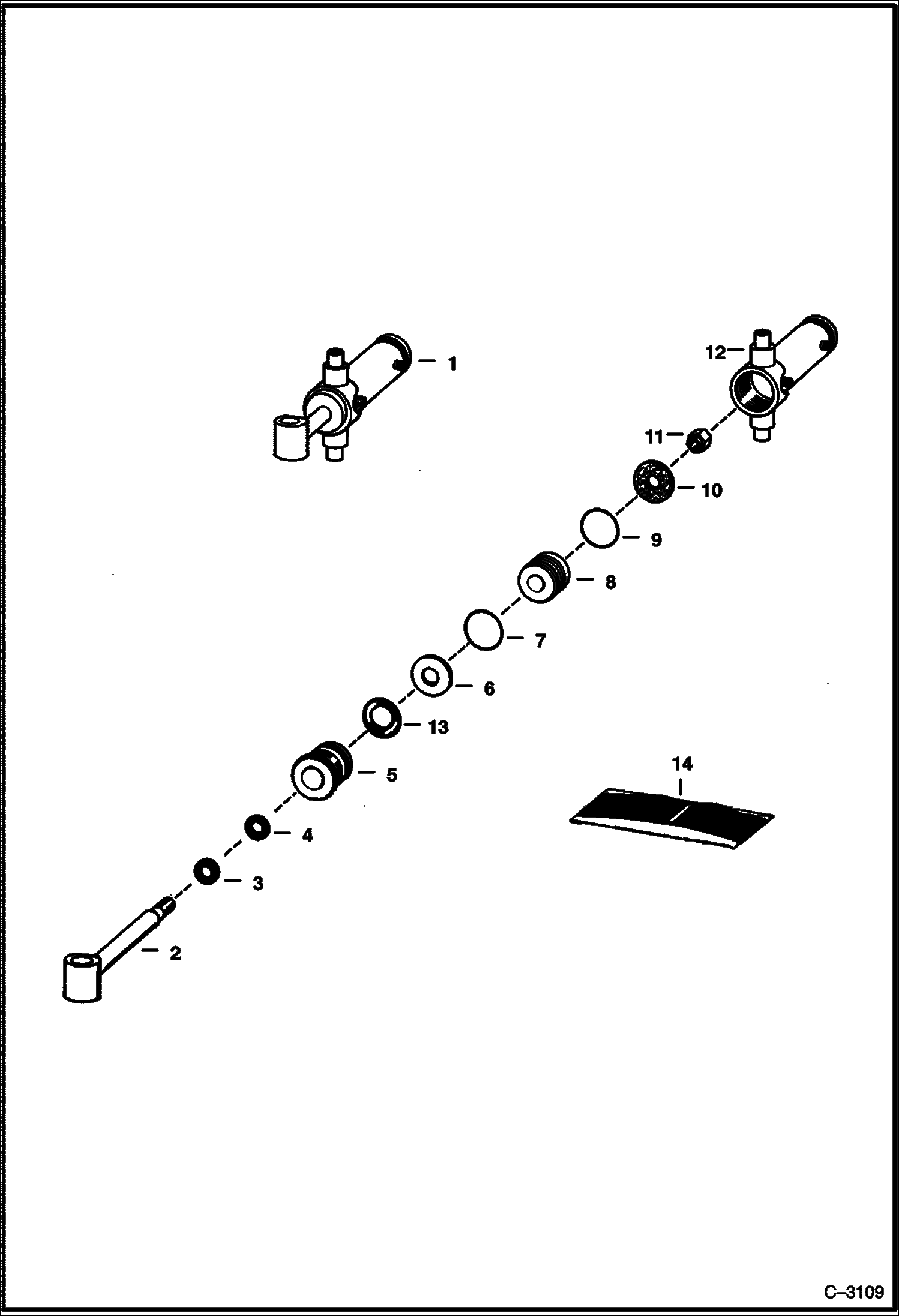

Запчасти Bobcat BACKHOE CYLINDER SWING - TEXAS HYDRAULIC 923S & 923SA 923S BACKHOE

1

CYLINDER See Illustration CYLINDER SWING/ B24403 NLA - W/Ref. 2-13 - Order 6538576 - Was 6532237 - A

2

6532317

ROD

3

SEAL NSS - Order Ref. 14

4

SEAL NSS - Order Ref. 14

5

6650362

HEAD

6

WASHER NSS - Back-Up - Order Ref. 14

7

O-RING NSS - Order Ref. 14

8

6650361

PISTON

9

O-RING NSS - Order Ref. 14

10

SEAL NSS - Order Ref. 14

11

6810539

NUT Was 86D000018B - A

12

6650360

CASE

13

O-RING NSS - Order Ref. 14

14

6588858

SEAL KIT W/Ref. 3, 4, 6-8, 10, 11 & 13 - Was 6661043 - A
