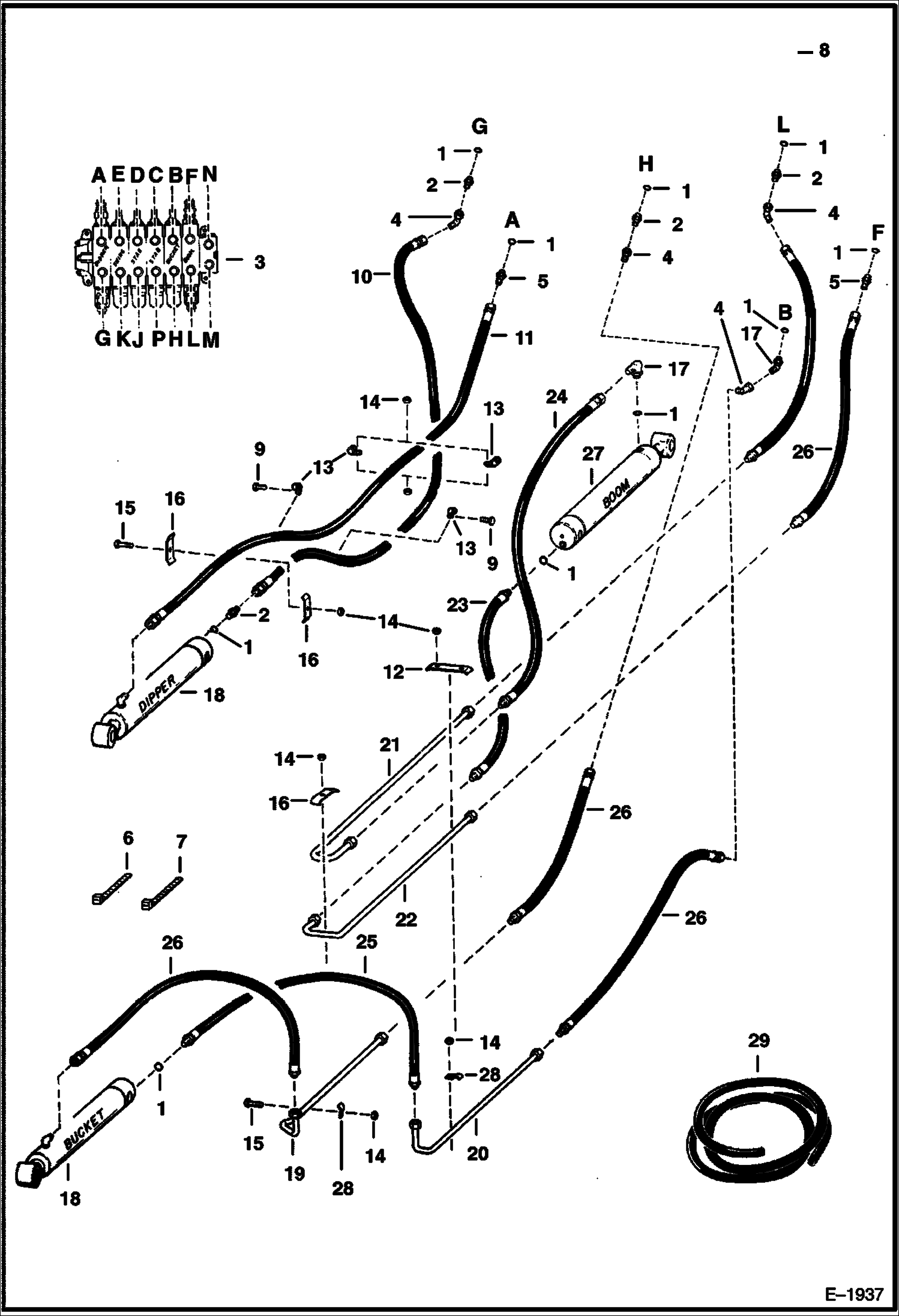

Запчасти Bobcat BACKHOE HYDRAULIC CIRCUITRY - BOOM 923S & 923SA 923S BACKHOE

1

79K8

O RING 10

2

15K6

ADAPTER W/Ref. 1

3

VALVE See Illustration VALVE CONTROL/ B24318D

4

12K6

UNION

5

18K6

FITTING W/Ref. 1

6

6610510

TIE Was 1715312B - A

7

6624289

STRAP, TIE

8

6592852

ORIFICE .191 - .183 (4,85 - 4,65mm) Was 6592865 - A

9

84G3110

SCREW

10

6532644

HOSE

11

6532645

HOSE

12

6562267

CLAMP

13

30H46

CLIP

14

85D6

NUT, 5

15

17C628

BOLT

16

6502426

CLAMP

17

17K6

ELBOW W/Ref. 1

18

CYLINDER See Illustration CYLINDER BUCKET & DIPPERSTICK/ C2660 BUCKET, DIPPERSTICK

18

648

19

6562009

TUBE

20

6561915

TUBE

21

6561914

TUBE

22

6561913

TUBE

23

6532641

HOSE

24

6532642

HOSE

25

6532640

HOSE

26

6532639

HOSE

27

CYLINDER See Illustration CYLINDER BOOM/ C2686 BOOM

28

6562266

CLAMP

29

6649389

HOSE COVER 1'' (25,4 mm) - I.D. Bulk - Sold Per Foot

29

6650108

HOSE COVER 1.25' (31,75 mm) - I.D. Bulk - Sold Per Foot

29

6651436

HOSE COVER 2.38'' (60,45 mm) - I.D. Bulk - Sold Per Foot
