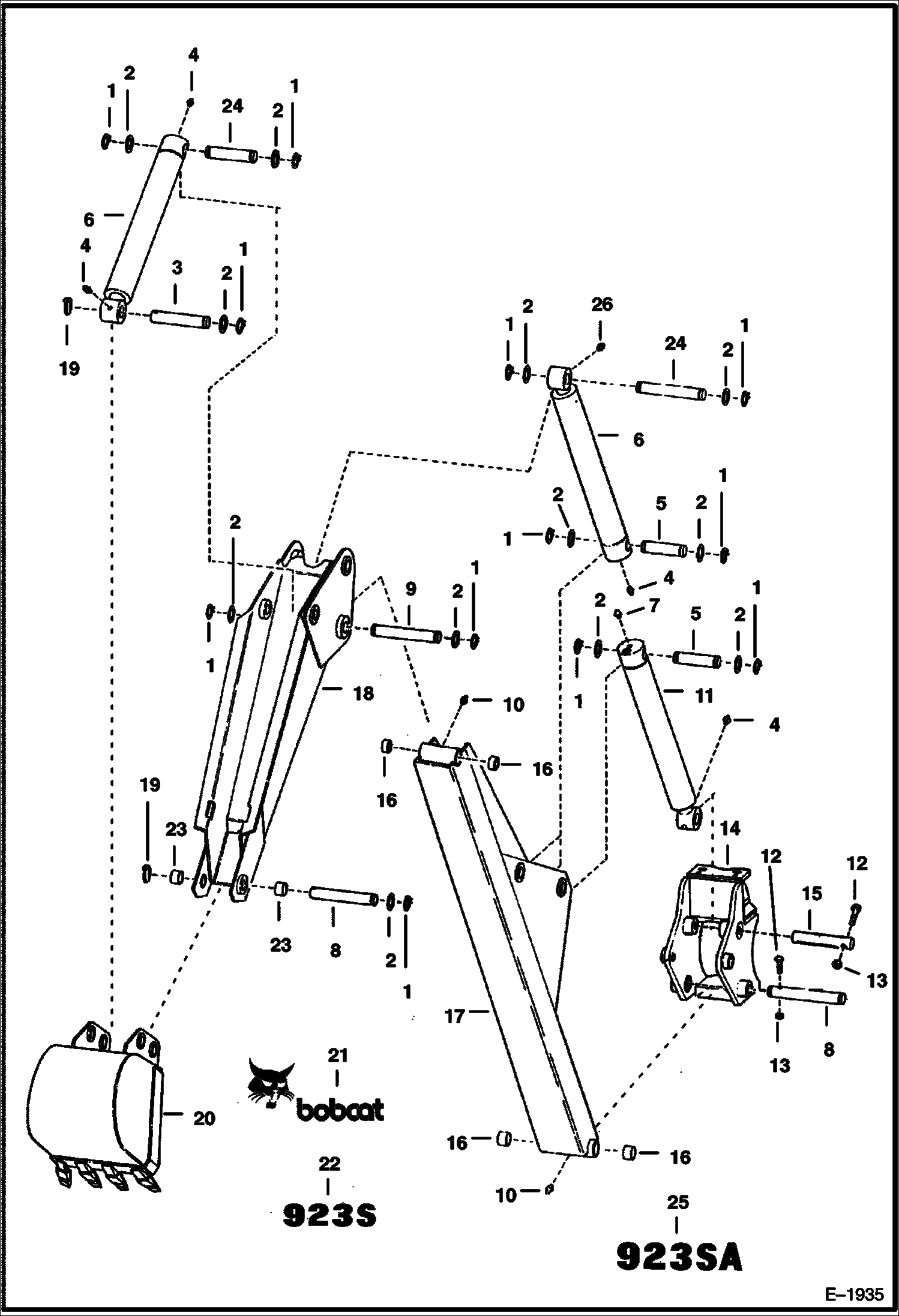

Запчасти Bobcat BACKHOE BOOM & DIPPERSTICK 923S & 923SA Backhoe 923S BACKHOE

1

6531366

RING Retainer

2

6531365

WASHER

3

6561846

PIN

4

10H25

FITTING, GREASE 5

5

6561850

PIN

6

CYLINDER See Illustration CYLINDER BUCKET & DIPPERSTICK/ C2660 BUCKET, DIPPERSTICK,

7

11H15

GREASE FITTING

8

6561845

PIN

9

6561848

PIN

10

12H15

FITTING, GREASE 5

11

CYLINDER See Illustration CYLINDER BOOM/ C2686 BOOM

12

17C652

BOLT Was 17C000636B - A

13

85D6

NUT, 5

14

6531923

SWING FRAME See Illustration SLIDE - SWING FRAME/ B24401 Ref. 16

15

6561847

PIN

16

6561911

BUSHING

17

6561896

BOOM W/Ref. 16

18

6561869

DIPPERSTICK W/Ref. 23

19

6560382

PIN, LOCK Ring lock

20

BUCKET See Illustration BUCKETS BACKHOE/ B13654A

21

6560987

DECAL Bobcat - R.H.

21

6560986

DECAL, LOGO BOBCAT AND HEAD LH

22

6531998

DECAL 923S

23

6541143

BEARING

24

6561849

PIN

25

6533362

DECAL 923SA

26

12H15

FITTING, GREASE 5
