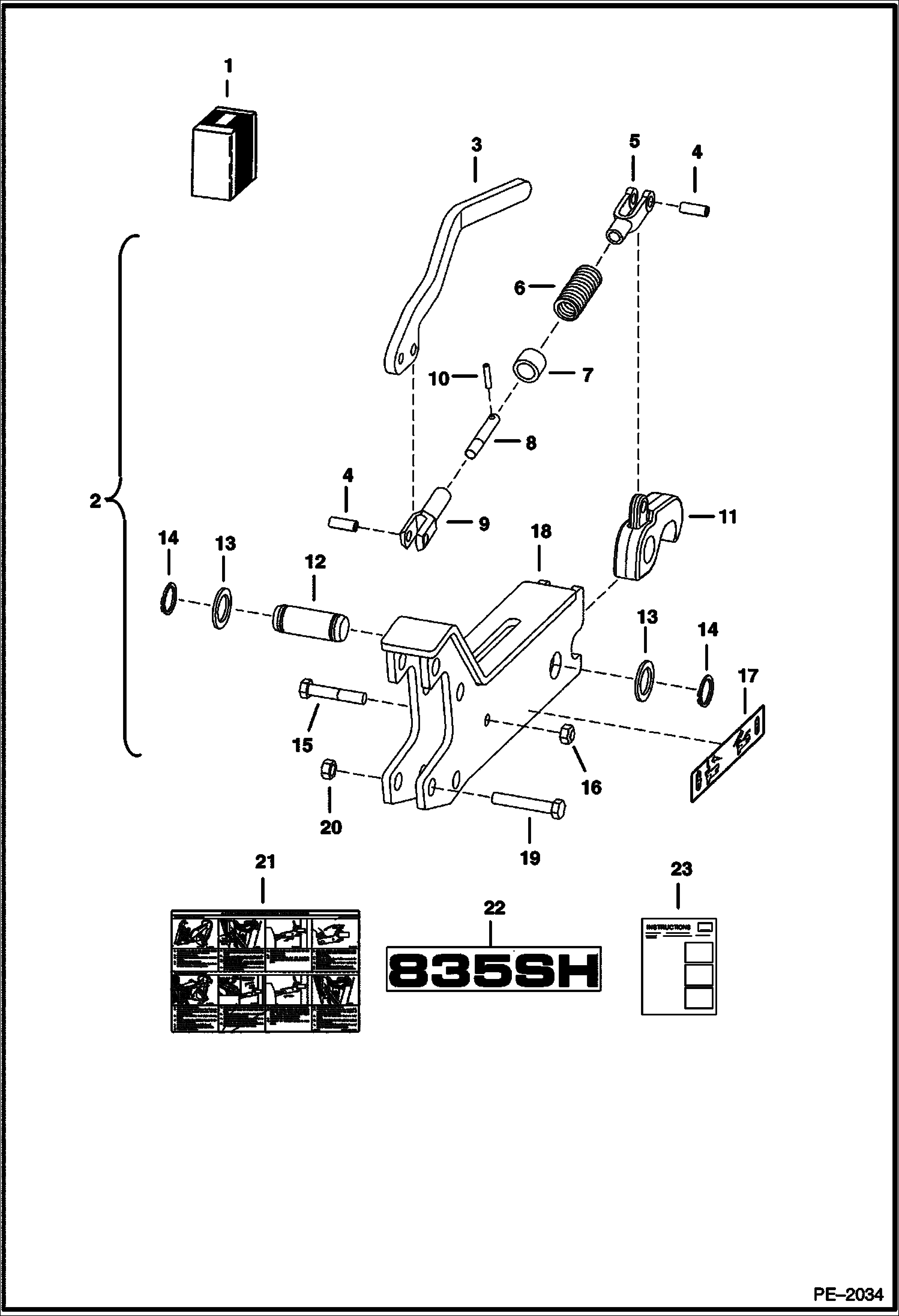

Запчасти Bobcat BACKHOE MOUNTING ARM KIT - HOOK MOUNT 835SH Backhoe - S/N 9923 (1st 4 digits) 835SH BACKHOE

1

KIT SALES - W/Ref. 2 - 23 - Sales #6815943

2

6815937

LATCH ASSY L.H. - W/Ref. 2 - 17

2

6815938

LATCH ASSY L.H. - W/Ref. 2 - 17

3

6815923

HANDLE L.H.

3

6815924

HANDLE L.H.

4

14J5020

PIN,ROLL

5

6533159

CLEVIS

6

6578253

SPRING, COMPRESSION

7

6533160

BUSHING

8

6533158

ROD

9

6704248

PIVOT, WEDGE

10

14J2520

PIN

11

6816819

LATCH

12

6812834

PIN, PIVOT

13

6532519

WASHER

14

22J20

SNAP RING

15

17C844

BOLT

16

85D8

NUT, 5

17

6815154

DECAL Lock - L.H.

17

6815155

DECAL Lock - R.H.

18

6815920

LATCH

19

17C1244

BOLT

20

85D12

NUT, 5

21

6814337

DECAL 835SH

22

6814338

DECAL Mounting

23

6902410

INSTRUCTI0NS
