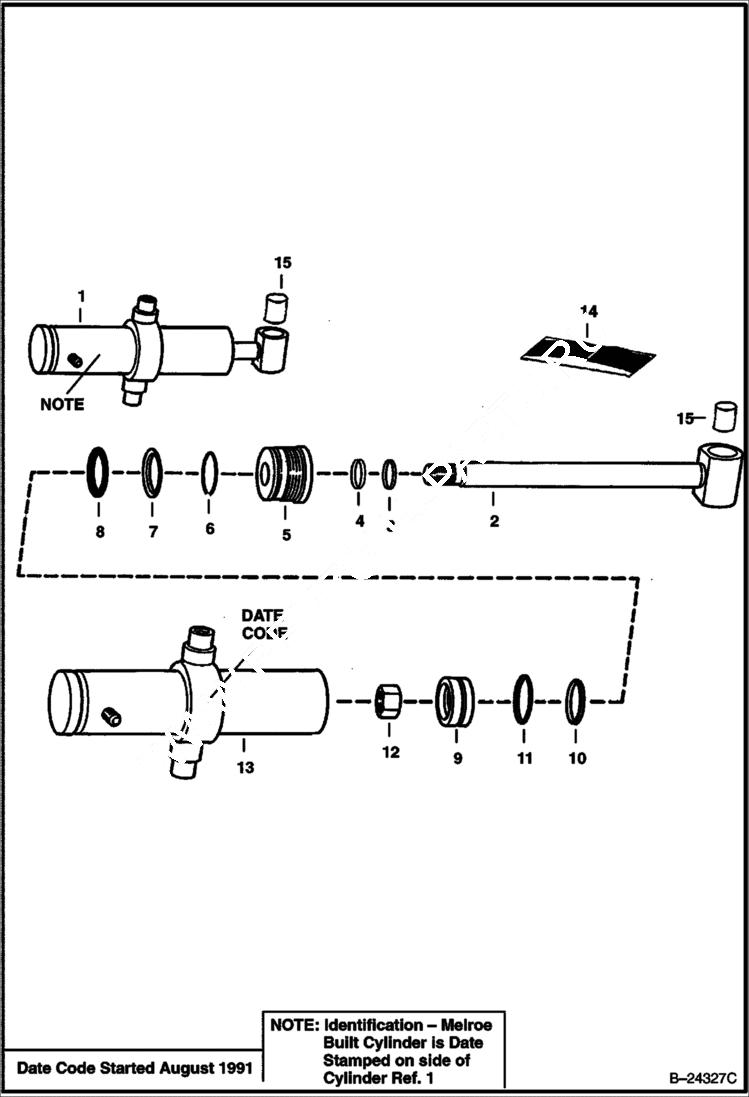

Запчасти Bobcat BACKHOE CYLINDER SWING 835SH - S/N 9923 (1st 4 digits) 835SH BACKHOE

1

6589651

CYLINDER W/Ref. 2-13, 15 - Was 6538366 - A

2

7104662

SHAFT W/Ref. 15 - Was 6538375 - A

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

6667326

SEAL Was 6538141 - A

5

6538367

HEAD, CYL TILT

6

58K234

O RING 10 Was 54K40300 - B

7

73K232

RING, BACK-UP Back-Up - Was 80K000232B - A

8

25K40224

O RING 10 Was 54K40224 - B

9

6538380

PISTON

10

25K30218

O RING 10 Was 54K30218 - B

11

947088

RING, BACK-UP Was NSS - D

12

92D14

NUT Was 86D000014B - A

13

6589654

TUBE Was 6538379 - A

14

7135549

SEAL KIT Ref. 3, 4, 6-8 & 10-12 - Was 6803323 - A

15

6651449

BEARING
