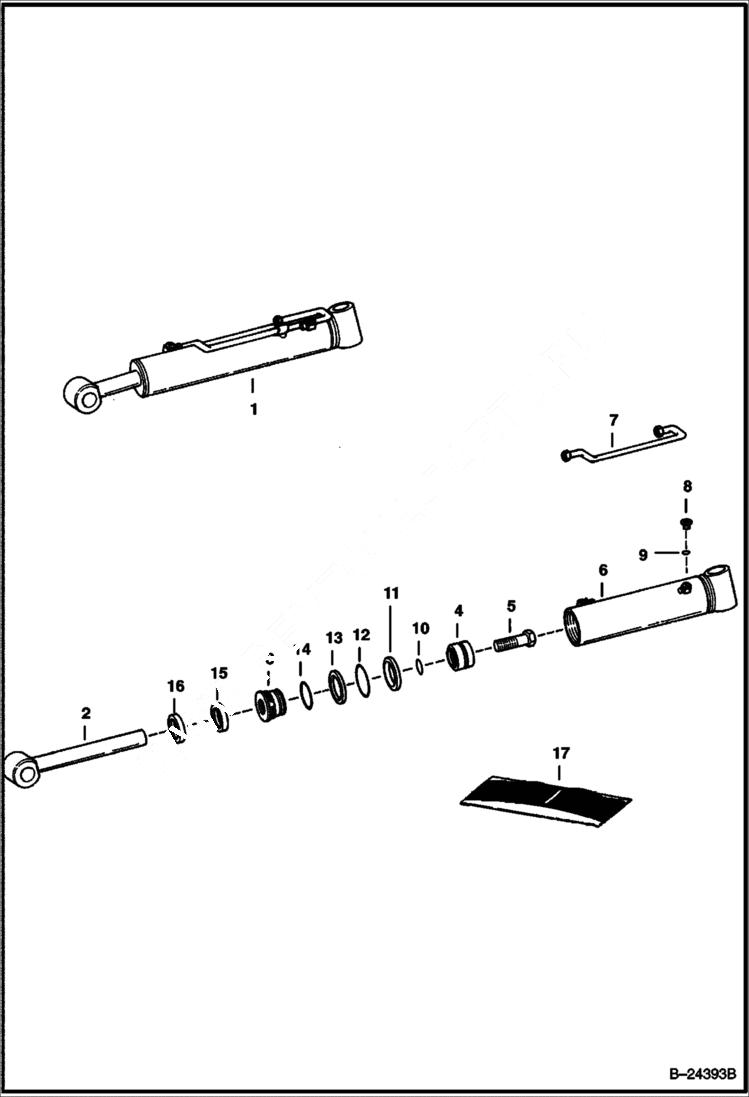

Запчасти Bobcat BACKHOE CYLINDER - DIPPER 835SH - S/N 9923 (1st 4 digits) 835SH BACKHOE

1

CYLINDER NLA - W/Ref. 2-16 - Order 7104444 - Was 6589752 - A

2

6536338

SHAFT

3

6534985

HEAD

4

6536341

PISTON

5

6536391

SCREW

6

6589751

TUBE Was 6534621 - A

7

6813249

TUBELINE Was 6533378 - A

8

47K5

PLUG W/Ref. 9

8

6816855

PLUG W/Ref. 9 - hex flat boss face

9

79K6

O RING 10

10

25K30300

O RING 10 Was NSS - D

11

1530265

PISTON SEAL Was NSS - D

12

58K338

O RING 10 Was 54K60304 - A

13

73K338

RING back-up - Was 82K338 - A

14

58K238

O-RING

15

6538140

SEAL Was NSS - D

16

6690707

WIPER, ROD CYL Was 6665086 - A

17

6587992

SEAL KIT W/Ref. 10-16- Was 6661059 - A
