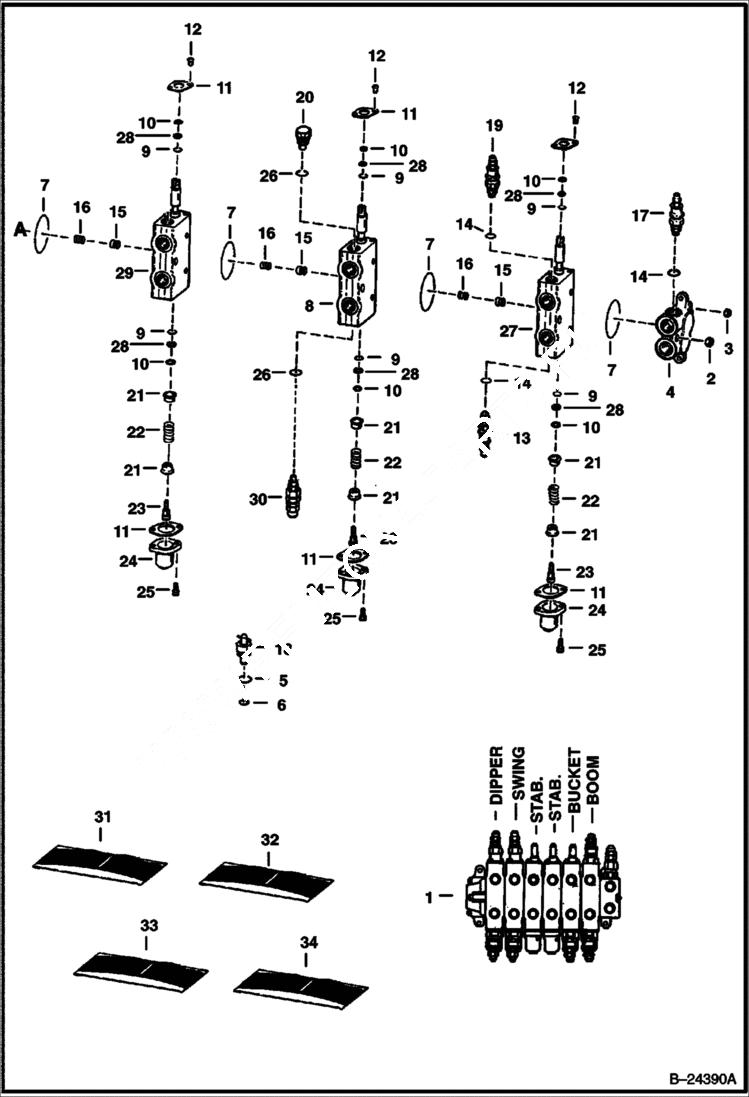

Запчасти Bobcat BACKHOE VALVE CONTROL 835SH - S/N 9923 (1st 4 digits) 835SH BACKHOE

1

6676398

VALVE See Illustration VALVE CONTROL/ B24320C Ref. 2-25 - Husco 5000F-119 - W/Ref. 2-19, 21-25, 27-29, 31 on this Illustration

2

62D6

NUT 5

3

61D5

NUT

4

6651869

SECTION Inlet - W/Ref. 7

5

79K10

O RING 10

6

58K110

O RING 10

7

6646691

O-RING

8

6646689

SECTION Bucket, Dipper & Swing - W/O Ref. 13, 17, 19 & 29 - W/Ref. 7, 9-12, 15, 16, 21-25 & 27

9

O-RING NSS

10

WIPER NSS

11

948016

PLATE

12

93G406

SCREW

13

6646679

RELIEF VALVE

14

961240

O-RING

15

6630965

POPPET

16

6630966

SPRING

17

6651867

RELIEF VALVE

18

945193

PLUG W/Ref. 5 & 6

19

6517503

RELIEF VALVE Anti. Cav. - Was 6517603 - D

20

6652869

PLUG Non-Reusable

21

948017

SEAT Spring

22

948018

SPRING

23

948191

CAPSCREW

24

948192

CAP

25

73G412

SCREW

26

SEAL NSS

27

6646688

SECTION Boom - W/Ref. 7, 9-12, 15, 16, 21-25 & 27 - W/O Ref. 13

28

WASHER NSS

29

6646687

SECTION Stabilizer - W/Ref. 7, 9-12, 15, 16, 21-25 & 28

30

6646680

RELIEF VALVE Was 966134 - A

31

6630960

SEAL KIT O-Rings & Back-Up Rings for Ref. 19

32

6646698

SEAL KIT Spool - W/Ref. 9, 10 & 28 - for all six spools

32

6651569

SEAL KIT Spool - W/Ref. 9, 10 & 28 - for one spool only

33

6652870

SEAL KIT Complete - Includes 6646695 , Ref. 34 - 6646698 , Ref. 32 6630960 , Ref. 31 & Ref. 7, 20 & 26

34

6646695

SEAL KIT O-Rings & Back-Up Rings for Ref. 13
