Запчасти Bobcat BACKHOE HYDRAULICS - MAIN FRAME 835SH - S/N 9923 (1st 4 digits) 835SH BACKHOE

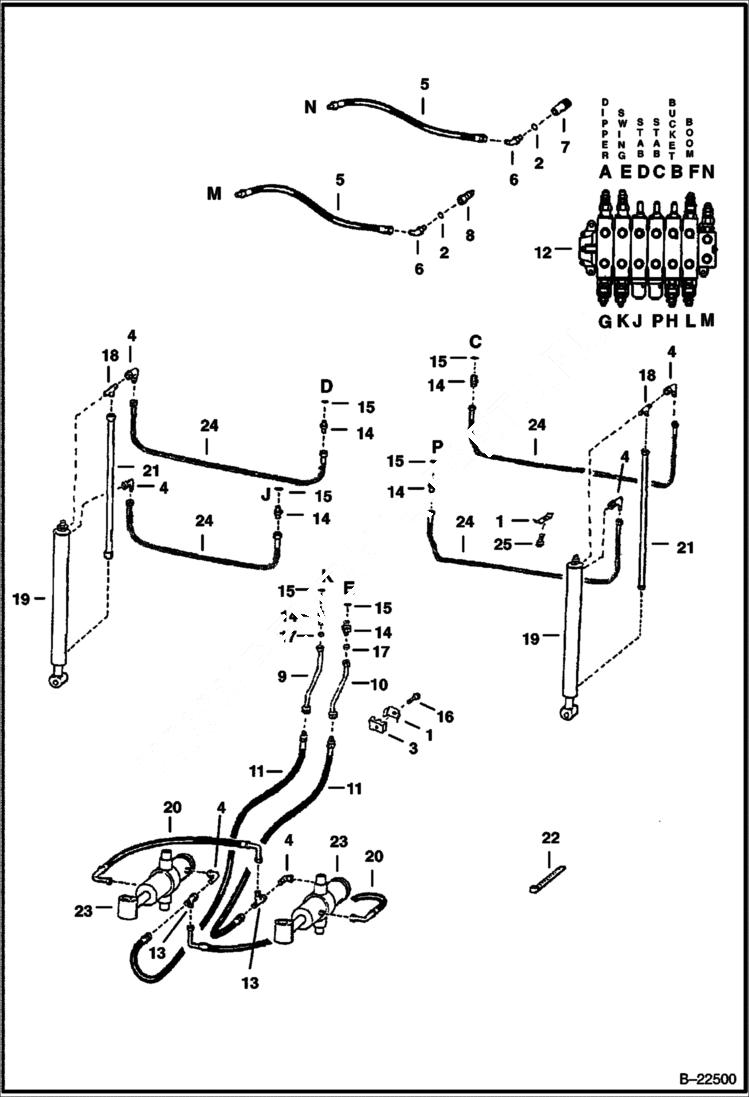

Схема запчастей Bobcat BACKHOE - HYDRAULICS - MAIN FRAME 835SH - S/N 9923 (1st 4 digits) 835SH BACKHOE

Артикул

Название

Примечание

Количество

1

6500989

CLAMP

2

79K12

O RING 10

3

6578870

CLAMP

4

11K5

FITTING

5

6814276

HOSE See Illustration DIRECTIONAL VALVE, HYDRAULIC CIRCUITRY/ B24374B Ref. 36

6

17KB1012

FITTING, HYD ELBOW W/Ref. 2 - Was 1302104B - A

7

6672960

COUPLER, FF FEMALE straight

8

6674688

COUPLER, FF MALE straight

9

6806328

TUBELINE

10

6806323

TUBELINE

11

6809052

HOSE

12

VALVE See Illustration VALVE CONTROL/ B24320C

13

13K5

TEE

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

84G2516

BOLT

17

6532775

ORIFICE .079 - .085 (2, 01 - 2,16mm)

18

21KB0606

FTG HYD STRAIGHT TEE Was 21KV00005B - A

19

CYLINDER See Illustration CYLINDER STABILIZER WITH COUNTERBALANCE VALVE/ C5340D STAB.

20

6533049

HOSE

21

6589968

TUBELINE

22

6610510

TIE

23

CYLINDER See Illustration CYLINDER SWING/ B24327C SWING

24

6815760

HOSE

25

35C510

BOLT

Выбрано товаров: 25
