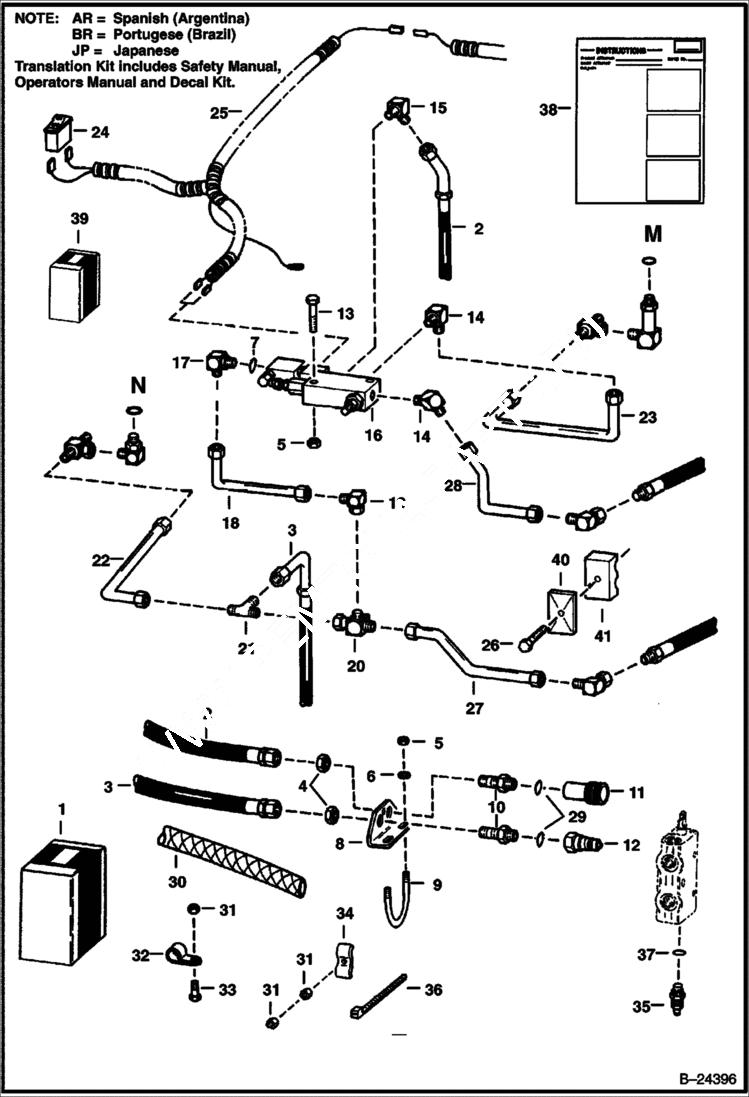

Запчасти Bobcat BACKHOE AUXILIARY HYDRAULICS KIT 835S 835S BACKHOE

1

KIT SALES - W/Ref. 2 - 38 - Sales #6712081

2

6539877

HOSE

3

6539878

HOSE

4

86F7

LOCK NUT

5

81D5

NUT

6

25E15

WASHER

7

79K6

O RING 10

8

6537312

PLATE

9

6537314

KEY

10

6711625

FITTING

11

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

12

6674688

COUPLER, FF MALE straight - Was 6667808 - A

13

17C532

BOLT 5

14

6586321

ELBOW Pipe Threads

14

17KB1008

FITTING, HYD ELBOW O-Ring boss threads

15

6586322

ELBOW Pipe Threads

15

18KB1008

FITTING, HYD ELBOW O-Ring boss threads

16

6593217

VALVE See Illustration VALVE FLOW DIVIDER/ B13650B ASSEMBLY - PARTS

17

17K5

ELBOW

17

17KB0606

FITTING Was 17KN00005B - A

17

99K6

O RING boss end - Was 98K6 - A

17

96K6

O-RING Flare End

18

6538997

TUBE

19

11K5

FITTING

19

11K6

UNION Was 11KN00006B - A

19

96K6

O-RING Flare End

20

6535460

TEE

21

10K7

TEE

22

6538995

TUBE

23

6538998

TUBE

24

6659360

SWITCH

25

6539948

HARNESS Use with Ref. 24 rocker switch

25

6807059

HARNESS Use With 6675364 handle

26

17C520

BOLT 5

27

6538996

TUBE

28

6538999

TUBE

29

79K12

O RING 10

30

6656155

HOSE COVER bulk - sold per foot

31

81D6

NUT

32

30H50

CLIP

33

35C612

BOLT

34

6591804

CLAMP

35

6646680

RELIEF VALVE

36

6610510

TIE

37

961240

O-RING

38

6722050

INSTRUCTIONS

39

6718777AR

KIT Translation - SEE NOTE

39

6718777BR

KIT Translation - SEE NOTE

40

6652521

PLATE

41

6701893

CLAMP
