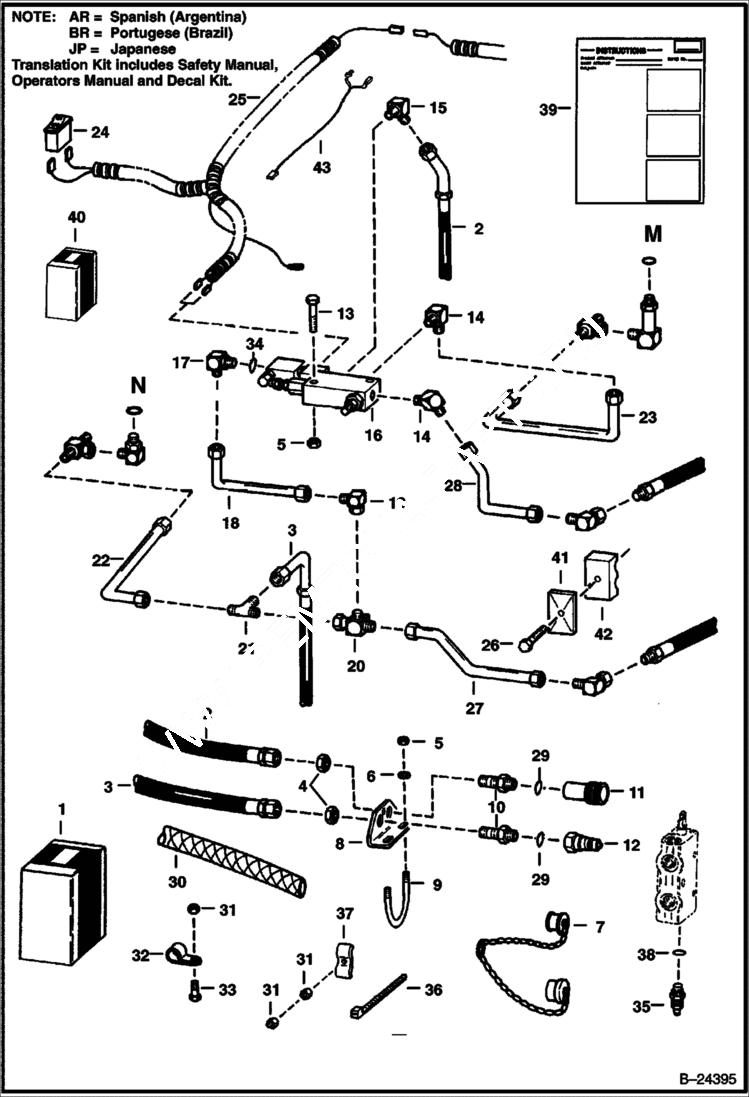

Запчасти Bobcat BACKHOE AUXILIARY HYDRAULICS KIT 835S 835S BACKHOE

1

KIT SALES - W/Ref. 2-38 - Sales #6586404

2

6539877

HOSE

3

6539878

HOSE

4

86F7

LOCK NUT

5

81D5

NUT

6

25E15

WASHER

7

6513709

CAP PLUG Assembly

8

6537312

PLATE

9

6537314

KEY

10

45K7

CONNECTR

11

6598758

COUPLER, POPPET FEMALE straight

12

6598757

COUPLER, POPPET MALE straight

13

17C532

BOLT 5

14

6586321

ELBOW Pipe Threads

14

17KB1008

FITTING, HYD ELBOW O-Ring boss threads

15

6586322

ELBOW Pipe Threads

15

18KB1008

FITTING, HYD ELBOW O-Ring boss threads

16

6593217

VALVE See Illustration VALVE FLOW DIVIDER/ B13650B

17

17K5

ELBOW

17

17KB0606

FITTING Was 17KN00005B - A

17

99K6

O RING boss end - Was 98K6 - A

17

96K6

O-RING Flare End

18

6538997

TUBE

19

11K5

FITTING

19

11K6

UNION Was 11KN00006B - A

19

96K6

O-RING Flare End

20

6535460

TEE

21

10K7

TEE

22

6538995

TUBE

23

6538998

TUBE

24

6659360

SWITCH

25

6539948

HARNESS Use with Ref. 24 rocker switch

25

6807059

HARNESS Use With 6675364 handle

26

17C520

BOLT 5

27

6538996

TUBE

28

6538999

TUBE

29

79K10

O RING 10

30

6656155

HOSE COVER bulk - sold per foot

31

81D6

NUT

32

30H50

CLIP

33

35C612

BOLT

34

79K6

O RING 10

35

6646680

RELIEF VALVE

36

6610510

TIE

37

6591804

CLAMP

38

961240

O-RING

39

6539707

INSTRUCTIONS Mounting

40

6718777AR

KIT Translation - SEE NOTE

40

6718777BR

KIT Translation - SEE NOTE

41

6652521

PLATE

42

6701893

CLAMP

43

6719823

HARNESS
