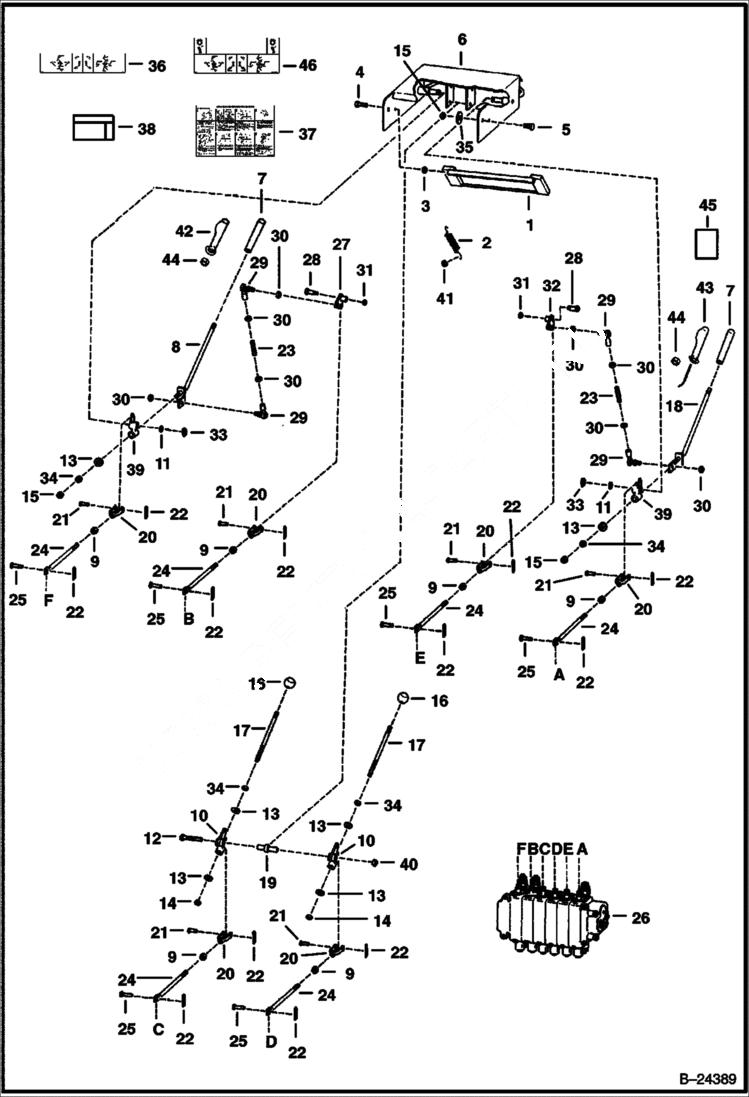

Запчасти Bobcat BACKHOE CONTROLS 835S - All Serial Nos 835S BACKHOE

1

6532607

LOCK

2

6610077

SPRING

3

7D6

NUT

4

17C620

BOLT

5

17C812

BOLT

6

MOUNT See BTI280 NLA - Order 6587709 - Was 6538444 - A

6

6587709

MOUNT Use with rocker switch & Ref. 7 handles

6

6807273

MOUNT Use with Ref. 42 & 43

7

6510093

HANDLE GRIP

8

6532154

LEVER R.H. - Use W/Ref. 7

8

6806872

LEVER R.H. - Use W/Ref. 42 & 43

9

8D6

NUT 5

10

6586081

PIVOT

11

25E16

WSHR

12

17C556

BOLT

13

25E21

WASHER 5

14

61D8

NUT 5

15

85D8

NUT, 5

16

6515888

KNOB

17

6532153

LEVER

18

6532158

LEVER L.H. - Use W/Ref. 7

18

6806874

LEVER L.H. - Use W/Ref. 42 & 43

19

6532160

PIVOT

20

6564655

CLEVIS

21

227395

CLEVIS PIN

22

1F208

PIN

23

6532193

ROD

24

6534486

ROD

25

6659298

PIN

26

VALVE See Illustration VALVE CONTROL/ B24326B See Illustration VALVE CONTROL/ B24318C See Illustration VALVE CONTROL/ B24390 See Illustration VALVE CONTROL/ B24320B

27

BELLCRANK See BTI280 NLA - L.H. - Was 6532195 - A

27

6587703

BELLCRANK L.H. - 1/2'' ID

28

BOLT See BTI280 NLA - Was 622102B - A

28

38C816

BOLT Was 68C-816 - D

29

6651231

BALL JOINT

30

62D5

NUT

31

85D5

NUT 5 See BTI280

31

85D6

NUT, 5

32

BELLCRANK See BTI280 NLA - R.H.

32

Was 6532157 - A

32

6587704

BELLCRANK R.H. - 1/2'' ID

33

1315207

RET RING

34

7D8

NUT 5

35

6700170

WASHER Plastic

36

6532697

DECAL Controls-Use W/Ref. 7 handles

37

6538568

DECAL Mounting

38

6538572

DECAL

39

6532196

PIVOT

40

61D5

NUT

41

85D6

NUT, 5

42

6668793

HANDLE R.H. - without switch

42

6675364

HANDLE R.H. - with switch

43

6675364

HANDLE R.H. - with switch

44

5DM14

LOCK NUT

45

6807084

DECAL Aux. switch

46

6808259

DECAL Controls - used with Ref. 42 & 43 handles
