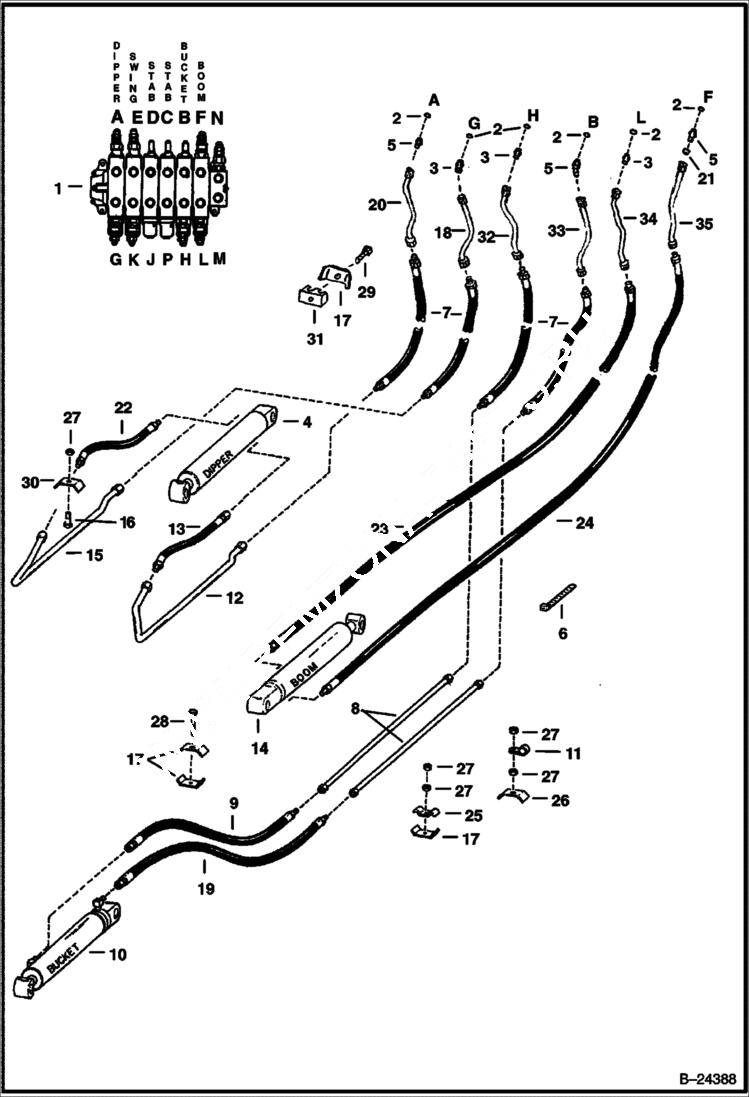

Запчасти Bobcat BACKHOE HYDRAULIC CIRCUITRY - BOOM 835SH - S/N 9923 (1st 4 digits) 835S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24320B

2

99K8

O-RING For tapered boss face

2

79K8

O RING 10 For flat boss face

3

ADAPTER NLA - W/Ref. 2 - tapered boss face - Was 15KN00006B - A

3

15KB0808

FITTING, HYD CONNECTOR W/Ref. 2 - flat boss face

4

CYLINDER See Illustration CYLINDER - DIPPER/ B24393 See Illustration CYLINDER DIPPER/ PE2514A DIPPER

5

ELBOW NLA - tapered boss face - Was 18KN00006B - A

5

18KB0808

FTG HYD ELBOW 45 Flat boss face

6

6610510

TIE

7

6809055

HOSE

8

6533294

TUBE

9

6587978

HOSE

10

CYLINDER See Illustration CYLINDER BUCKET/ C3236B See Illustration CYLINDER BUCKET/ NA2865A BUCKET

11

30H46

CLIP

12

6533292

TUBE

13

6539420

HOSE 17.50''(445mm) long

13

6704335

HOSE 16.70''(424mm) long

14

CYLINDER See Illustration CYLINDER - BOOM/ B24393A See Illustration CYLINDER BOOM/ PE2514 BOOM

15

6533293

TUBE

16

84G3728

BOLT

17

6502426

CLAMP

18

6806329

TUBELINE

19

6534685

HOSE

20

6806322

TUBELINE

21

6592852

ORIFICE .191 - .183 (4,85 - 4, 65mm)

22

6704336

HOSE

23

6809053

HOSE

24

6809054

HOSE

25

6591804

CLAMP

26

6537761

CLAMP

27

81D6

NUT

28

17C624

BOLT 5

29

84G3724

BOLT

30

6562266

CLAMP

31

6577696

CLAMP

32

6806324

TUBELINE

33

6806327

TUBELINE

34

6806325

TUBELINE

35

6806326

TUBELINE
