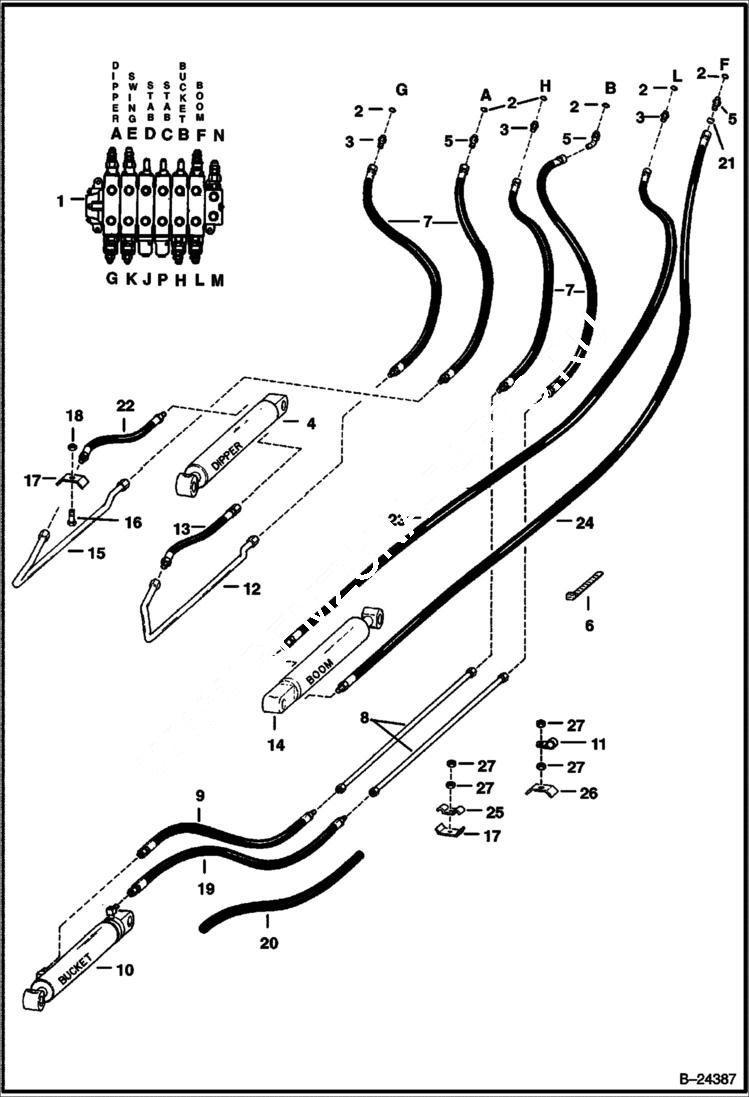

Запчасти Bobcat BACKHOE HYDRAULIC CIRCUITRY - BOOM 835S - S/NS 7850 & 9700 (1st 4 Digits) 835S BACKHOE

1

VALVE See Illustration VALVE CONTROL/ B24318C

2

79K8

O RING 10

3

15K6

ADAPTER W/Ref. 2

4

CYLINDER See Illustration CYLINDER - DIPPER/ B24393 See Illustration CYLINDER DIPPER/ PE2514A DIPPER

5

18K6

FITTING W/Ref. 2

6

6610510

TIE Was 1715312B - A

7

6534635

HOSE

8

6533294

TUBE Was 6532975 - D

9

6587978

HOSE Was 6533210 - A

10

CYLINDER See Illustration CYLINDER BUCKET/ C3236B See Illustration CYLINDER BUCKET/ NA2865A BUCKET

11

30H46

CLIP

12

6533292

TUBE Was 6532974 - A

13

6539420

HOSE 17.50''(445mm) long

13

6704335

HOSE 16.70''(424mm) long

14

CYLINDER See Illustration CYLINDER - BOOM/ B24393A See Illustration CYLINDER BOOM/ PE2514 BOOM

15

6533293

TUBE Was 6532973 - A

16

84G3728

BOLT

17

6502426

CLAMP

18

85D6

NUT, 5

19

6534685

HOSE

20

6649389

HOSE COVER 1''(25,4mm) Bulk - Sold Per Foot

21

6592852

ORIFICE .191 - .183 (4,85 - 4, 65mm)

22

6704336

HOSE Was 6539419 - A

23

6586278

HOSE

24

6586279

HOSE

25

6591804

CLAMP

26

6537761

CLAMP

27

81D6

NUT
