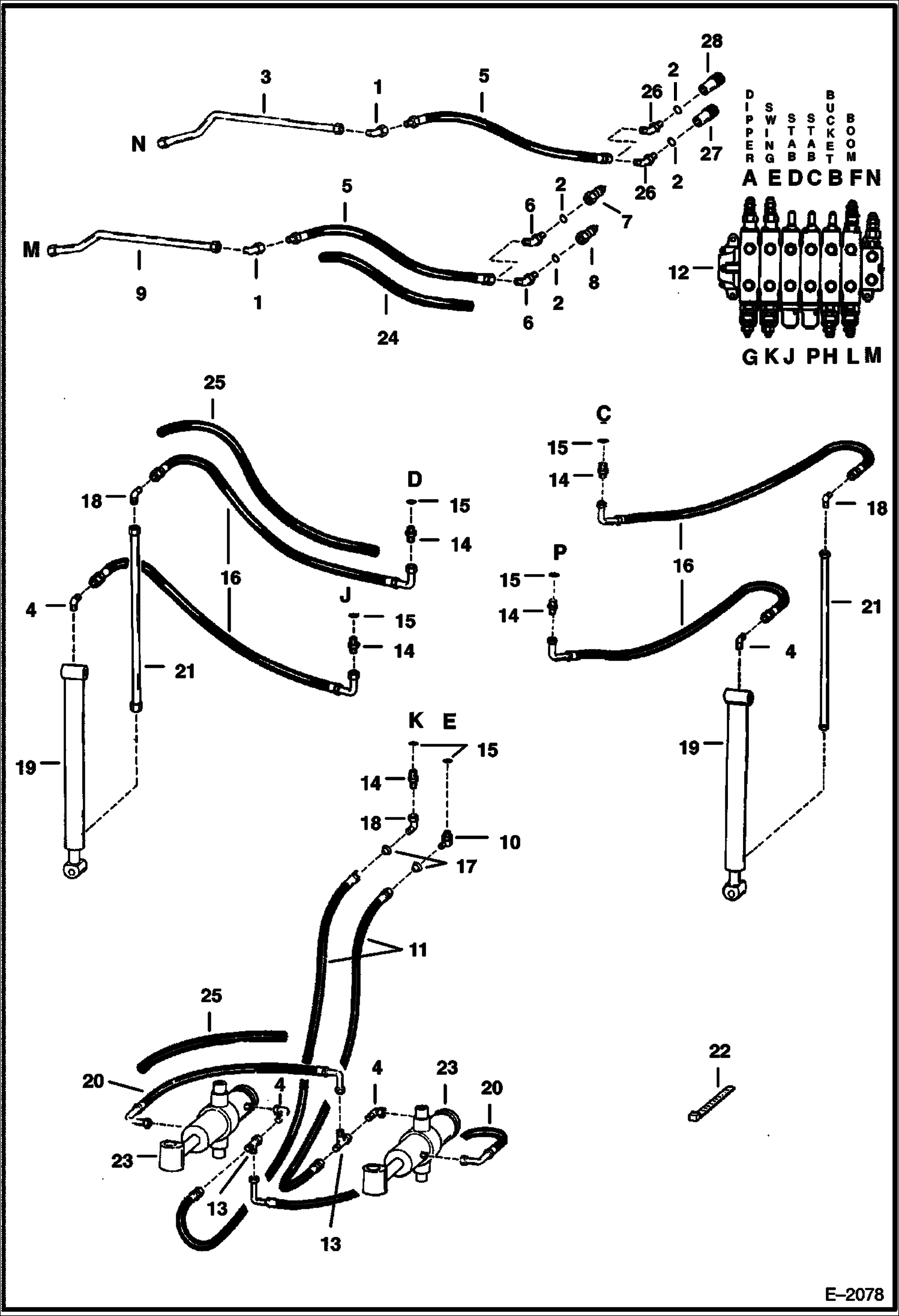

Запчасти Bobcat BACKHOE HYDRAULICS - MAIN FRAME 835S - S/NS 7850 & 9700 (1st 4 Digits) 835S BACKHOE

1

12K7

UNION

2

79K10

O RING 10

3

6538996

TUBE Hydraulic Circuitry

3

6539499

TUBE Hydraulic Circuitry

4

11K5

FITTING Flat boss face

4

ELBOW NLA - tapered boss face - Was 11KN00005B - A

4

97K6

O RING Flare End

5

6532194

HOSE See Illustration VALVE FLOW DIVIDER, HYDRAULIC CIRCUITRY/ C3272A Ref. 36

6

17K7

ELBOW W/Ref. 2

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

8

6598757

COUPLER, POPPET MALE straight

9

6538999

TUBE Hydraulic Circuitry

9

6539513

TUBE Less-Hydraulic Circuitry

10

6587727

ELBOW 455

11

6534636

HOSE

12

VALVE See Illustration VALVE CONTROL/ B24318C

13

13K5

TEE

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

6596801

HOSE Was 6534637 - A

17

6532775

ORIFICE .079 - .085 (2, 01 - 2,16mm)

18

12K5

ADAPTER Was 77F000005B - A

19

CYLINDER See Illustration CYLINDER STABILIZER/ C3101A STAB.

20

6533049

HOSE

21

6532311

TUBE

22

6610510

TIE Was 1715312B - A

23

CYLINDER See Illustration CYLINDER SWING/ B24327B SWING

24

6650108

HOSE COVER Bulk - Sold Per Foot

25

6649389

HOSE COVER Bulk - Sold Per Foot

26

17KB1012

FITTING, HYD ELBOW Was 1302104 - A

27

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

28

6674688

COUPLER, FF MALE straight - Was 6667808 - A
