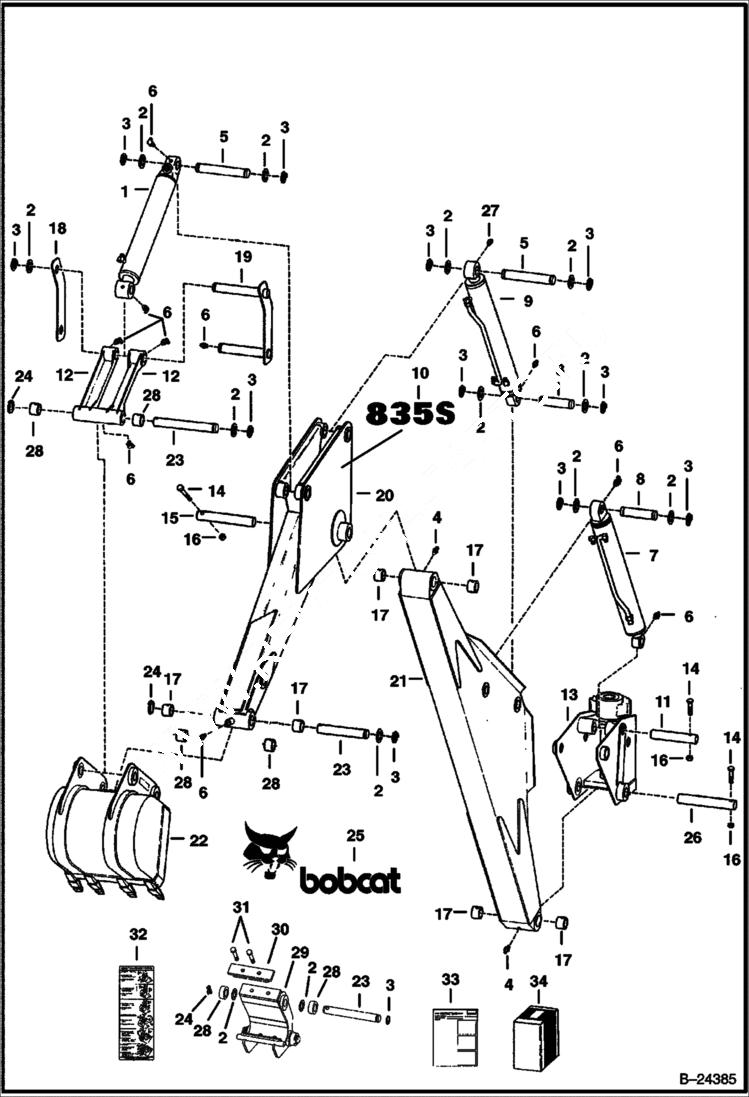

Запчасти Bobcat BACKHOE BOOM & DIPPERSTICK 835S - All Serial Nos 835S BACKHOE

1

CYLINDER See Illustration CYLINDER BUCKET/ C3236B See Illustration CYLINDER BUCKET/ NA2865A BUCKET

2

6584872

WASHER

3

22J24

RING SNAP Was 6538285 - B

4

12H15

FITTING, GREASE 5

5

6560349

PIN

6

10H25

FITTING, GREASE 5

7

CYLINDER See Illustration CYLINDER - BOOM/ B24393A See Illustration CYLINDER BOOM/ PE2514 BOOM

8

6560350

PIN

9

CYLINDER See Illustration CYLINDER - DIPPER/ B24393 See Illustration CYLINDER DIPPER/ PE2514A DIPPER

10

6539352

DECAL 835S

11

6560351

PIN

12

6716264

LINK, BUCKET MACHINED Also order (2) of Ref. 28 if using Standard Buckets - Was 6537182 - A

13

FRAME See Illustration SLIDE - SWING FRAME/ B24384 SWING - Ref. 24

14

17C648

BOLT 5

15

6533340

PIN

16

85D6

NUT, 5

17

6560334

BUSHING Press-in

18

7114802

LINK Was 6716262 - A

19

6716263

LINK Was 6532528 - A

20

6716257

ARM Also order (2) of Ref. 28 if using Standard Buckets - Was 6533346 - A

21

6533283

BOOM

22

BUCKET See Illustration BUCKETS BACKHOE/ B24394

23

6560401

PIN, PIVOT BUCKET

24

6560382

PIN, LOCK Ring Lock

25

6808545

DECAL Bobcat - R.H. - Was 6557412 - A

25

6808546

DECAL Bobcat - L.H. - Was 6557413 - A

26

6537746

PIN

27

12H15

FITTING, GREASE 5

28

6716402

SPACER

29

6714921

ADAPTER X-Change

30

6804485

PLATE

31

17C1052

BOLT

32

6806121

DECAL Bolt-on X-Change

33

6900862

INSTRUCTIONS

34

KIT SALES - bolt-on X-Change adapter - W/Ref. 29-33 - Sales #6806079
