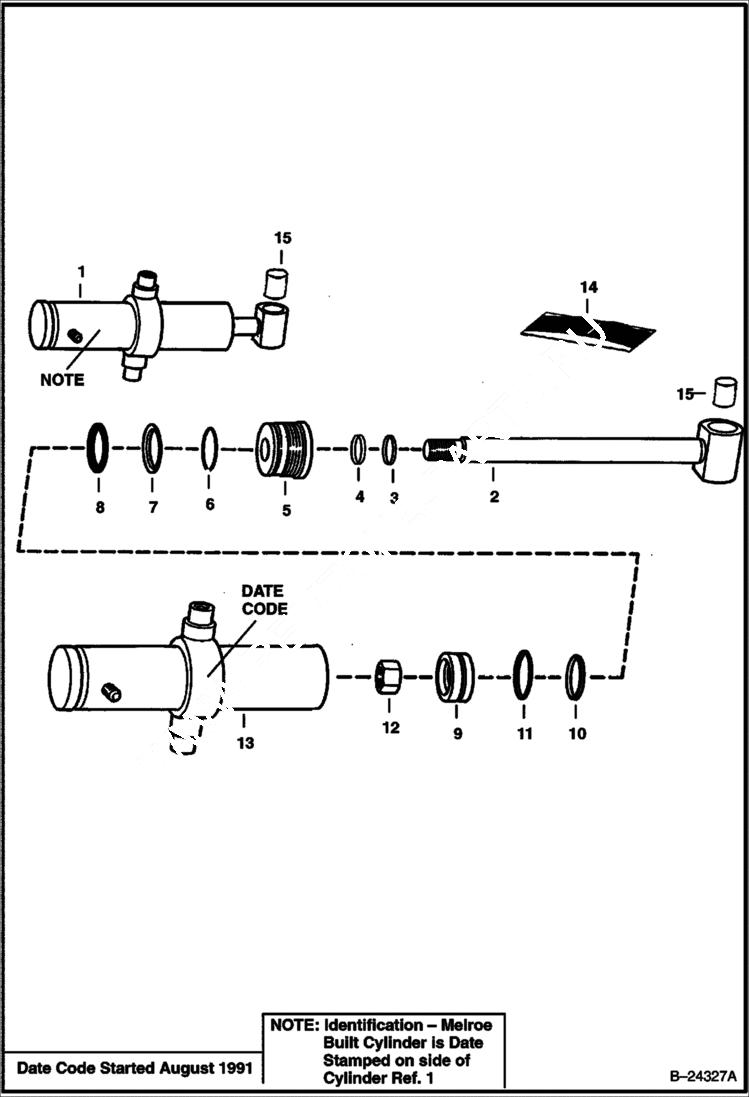

Запчасти Bobcat BACKHOE CYLINDER SWING - BOBCAT 730SH 730SH BACKHOE

1

7104246

CYLINDER W/Ref. 2-13, 15 - Was 6589651 - A

2

7104662

SHAFT W/Ref. 15 - Was 6538375 - A

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

6667326

SEAL Was 6538141 - A

5

6538367

HEAD, CYL TILT

6

58K234

O RING 10 Was 54K40300 - B

7

73K232

RING, BACK-UP Back-Up - Was 80K000232B - A

8

25K40224

O RING 10 Was 54K40224 - B

9

7104247

PISTON Was 6538380 - B

10

25K30218

O RING 10 Was 54K30218 - B

11

947088

RING, BACK-UP Was NSS - D

12

92D14

NUT Was 86D000014B - A

13

6589654

TUBE Was 6538379 - A

14

7135549

SEAL KIT Ref. 3, 4, 6-8 & 10-12 - Was 6803323 - A

15

6651449

BEARING

16

7008355

SEAL, QUAD
