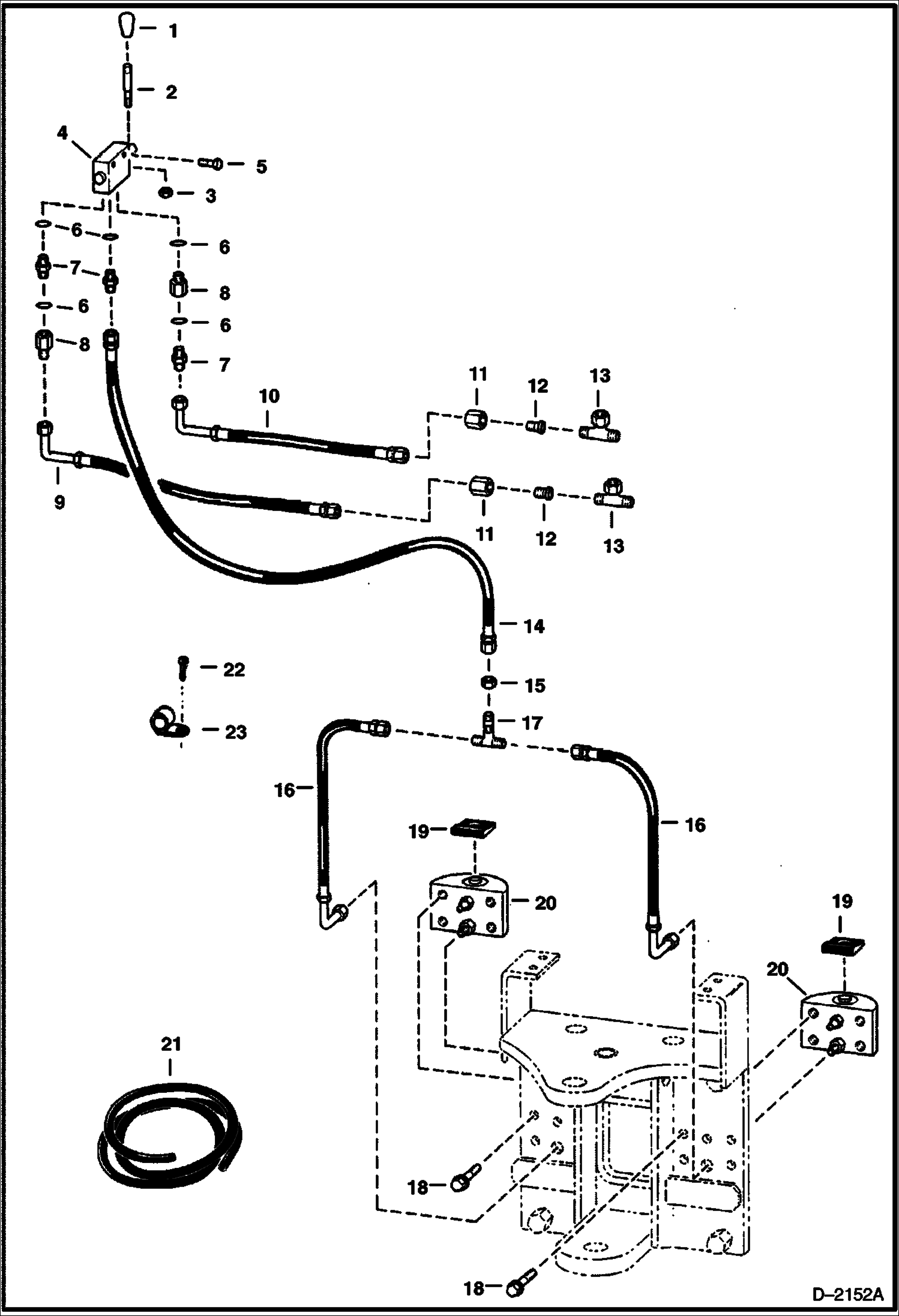

Запчасти Bobcat BACKHOE HYDRAULIC CLAMP SLIDE FRAME 730SH - S/N 646500499 & Below 730SH BACKHOE

1

6657271

KNOB

2

6538442

LEVER

3

81D5

NUT

4

VALVE See Illustration VALVE HYDRAULIC CLAMP/ B13644A HYDRAULIC CLAMP

5

17C512

BOLT 5

6

99K6

O RING For tapered boss face

6

79K6

O RING 10 For flat boss face

7

ADAPTER NLA - W/Ref. 6 - tapered boss face - Was 15KN00005B - A

7

15KB0606

FITTING, HYD CONNECTOR W/Ref. 6 - flat boss face

7

97K6

O RING Flare End

8

6659296

VALVE Check

8

79K5

O RING 10 Flare End

9

6538895

HOSE

10

6538896

HOSE

11

80F7

NUT

12

9K5

ADAPTER - 9KN5 - D

13

14K7

TEE See Illustration VALVE FLOW DIVIDER, HYDRAULIC CIRCUITRY/ B24372 Ref 40 - Was 14KN00007B - A

14

6806987

HOSE Was 6539284 - B

15

86F3

LOCKNUT

16

6539285

HOSE

17

90F3

TEE

18

31C1028

SCREW

19

6539226

PAD

20

CYLINDER See Illustration CYLINDER HYDRAULIC CLAMP/ B13645A HYDRAULIC CLAMP

21

6649389

HOSE COVER Bulk - Sold Per Foot

22

84G3710

SCREW

23

30H45

CLIP
