Запчасти Bobcat BACKHOE DIRECTIONAL VALVE, HYDRAULIC CIRCUITRY 730SH - S/N 646501001 & Above 730SH BACKHOE

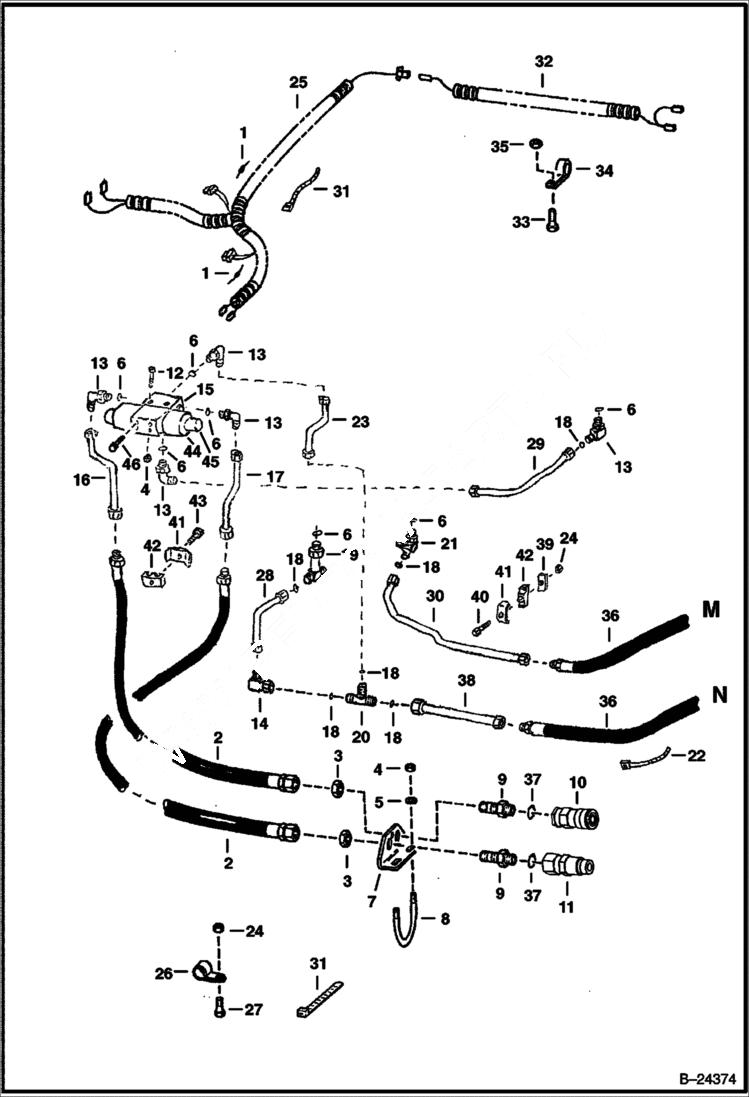

Схема запчастей Bobcat BACKHOE - DIRECTIONAL VALVE, HYDRAULIC CIRCUITRY 730SH - S/N 646501001 & Above 730SH BACKHOE

Артикул

Название

Примечание

Количество

1

3675725

DIODE

2

6806984

HOSE

3

86F7

LOCK NUT

4

81D5

NUT

5

25E15

WASHER

6

99K10

O'RING For tapered boss face

6

79K10

O RING 10 For flat boss face

7

6537312

PLATE

8

6537313

U-BOLT

9

6711625

FITTING

10

6672960

COUPLER, FF FEMALE straight

11

6674688

COUPLER, FF MALE straight

12

17C556

BOLT

13

ELBOW NLA - tapered boss face - Was 17KV00007B - A

13

17KB1010

FITTING, HYD ELBOW Flat boss face

14

ELBOW NLA - tapered boss face - Was 11KN00007B - A

14

11K7

ADAPTER Flat boss face

15

6687776

VALVE ASMBLY Directional - Was 6675941 - A

15

6688633

SEAL KIT

16

6807577

TUBELINE

17

6807578

TUBELINE

18

97K10

O-RING 10 For flared end

19

6808525

TEE

20

TEE NLA - tapered boss face - Was 10KN00007B - A

20

10K7

TEE Flat boss face

21

6811081

TEE

22

6624289

STRAP, TIE

23

6807571

TUBELINE

24

81D6

NUT

25

6807490

HARNESS

26

30H50

CLIP

27

35C612

BOLT

28

6807561

TUBELINE

29

6807572

TUBELINE

30

6807562

TUBELINE

31

6610510

TIE

32

6719823

HARNESS

33

17C412

BOLT 5

34

30H21

CLAMP 10

35

61D4

NUT 5

36

6532194

HOSE See Illustration HYDRAULICS - SWING & STABILIZER/ B24368 Ref. 5

37

79K12

O RING 10

38

6807575

TUBELINE

39

6553709

WASHER

40

17C628

BOLT

41

6502426

CLAMP

42

6577697

CLAMP Was 6701893 - B

43

84G3724

BOLT

44

6688651

COIL Does not include connector

44

6688653

CONNECTOR DIN Plug - not included w/coil

45

6688652

KIT Nut & O-Ring for coil

46

6688650

BOLT

Выбрано товаров: 52
