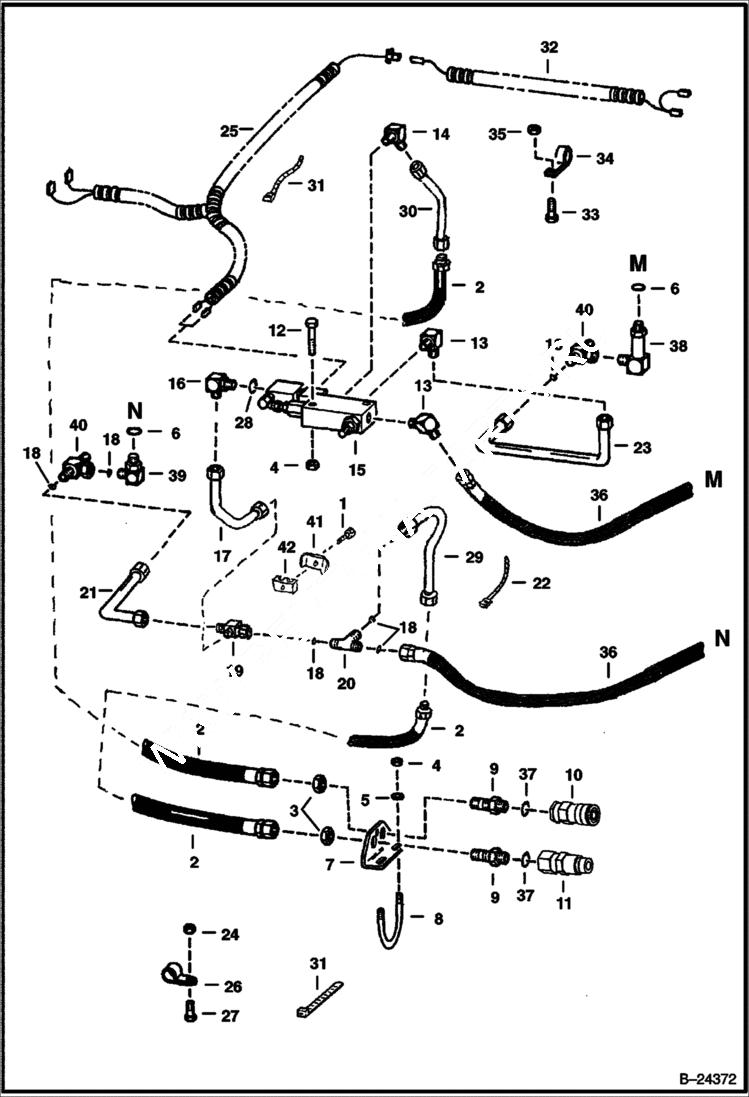

Запчасти Bobcat BACKHOE VALVE FLOW DIVIDER, HYDRAULIC CIRCUITRY 730SH - S/N 646500499 & Below 730SH BACKHOE

1

84G3724

BOLT

2

6806984

HOSE

3

86F7

LOCK NUT

4

81D5

NUT

5

25E15

WASHER

6

99K10

O'RING Tapered boss face

6

79K10

O RING 10 For flat boss face

7

6537312

PLATE

8

6537313

U-BOLT

9

6711625

FITTING

10

6672960

COUPLER, FF FEMALE straight

11

6674688

COUPLER, FF MALE straight

12

17C532

BOLT 5

13

6586321

ELBOW W/Sealant - Pipe Threads

13

17KB1008

FITTING, HYD ELBOW O-Ring boss threads

14

6586322

ELBOW W/Sealant - Pipe Threads

14

18KB1008

FITTING, HYD ELBOW O-Ring boss threads

15

VALVE See Illustration VALVE FLOW DIVIDER/ B13650A FLOW DIVIDER

16

17KB0606

FITTING Was 17KV00005B - A

16

97K6

O RING Flare End

17

6806549

TUBE

18

97K10

O-RING 10 Flare end

19

6535460

TEE

20

TEE NLA - tapered boss face - Was 10KN00007B - A

20

10K7

TEE Flat boss face

21

6806544

TUBELINE

22

6624289

STRAP, TIE

23

6806551

TUBELINE

24

81D6

NUT

25

6807059

HARNESS

26

30H50

CLIP

27

35C612

BOLT

28

99K6

O RING

29

6806573

TUBELINE

30

6806572

TUBELINE

31

6610510

TIE

32

6719823

HARNESS

33

17C412

BOLT 5

34

30H21

CLAMP 10

35

61D4

NUT 5

36

6534347

HOSE See Illustration HYDRAULICS - SWING & STABILIZER/ B24368 Ref. 5

37

79K12

O RING 10

38

6519195

ELBOW

39

ELBOW NLA - tapered boss face - Was 17KV00007B - A

39

17KB1010

FITTING, HYD ELBOW Flat boss face

40

14K7

TEE See Illustration HYDRAULIC CLAMP SLIDE FRAME/ D2152A Ref. 13 - Was 14KN00007B - A

41

6502426

CLAMP

42

6577697

CLAMP Was 6701893 - B
