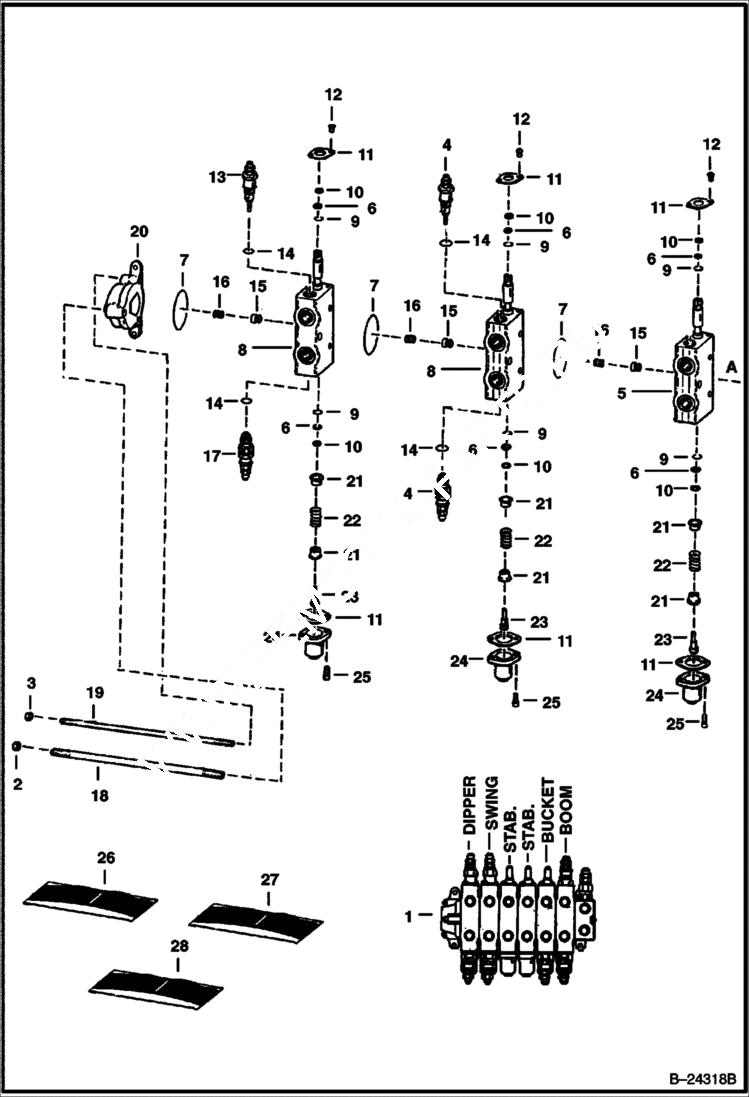

Запчасти Bobcat BACKHOE VALVE CONTROL 730SH - S/N 646500499 & Below 730SH BACKHOE

1

6662949

VALVE See Illustration VALVE CONTROL/ B24326A Ref. 2-19, 21- 25, 27-29, 30 - Husco 5000F-102 - W/Ref. 2-25 on this Illustration

2

62D6

NUT 5

3

61D5

NUT

4

6651867

RELIEF VALVE

5

6646687

SECTION Stabilizer - W/Ref. 6, 7, 9-12 15, 16, 21-25

6

WASHER NSS

7

6646691

O-RING

8

6646689

SECTION Bucket, Dipper & Swing - W/O Ref. 13, 14 - W/Ref. 6, 7, 9-12, 15, 16, 21-25

9

O-RING NSS

10

WIPER NSS

11

948016

PLATE

12

93G406

SCREW

13

6646679

RELIEF VALVE

14

961240

O-RING

15

6630965

POPPET

16

6630966

SPRING

17

6646701

RELIEF VALVE

18

6514392

TIE BOLT Tie

19

6514391

BOLT Tie

20

6651873

CAP End

21

948017

SEAT Spring

22

948018

SPRING

23

948191

CAPSCREW

24

948192

CAP

25

73G412

SCREW

26

6646695

SEAL KIT O-Rings & Back-Up Rings for Ref. 13 & 17

27

6646698

SEAL KIT Spool - W/Ref. 6, 9 & 10

28

6652870

SEAL KIT See Illustration VALVE CONTROL/ B24326A Ref. 7, 20, 26 & 31 - Complete - Includes Ref. 26 & 27 on this Illustration
