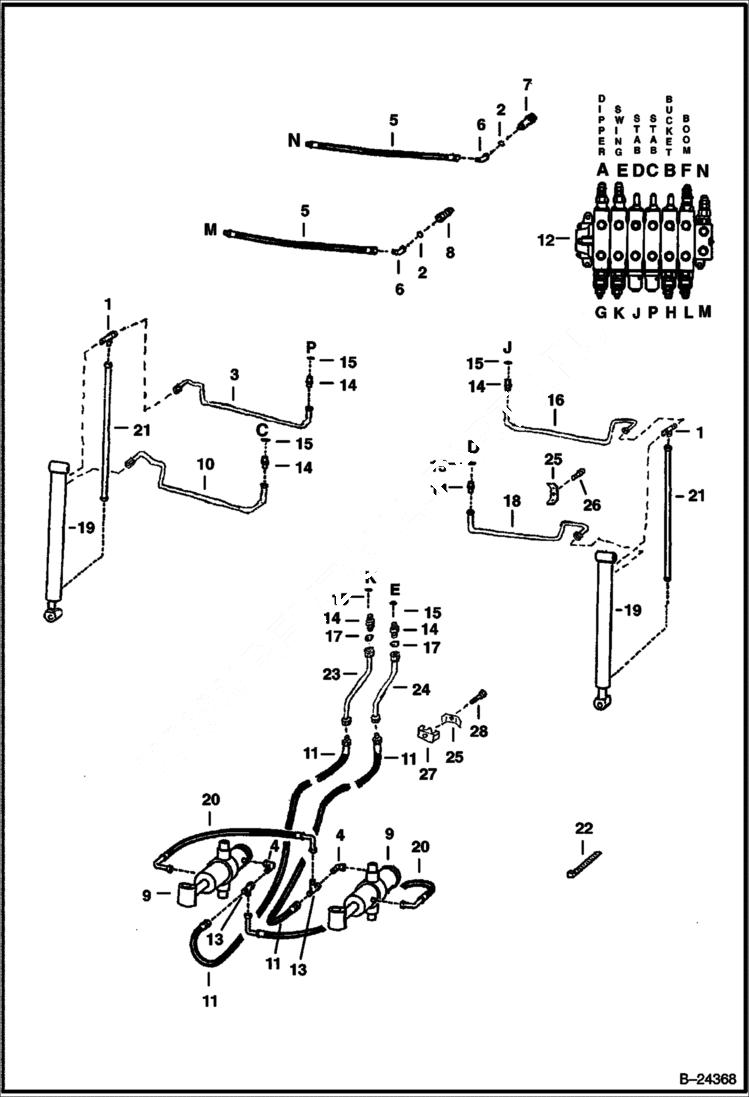

Запчасти Bobcat BACKHOE HYDRAULICS - SWING & STABILIZER 730SH 730SH BACKHOE

1

21KB0606

FTG HYD STRAIGHT TEE Was 21KV00005B - A

2

79K12

O RING 10

3

6806117

TUBELINE

3

6808569

TUBELINE

4

11K5

FITTING Flat boss face

4

ELBOW NLA - tapered boss face - Was 11KN00005B - A

4

97K6

O RING Flare End

5

6534347

HOSE See Illustration VALVE FLOW DIVIDER, HYDRAULIC CIRCUITRY/ B24372 Ref. 36

5

6532194

HOSE See Illustration DIRECTIONAL VALVE, HYDRAULIC CIRCUITRY/ B24373 Ref. 36

6

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

7

6672960

COUPLER, FF FEMALE straight

8

6674688

COUPLER, FF MALE straight

9

CYLINDER See Illustration CYLINDER SWING - BOBCAT/ B24327A SWING

10

6806114

TUBELINE

10

6808568

TUBELINE

11

6714477

HOSE, HYD ASSY

12

VALVE See Illustration VALVE CONTROL/ B24318B See Illustration VALVE CONTROL/ B24371 See Illustration VALVE CONTROL/ B24320A See Illustration VALVE CONTROL/ B24326A

13

13K5

TEE

14

743108

FITTING W/Ref. 15

15

79K8

O RING 10

16

6806182

TUBELINE

17

6532775

ORIFICE .079 - .085 (2,01 - 2,16mm)

18

6806181

TUBELINE

19

CYLINDER See Illustration CYLINDER STABILIZER WITH COUNTERBALANCE VALVE/ C5340B STABILIZER

20

6533049

HOSE

21

6589968

TUBELINE See Illustration CYLINDER STABILIZER WITH COUNTERBALANCE VALVE/ C5340B

22

6610510

TIE

23

6806328

TUBELINE

24

6806323

TUBELINE

25

6500989

CLAMP

26

35C510

BOLT

27

6578870

CLAMP

28

84G2516

BOLT
