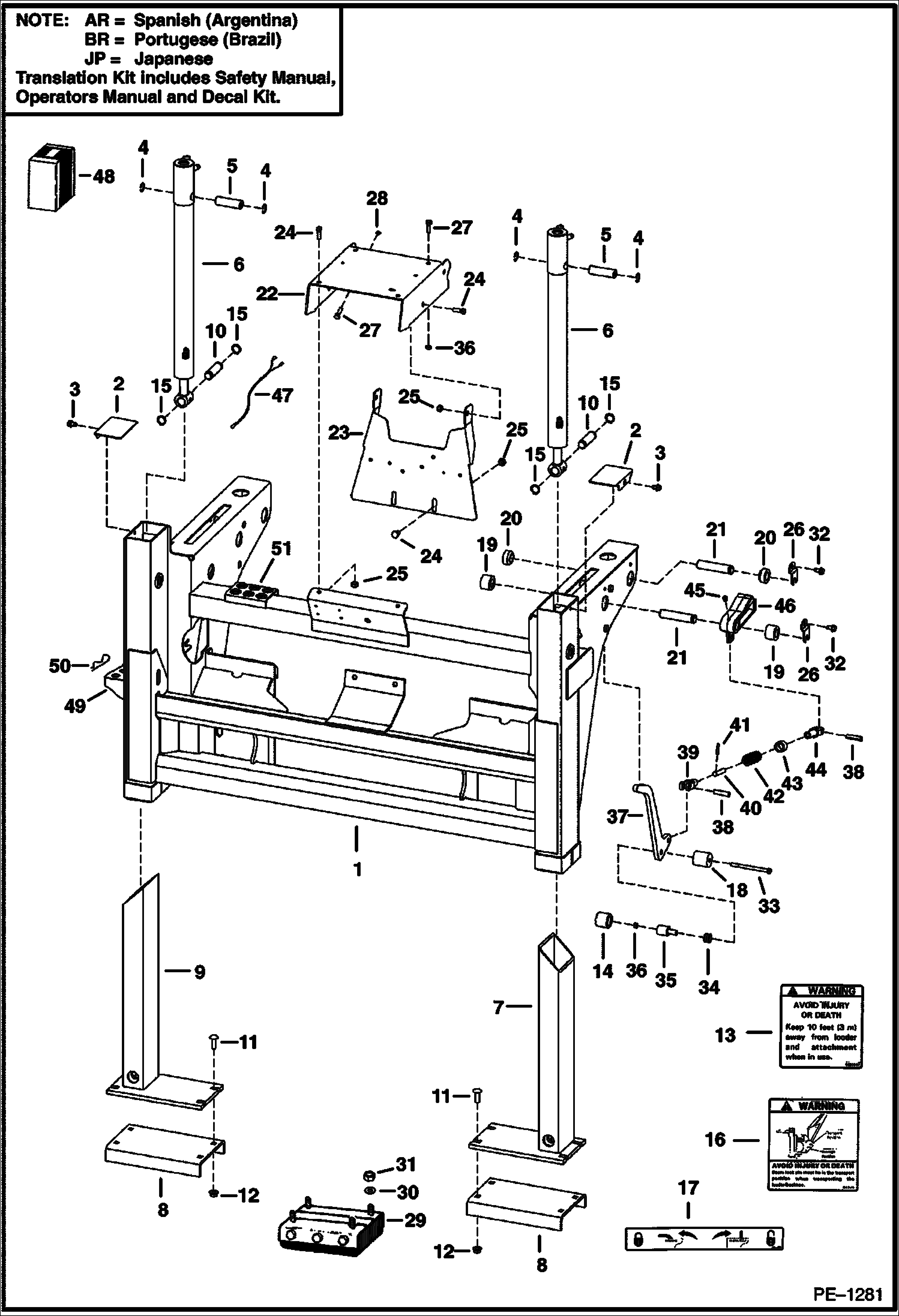

Запчасти Bobcat BACKHOE MAIN FRAME 730SH 730SH BACKHOE

1

6805531

MAIN FRAME

1

6808392

MAIN FRAME

2

6531973

CAP

3

84G3710

SCREW

4

23J16

SNAP RING Was 662770B - B

5

6560668

PIN

6

CYLINDER See Illustration CYLINDER STABILIZER WITH COUNTERBALANCE VALVE/ C5340B STABILIZER

7

6806441

STABILIZER L.H.

8

6531990

CLEAT

9

6806440

STABILIZER R.H.

10

6560669

PIN

11

37C820

BOLT Was 6529377 - A

12

55D8

NUT

13

6583862

DECAL, WARNING stabilizers

14

6586316

BUSHING

15

22J16

SNAP RING Was 1320431B - A

16

6533215

DECAL, WARNING Transport Warning

17

6535896

DECAL L.H. lock

17

6535897

DECAL R.H lock

18

6586323

BUSHING

19

6533176

BUSHING

20

6533177

BUSHING

21

6586308

PIN

22

6539017

CHANNEL

22

6807387

CHANNEL

23

6806317

CHANNEL

24

17C612

BOLT 5

25

85D8

NUT, 5 NUT

26

6586307

RETAINER

27

17C620

BOLT

28

7D6

NUT Nut

29

6660164

PAD Street

30

25E22

WASHER

31

61D8

NUT 5

32

84G3712

BOLT 5

33

17C680

BOLT

34

6704453

SPRING

35

6586315

PIVOT

36

85D6

NUT, 5

37

6805822

LEVER

38

14J5032

PIN, STRAIGHT

39

6533159

CLEVIS

40

6533158

ROD

41

14J2520

PIN

42

6578253

SPRING, COMPRESSION

43

6533160

BUSHING

44

6704248

PIVOT, WEDGE

45

10H25

FITTING, GREASE 5

46

6586377

STOP

47

6719823

HARNESS

48

6808768AR

KIT Translation - SEE NOTE

48

6808768BR

KIT Translation - SEE NOTE

48

6808771AR

KIT Decal - SEE NOTE

48

6808771BR

KIT Decal - SEE NOTE

48

6808771JP

KIT Decal - SEE NOTE

49

7232349

STEP, MFR Was 7138104 - A

50

6675029

PIN

51

6701943

STEP
