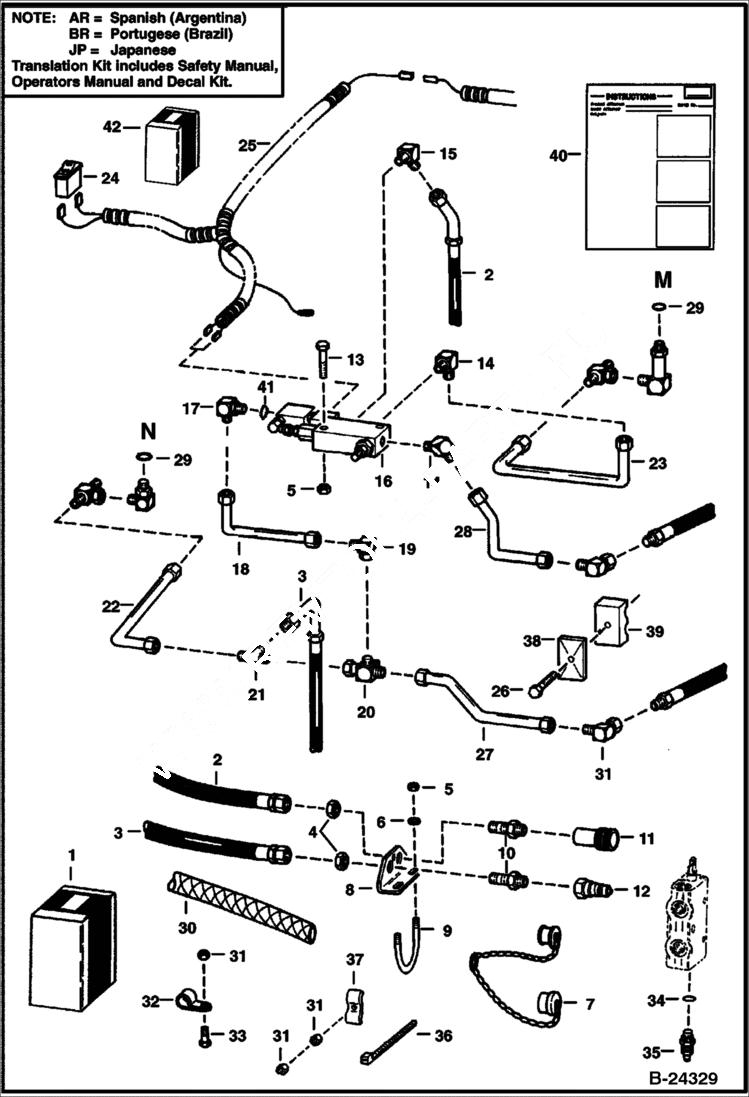

Запчасти Bobcat BACKHOE AUXILIARY HYDRAULICS KIT 730S 730S BACKHOE

1

KIT SALES - W/Ref. 2-40 - Sales #6586402

2

6539135

HOSE

3

6539134

HOSE

4

86F7

LOCK NUT

5

81D5

NUT

6

25E15

WASHER

7

6513709

CAP PLUG Assembly

8

6537312

PLATE

9

6537313

U-BOLT

10

45K7

CONNECTR

11

6598758

COUPLER, POPPET FEMALE straight

12

6598757

COUPLER, POPPET MALE straight

13

17C532

BOLT 5

14

6586321

ELBOW Pipe Threads

14

17KB1008

FITTING, HYD ELBOW O-Ring boss threads

15

6586322

ELBOW Pipe Threads

15

18KB1008

FITTING, HYD ELBOW O-Ring boss threads

16

VALVE See Illustration VALVE FLOW DIVIDER/ B13650 Assembly - Parts

17

17K5

ELBOW

17

17KB0606

FITTING Was 17KN00005B - A

17

99K6

O RING boss end - Was 98K6 - A

17

96K6

O-RING Flare End

18

6538997

TUBE

19

11K5

FITTING Flat boss face

19

ELBOW NLA - tapered boss face - Was 11KN00005B - A

19

97K6

O RING Flare End

20

6535460

TEE

21

10K7

TEE

22

6538995

TUBE

23

6538998

TUBE

24

6659360

SWITCH

25

6539589

HARNESS

26

17C520

BOLT 5

27

6538996

TUBE

28

6538999

TUBE

29

79K10

O RING 10

30

6656155

HOSE COVER bulk - sold per foot

31

81D6

NUT

32

30H50

CLIP

33

35C612

BOLT

34

961240

O-RING

35

6646680

RELIEF VALVE

36

6610510

TIE

37

6591804

CLAMP

38

6652521

PLATE

39

6655043

CLAMP

40

6539515

INSTRUCTIONS Mounting

41

79K6

O RING 10

42

6718777AR

KIT Translation - SEE NOTE

42

6718777BR

KIT Translation - SEE NOTE

42

6722050AR

INSTRUCTIONS Translated - SEE NOTE

42

6722050BR

INSTRUCTIONS Translated - SEE NOTE
